Gas Convection Oven
Gas Convection Oven
Gas Convection Oven

Gas Convection Oven

This commercial gas convection oven is made of durable stainless steel and is ETL certified, ensuring reliable performance for your customers. It features a solid-state temperature control system, automatic ignition, and a 60-minute timer, delivering consistent baking results even in high-volume commercial kitchens. Its efficient convection system guarantees fast and even baking, while its stackable design allows you to double your productivity without increasing your floor space.

Product Number: HSD-101G

Power: 48000BU

Voltage: 120V

Product Dimensions: 970*1150*1600 mm

Energy Type: Gas/Liquefied Petroleum Gas

Specifications Photo & Video

Specification Sheet

vocook-gas-convection-oven-hsd-lolg-spec-sheet-hsd-101g.pdf
Download

Manuals

manual-vocook-gas-convection-oven.pdf
Download

Specifications

Specification Details Specification Details

Model

HSD-101G

Temperature

150°C-500°C (66°F-260°F)

Product Name

Gas Convection Oven

Packaging Dimensions (L x W x H)

740*550*510 mm

Number of Shelves

10

Interior Dimensions (L x W x H)

740*550*510 mm

Material

Stainless Steel

Gas Options

Natural Gas/Liquefied Petroleum Gas

Total Output Power

 48000BU

Applications

Desserts, Cookies

Voltage

 120V/60Hz/1phase







48,000 BTU Commercial Gas Convection Oven

The HSD-101G boasts a gas heating output of 48,000 BTU, designed for restaurant cooking. The gas heating system works in conjunction with a convection fan to circulate hot air throughout the oven cavity.

The HSD-101G is ideal for everyday baking that requires a dedicated commercial gas oven.

Depending on the type of food and recipe requirements, this oven can be used for baking, roasting, and other cooking applications.

Gas Convection Oven

Gas Convection Oven



1. Procelainized enamel cavity finishing for easy cleaning.

2. Full view windows for easy control of the cooking process.

3. Double speed; 1/2 HP fan motor to meet demands for different food cooked inside.

4. 60 minutes, continuous-ring timer.

5. IIIuminator inside the chamber controlled by switch.

6. Triple-mounted pressure lock door design with turnbuckle assembly

7. Temperature range:150F-500-F(66°C-260°C)

8. Strong and robust angular legs for stability.

9. Removable front control panel

10. Key components have CSA/ETL certificate.

Gas Convection Oven

10-Rack Commercial Gas Convection Oven

The HSD-101G features a multi-rack design, providing flexible cooking capacity for commercial kitchens. This oven is equipped with 10 racks, and the rack spacing can be adjusted to suit different baking tray sizes and food requirements.



Temperature Range: The HSD-101G's temperature range is 150–500°F (66–260°C)

The adjustable temperature range allows operators to select the appropriate cooking temperature for different recipes and foods.

Applications:

• Baking

• Baking

• Pastry making

• Bread and baked products

• General commercial cooking

Actual cooking temperature and time should be selected based on the food, recipe, and operating conditions.



Natural Gas and LPG Options

The HSD-101G is available in either natural gas or liquefied petroleum gas (LPG) configurations.

Before ordering, please confirm the available gas type based on the destination market and local installation requirements.

For commercial kitchen projects, distributors and catering equipment suppliers can confirm the required gas configuration, electrical specifications, and installation conditions before production.



Model

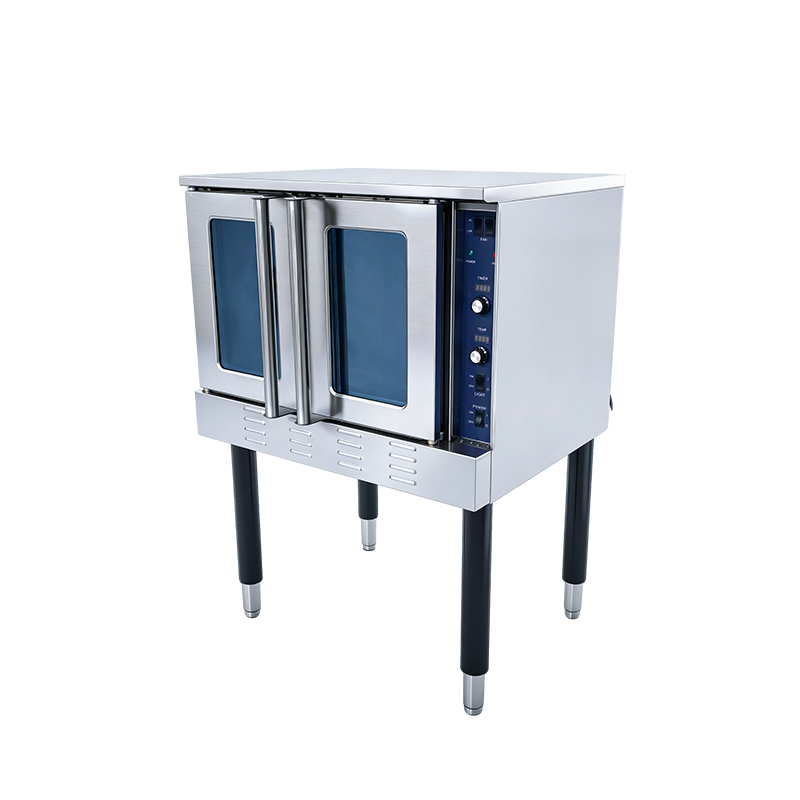

 Single layer movable convection oven

HSD-101E

Single layer movable convection oven

HSD-101G

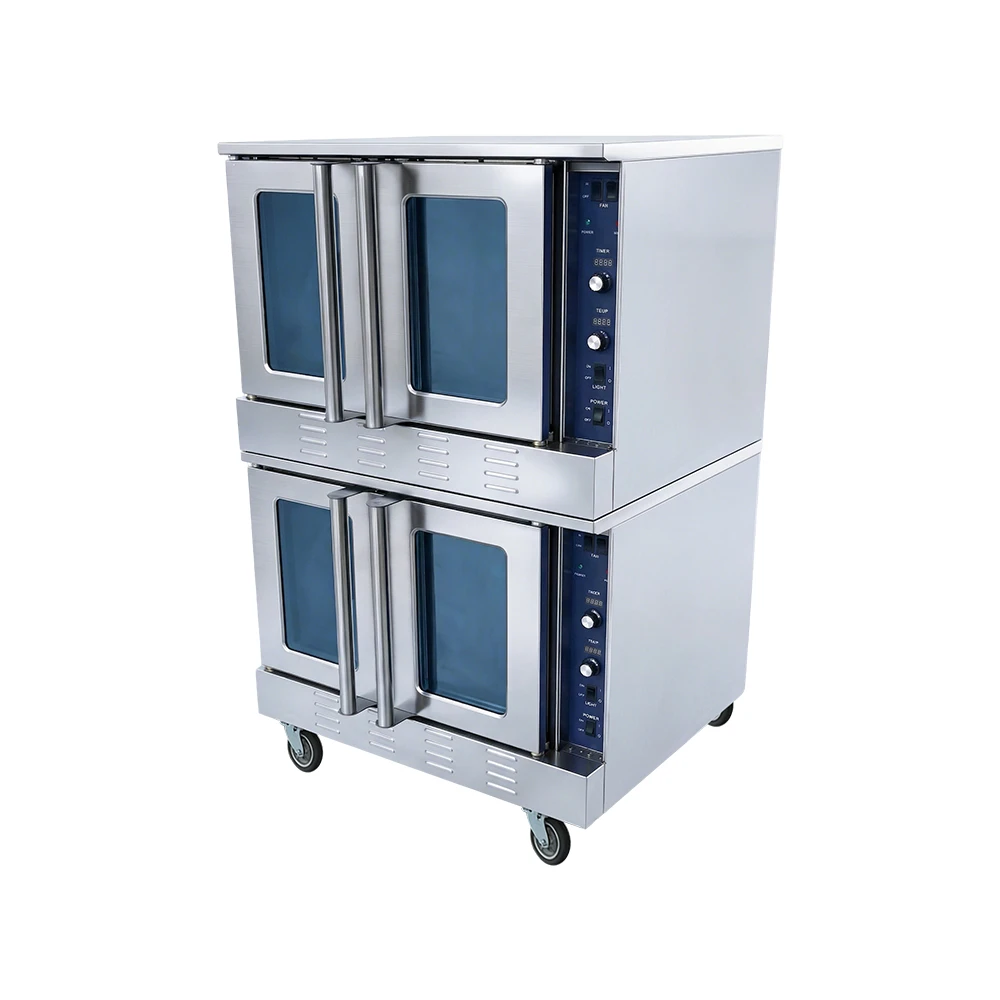

Single layer movable convection oven

HSD-102G

Item Name electric oven gas convection oven gas convection oven

Power

9-11.9 kw 480,000 BUT 480,000 BUT*2
Gas Supply Electricity Natural Gas(NG)
Liquid Propane(LP)
Natural Gas(NG)
Liquid Propane(LP)
Gas Inlet Pressure(NG)(LP) 4'' W.C.
10'' W.C.
4'' W.C.
10'' W.C.
4'' W.C.
10'' W.C.

Exterior Dimensions
(inch)W×D×H

38.19" x 44.49" x 61.81"

38.19" x 44.49" x 61.81" 38.19" x 45.27" x69.29"

Internal Vavity
(inch)W×D×H

29.13''×21.65'×20'' 29.13''×21.65'×20'' 29.13''×21.65'×20''

N.W.(lbs)

425 425

G.W.(lbs)

542 542
