Commercial gas fryer
Commercial Gas Deep Fryer (Side-Angle View)

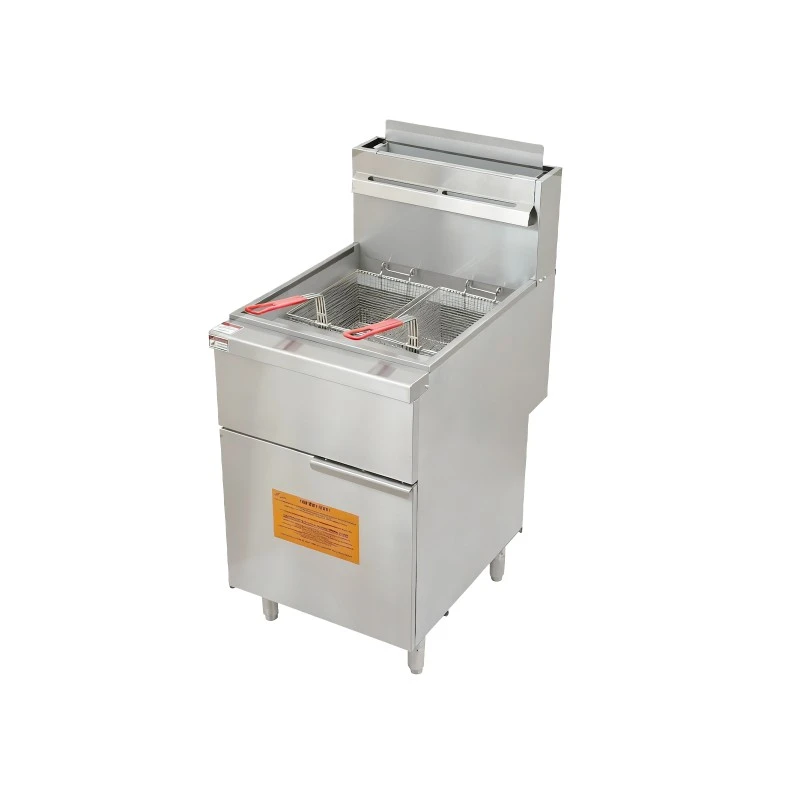

150,000 BTU Commercial Gas Fryer (Complete Unit)

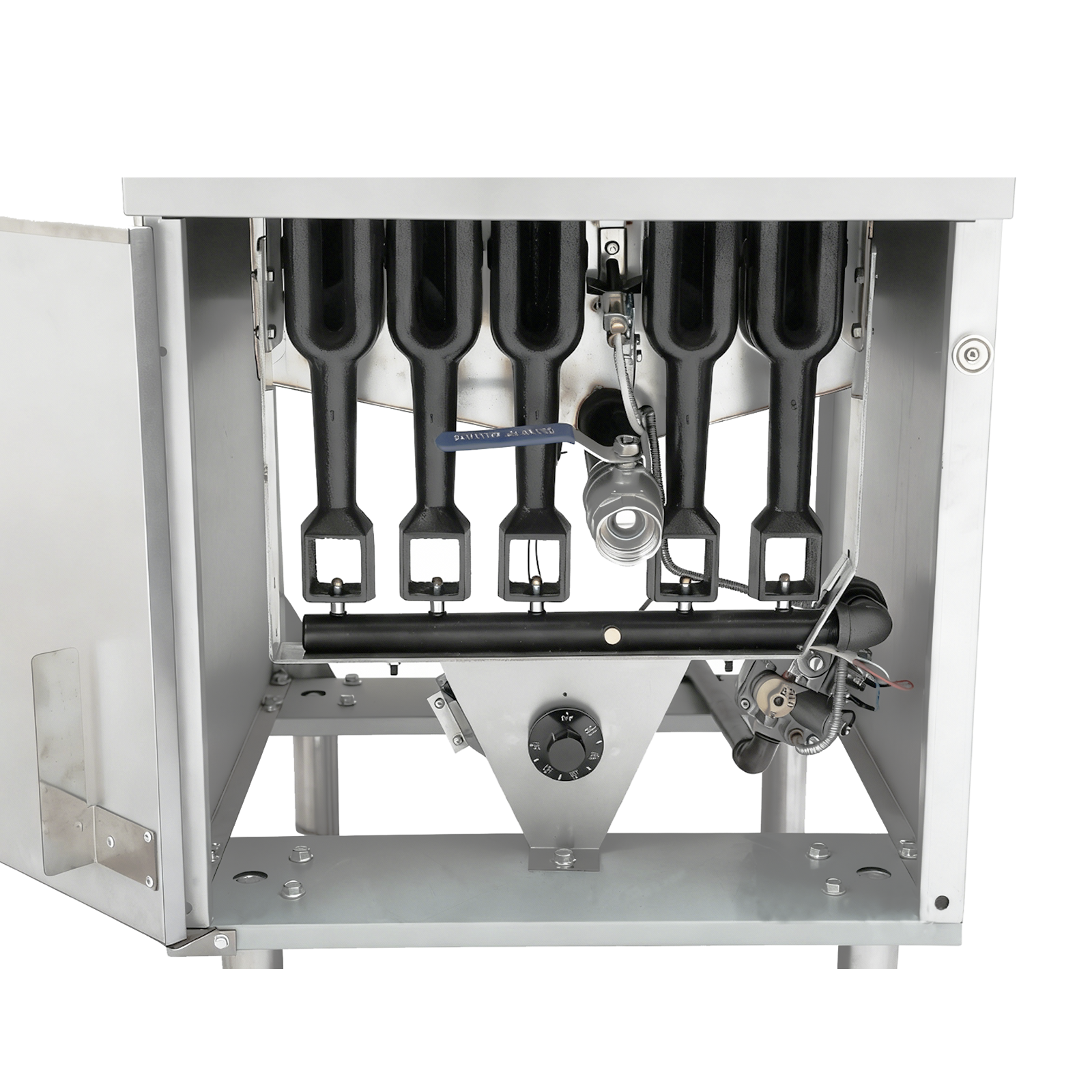

Internal burner tubes and structure of commercial gas deep fryer

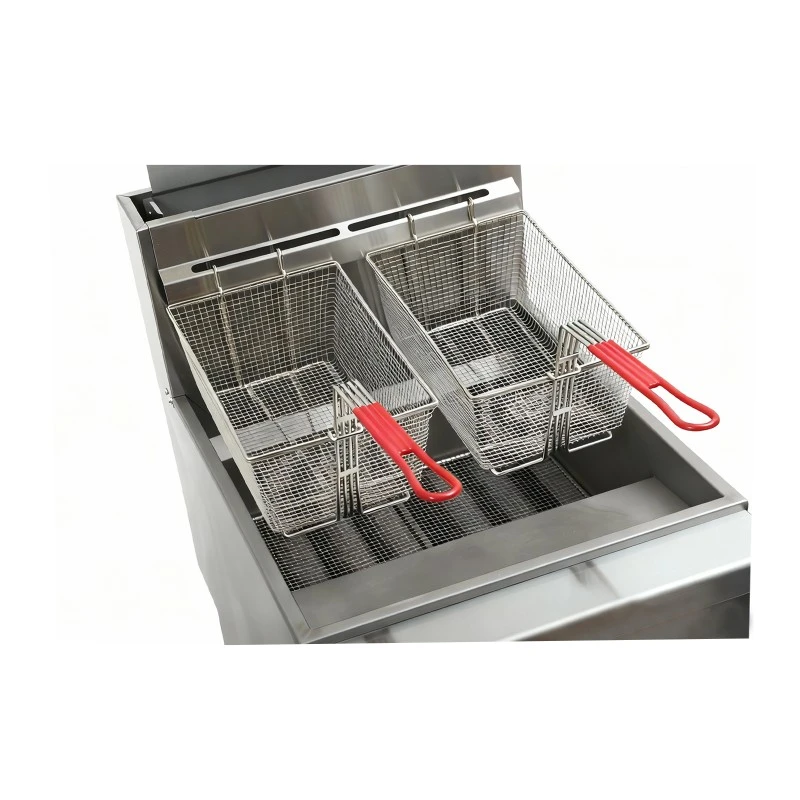

Deep-fryer tank and stainless steel fry basket

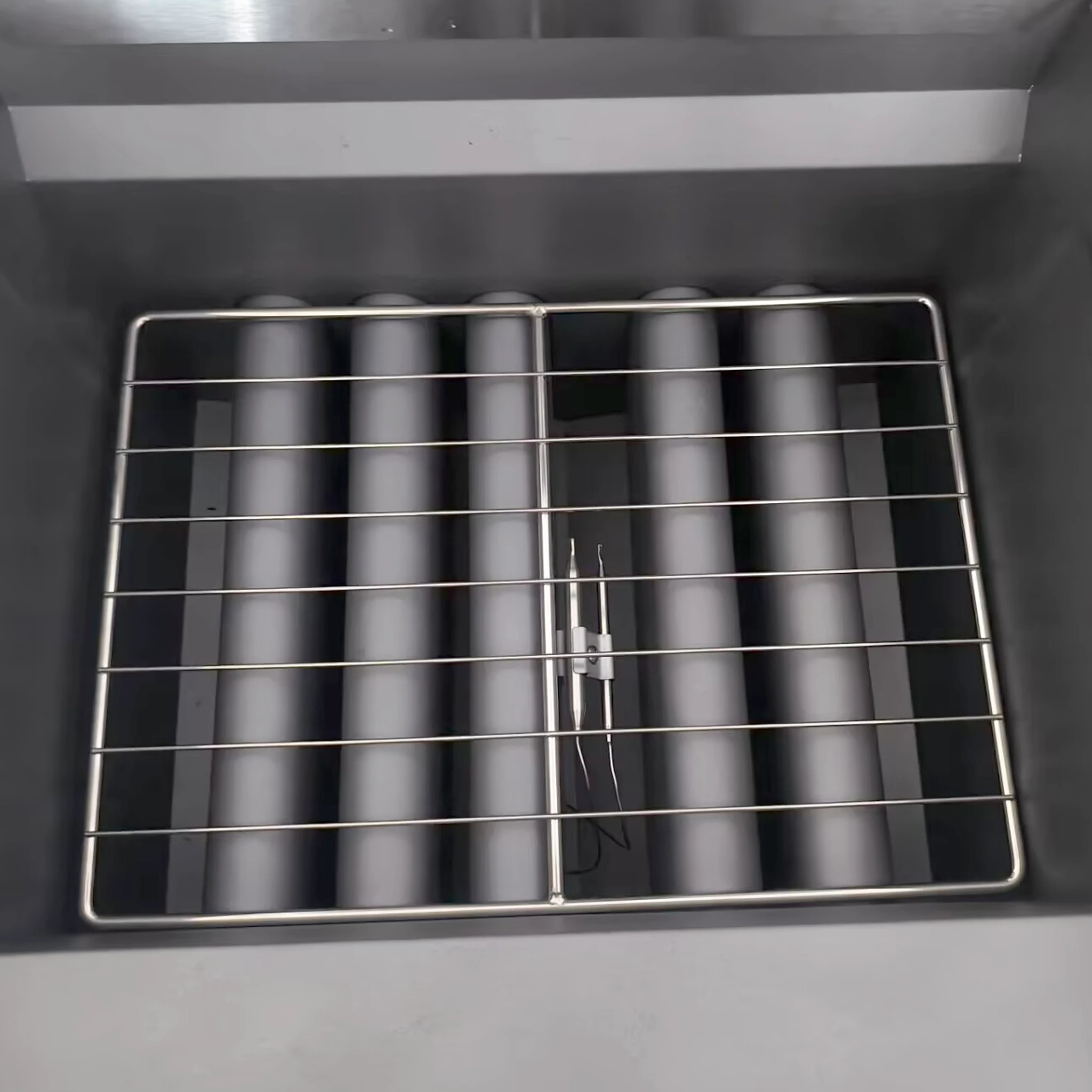

Deep-fryer tank and bottom heating grid

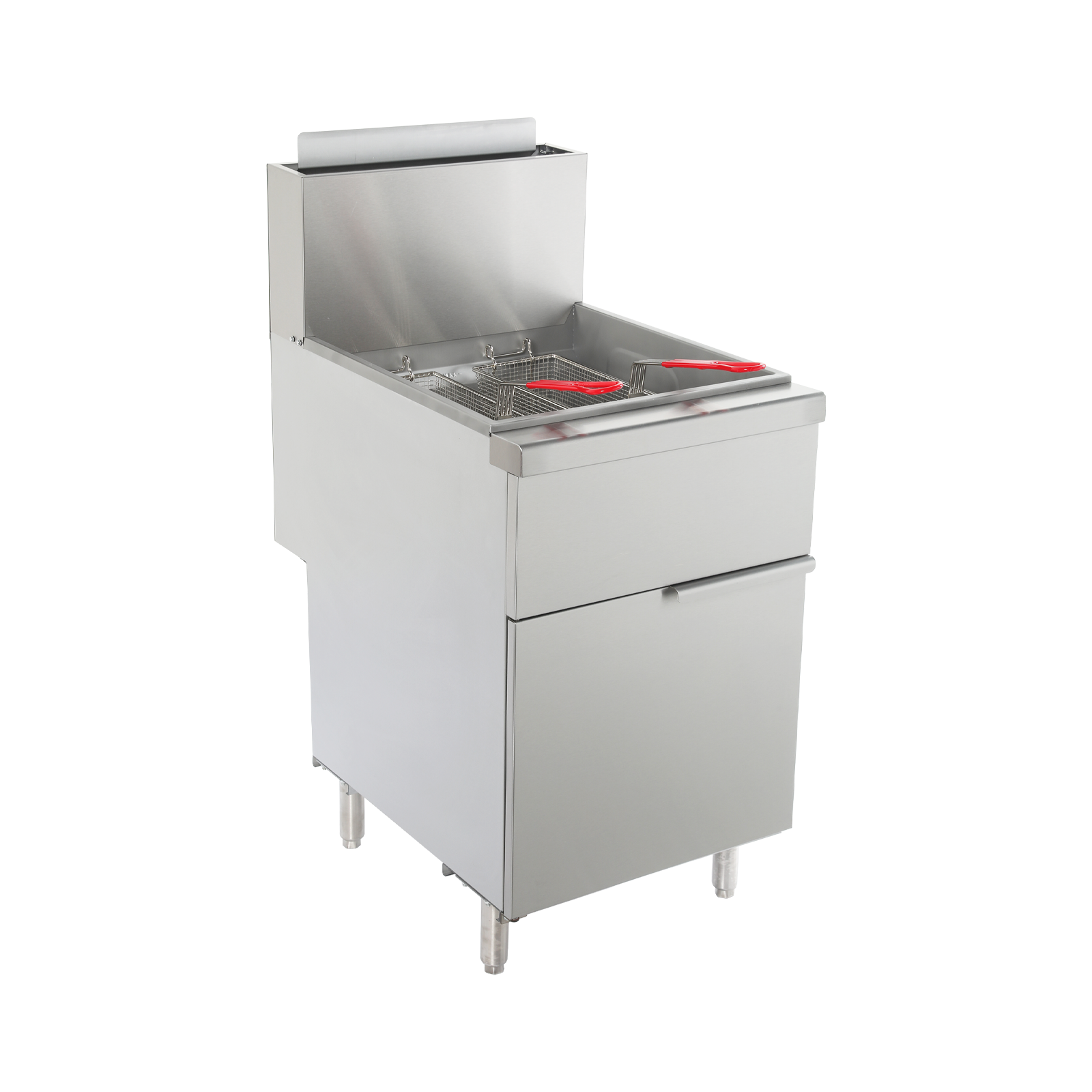

Commercial Single-Tank Gas Fryer - Front View
Commercial Gas Deep Fryer (Side-Angle View)
150,000 BTU Commercial Gas Fryer (Complete Unit)
Internal burner tubes and structure of commercial gas deep fryer
Deep-fryer tank and stainless steel fry basket
Deep-fryer tank and bottom heating grid
Commercial Single-Tank Gas Fryer - Front View

Commercial gas fryer

This gas-fired deep fryer features a high-performance 5-burner system and reliable Robert Shaw valves, delivering up to 150,000 Btu/hr. Its interior is constructed of durable stainless steel and is available in three models to meet your specific operational needs.

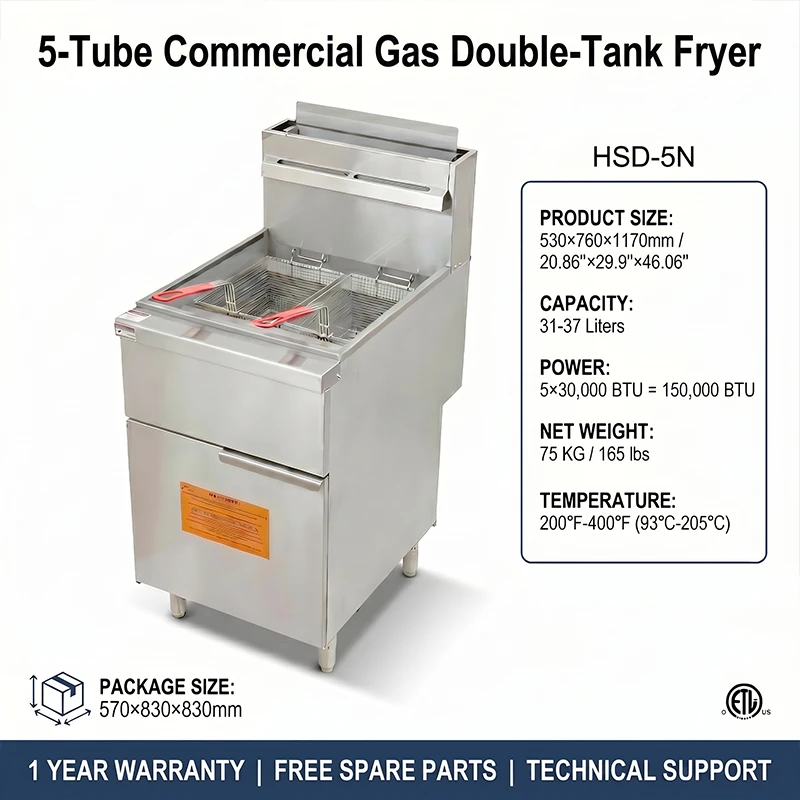

Product Number: HSD-5N

Capacity: 31-37 liters

Product Dimensions: 530*760*1170 mm / 20.86*29.9*46.06 inches

Energy Type: Gas/Liquefied Petroleum Gas

Number of Burners: 5

Specifications Photo & Video Model

Specification Sheet

vocook-gas-fryer-hsd-5n-spec-sheet.pdf
Download

Manuals

manual-vocook-gas-fryer.pdf
Download

Specifications

Specification

Details Specification Details

Model

HSD-5N

Packaging Dimensions (L x W x H)

570*830*830 mm

Product Name

Gas Fryer

Machine Dimensions (L x W x H)

530*760*1170 mm

Number of Burners

5

Gas Options

Natural Gas

Capacity

31-37 liters

Net Weight

165lbs

Material

Stainless Steel

Gross Weight 205lbs

Temperature

93°C-205°C (200°F-400°F)

Applications

Fried chicken, French fries, fried dough sticks

Valve Robertshaw Valve







37-liter commercial deep fryer equipped with Robert Shaw control system



The HSD-5N is a commercial gas-fired deep fryer with a power output of up to 150,000 BTU, designed for high-volume food service settings such as restaurants, fried chicken shops, and catering kitchens. Equipped with a five-tube burner system and Robertshaw valves, this commercial gas-fired deep fryer offers a highly efficient frying solution with a capacity of 31–37 liters. Its stainless steel construction can withstand the harsh environments of commercial kitchens, and its adjustable frying conditions, ranging from 93–205°C (200–400°F), cater to the needs of various foods. Three models are available to meet your specific operational requirements.

Commercial gas fryer

GAS FRYEY

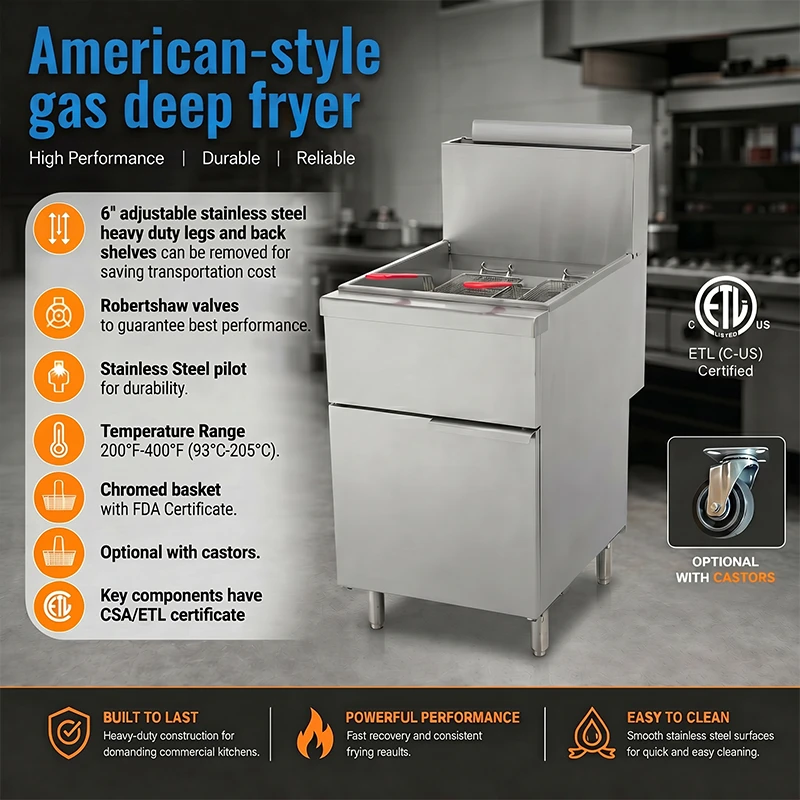

● Vertical cast iron burners, 30,000 BTU/hour per burner

● Stainless steel oil tank, available in 3 models

● Tubular design with internal baffles for improved heat transfer efficiency

● Continuous ignition device for easy main flame ignition

● Chrome-plated frying basket with plastic-coated handle

● Large cooling zone to prevent food residue from burning at the bottom

● Robertshaw control system for optimal performance

● Rapid temperature recovery for crispy fries

● Enlarged drain valve for easy oil drainage

● Adjustable temperature controller from 93ºC-200°F to 204ºC-400°F (with high-temperature limiter) for safety

● 6-inch adjustable heavy-duty stainless steel legs

● Optional casters



Commercial Gas-Fired 5-Tube Deep Fryer, 150,000 BTU, equipped with a Robertshaw control system

CSA/ETL Certified Commercial Gas Fryer

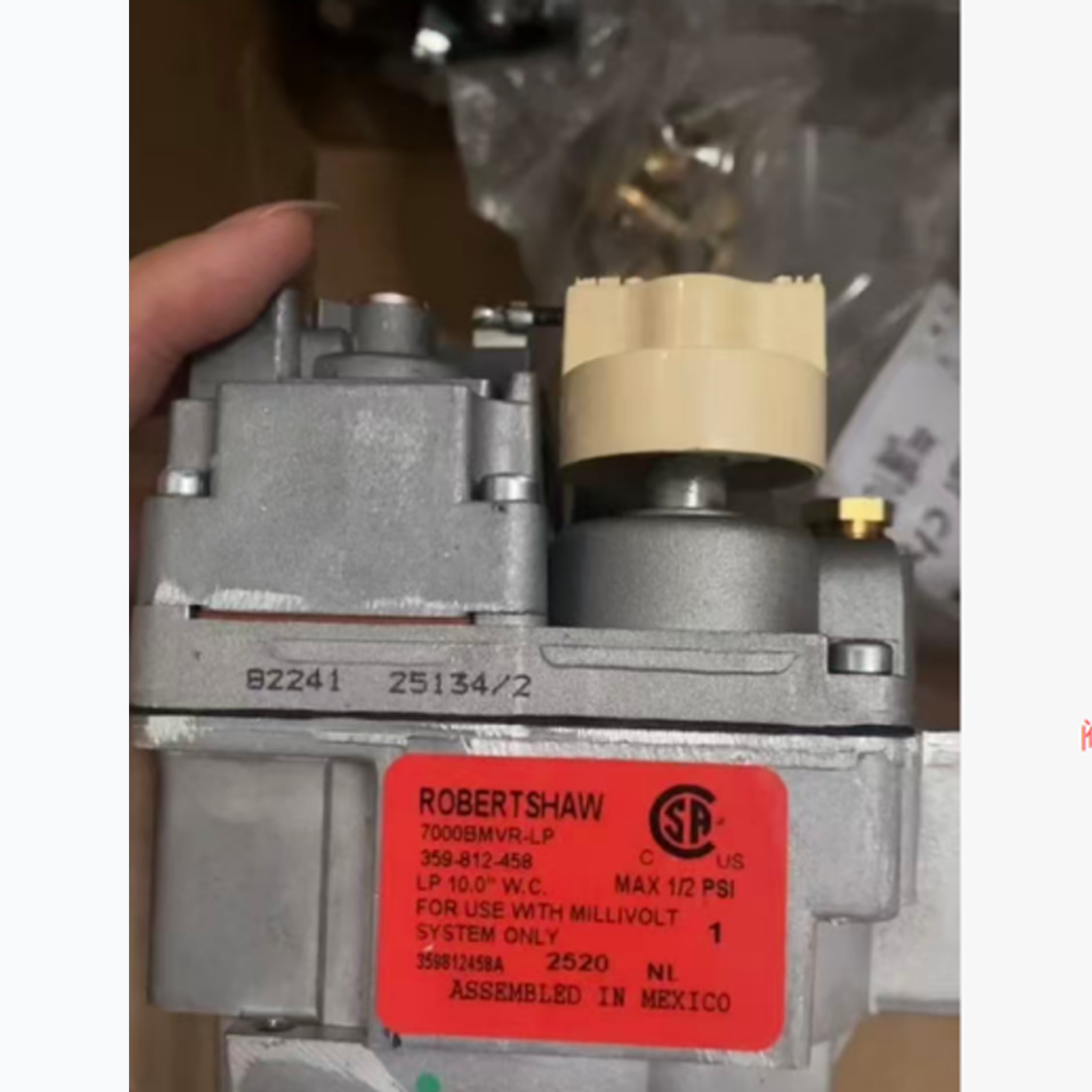

This gas fryer uses a Robertshaw 7000BMVR-LP burner valve. This high-quality burner valve provides consistent and stable combustion output and is CSA certified.

It is a key component of the fryer's burner assembly, ensuring safe operation.

Commercial Gas-Fired 5-Tube Deep Fryer, 150,000 BTU, equipped with a Robertshaw control system

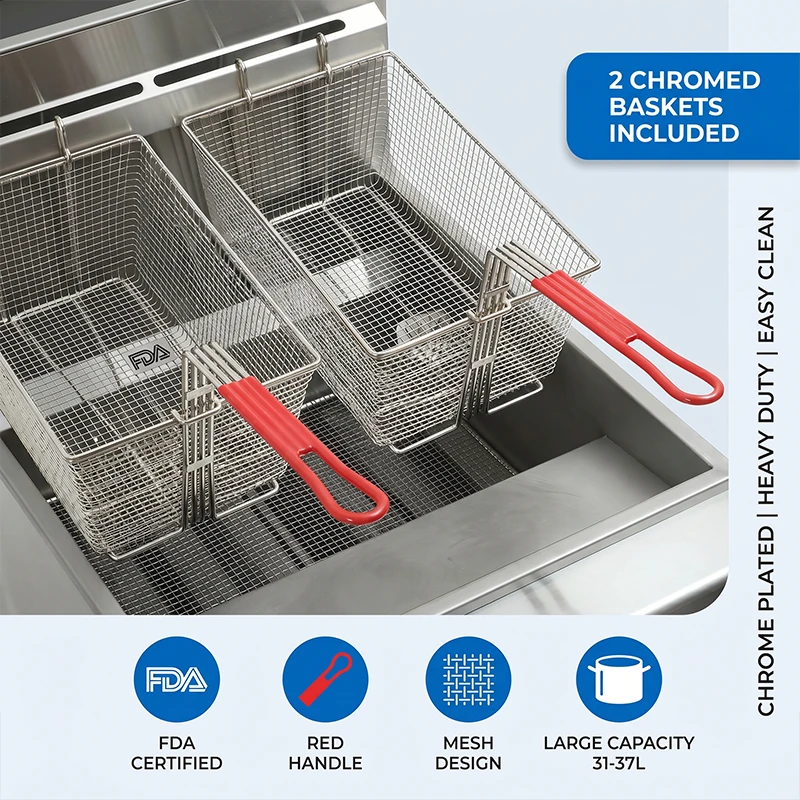

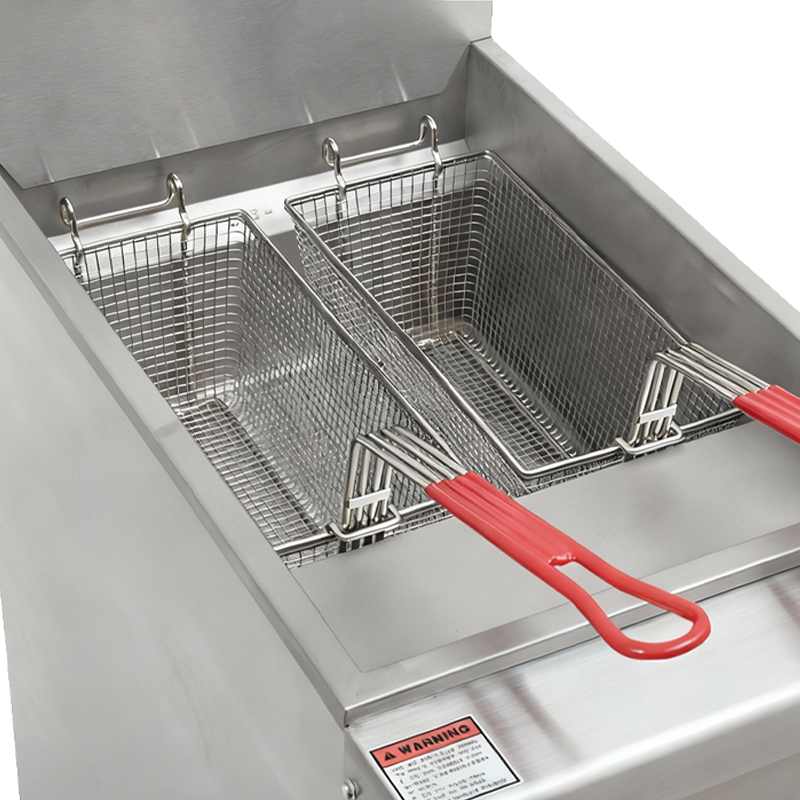

FDA‑Certified Chromed Frying Baskets

Comes with durable chrome‑plated frying baskets with comfortable heat‑proof red handles. All baskets pass FDA food‑safe certification, safe for direct contact with fried food like fries, chicken wings, onion rings and doughnuts.

Commercial Gas-Fired 5-Tube Deep Fryer, 150,000 BTU, equipped with a Robertshaw control system

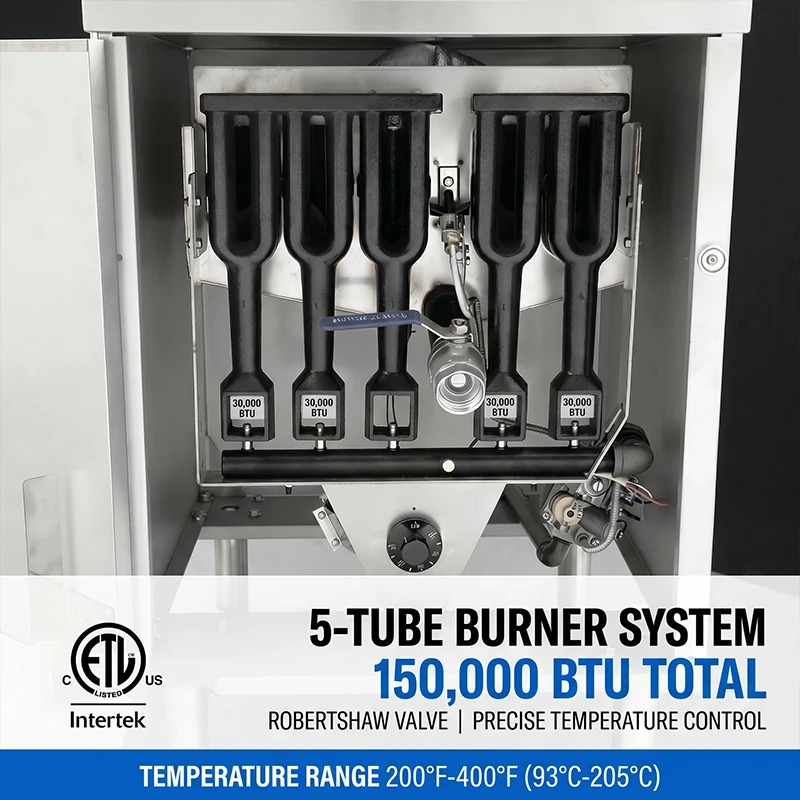

Cast Iron Burners with Drain Valve

Five heavy-duty cast iron burners evenly distribute heat throughout the oil tank, significantly improving heating speed and enabling rapid batch cooking.

Equipped with a drain valve and drain pipe, it forms an efficient grease management system, allowing kitchen staff to quickly and easily dispose of waste oil. This thoughtful design simplifies cleaning and makes the entire process more convenient and efficient.

Built to withstand non‑stop daily heavy‑duty work, our commercial gas deep fryer balances powerful heating performance, food‑safe material, safe gas system and flexible custom‑built accessories. Ideal for fast‑food restaurants, snack shops, cafeterias, diners and catering businesses




Model

 Commercial Gas-Fired Four-Tube Deep Fryer, 120,000 BTU, Equipped with a Robertshaw Control System

HSD-3N

Commercial Gas-Fired Four-Tube Deep Fryer, 120,000 BTU, Equipped with a Robertshaw Control System

HSD-4N

Commercial Gas-Fired Four-Tube Deep Fryer, 120,000 BTU, Equipped with a Robertshaw Control System

HSD-5N

Commercial Gas-Fired Four-Tube Deep Fryer, 120,000 BTU, Equipped with a Robertshaw Control System

HSD-3P

Commercial gas fryer

HSD-4P

Commercial Gas-Fired Four-Tube Deep Fryer, 120,000 BTU, Equipped with a Robertshaw Control System

HSD-5P

Burners

3

4

5

3 4 5

Power

90,000 BTU 120,000 BTU 150,000 BTU 90,000 BTU 120,000 BTU 150,000 BTU
Gas Supply Natural gas Natural gas

Natural gas

Propane Propane Propane

Manifold Pressure

4'' W.C 4'' W.C 4'' W.C 10'' W.C 10'' W.C 10'' W.C

ExteriorDimensions
(inch)W×D×H

15.55" x 29.9" x 46.06"

15.55" x 29.9" x 46.06" 15.55" x 29.9" x 46.06" 15.55" x 29.9" x 46.06" 15.55" x 29.9" x 46.06" 15.55" x 29.9" x 46.06"

BasketDimensions
(inch)W×D×H

6.5''×13.2'×5.9'' 6.5''×13.2'×5.9'' 9.3''×13.2'×5.9'' 6.5''×13.2'×5.9'' 6.5''×13.2'×5.9'' 9.3''×13.2'×5.9''

N.W.(lbs)

125 145 165 125 145 165

G.W.(lbs)

145 163 205 145 163 205
