Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate
Countertop Gas Hot Plate

Countertop Gas Hot Plate

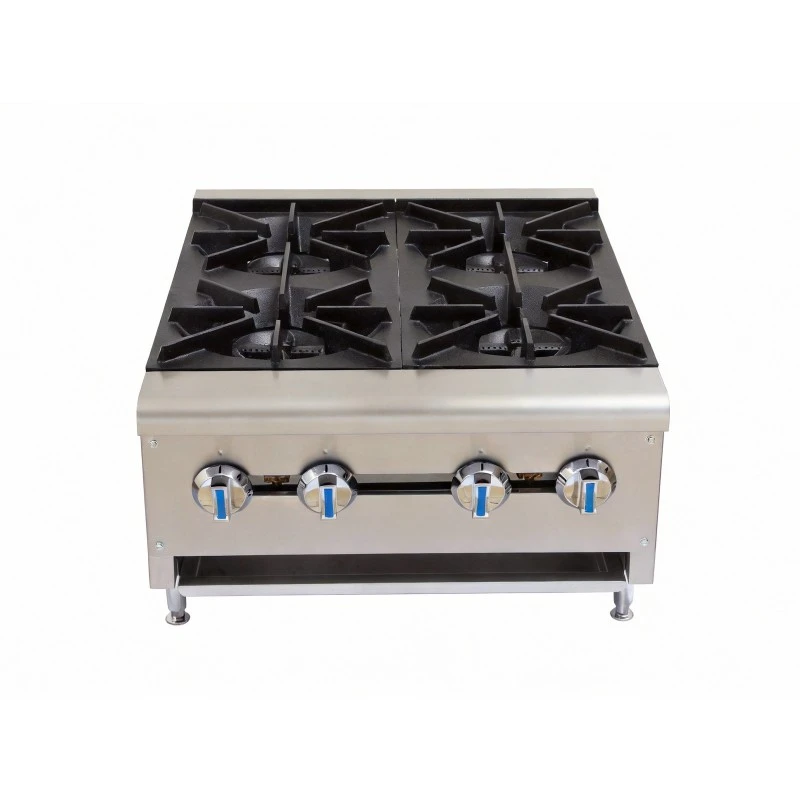

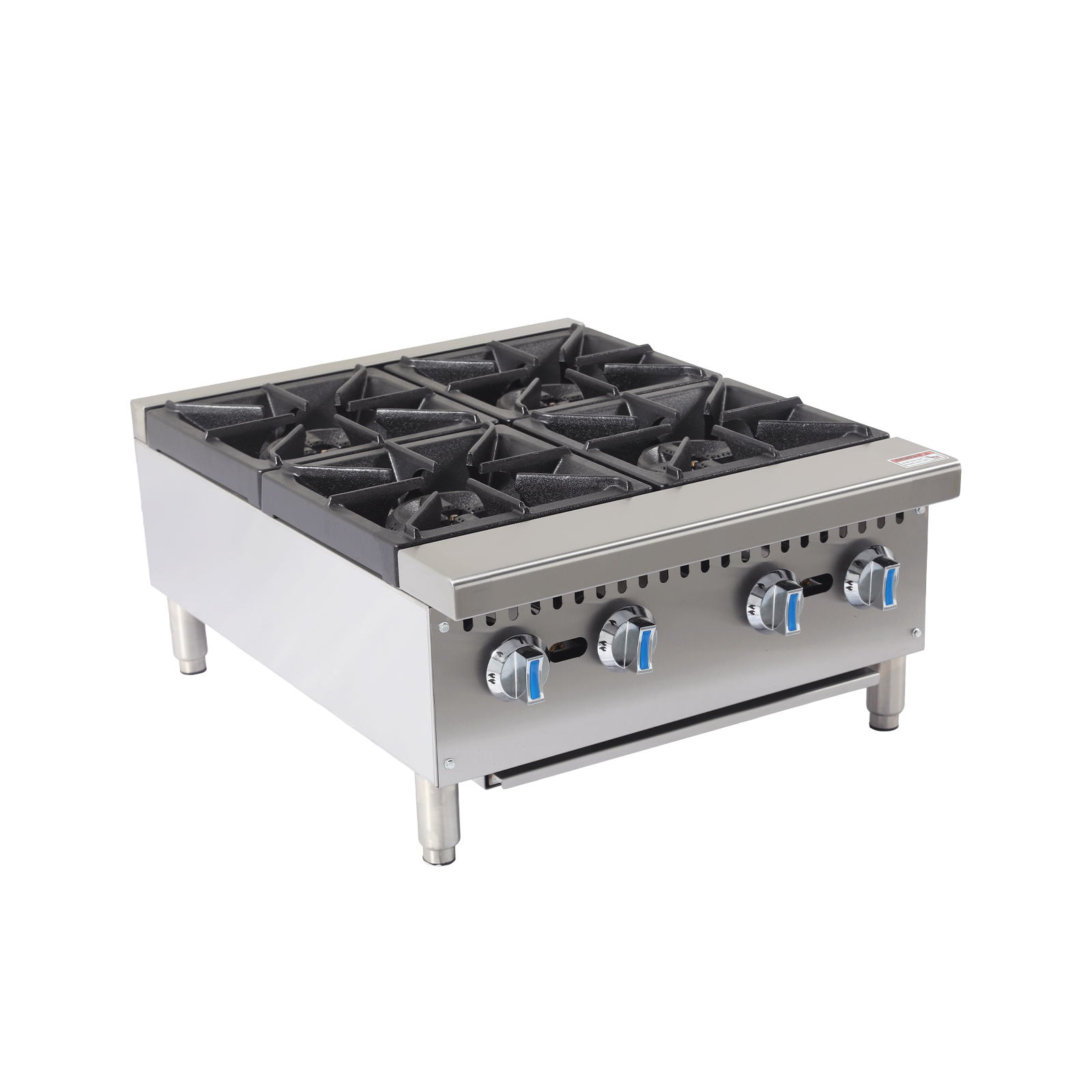

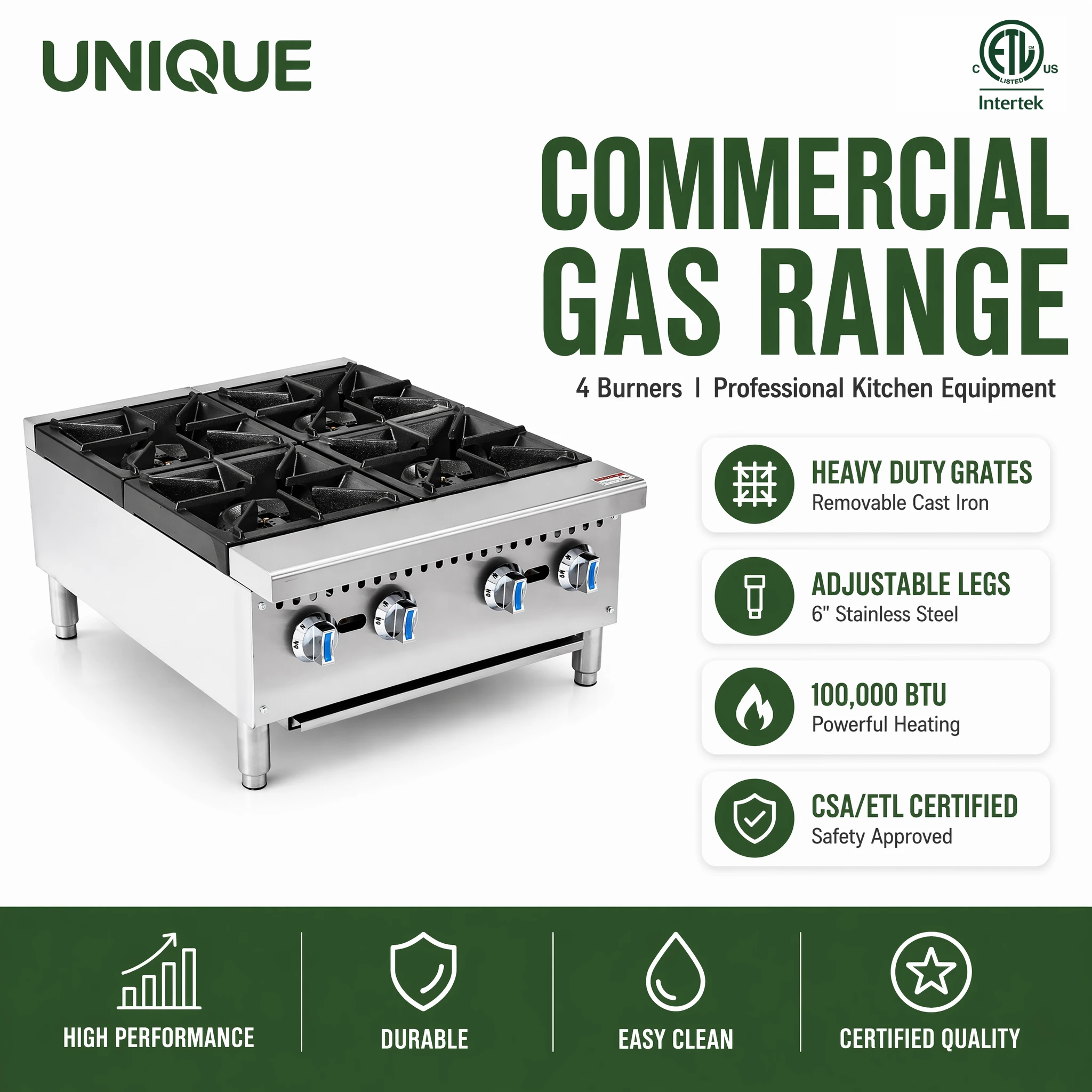

This commercial gas cooktop features four powerful burners, each with a heat output of 25,000 BTU/hour. The cast iron grates are 12 inches x 12 inches and are removable for easy cleaning. A stainless steel pull-out crumb tray is located beneath the burners to collect spilled food scraps.

Model: HSD-BG-4

Number of burners: 4

Power: 4 x 25,000 BTU

Product dimensions: 610 x 795 x 340 mm

Fuel type: Natural gas

Specifications Photo & Video

Specification Sheet

vocook-gas-hot-plate-hsd-bg-4-spec-sheet.pdf
Download

Manuals

manual-vocook-gas-hot-plate.pdf
Download

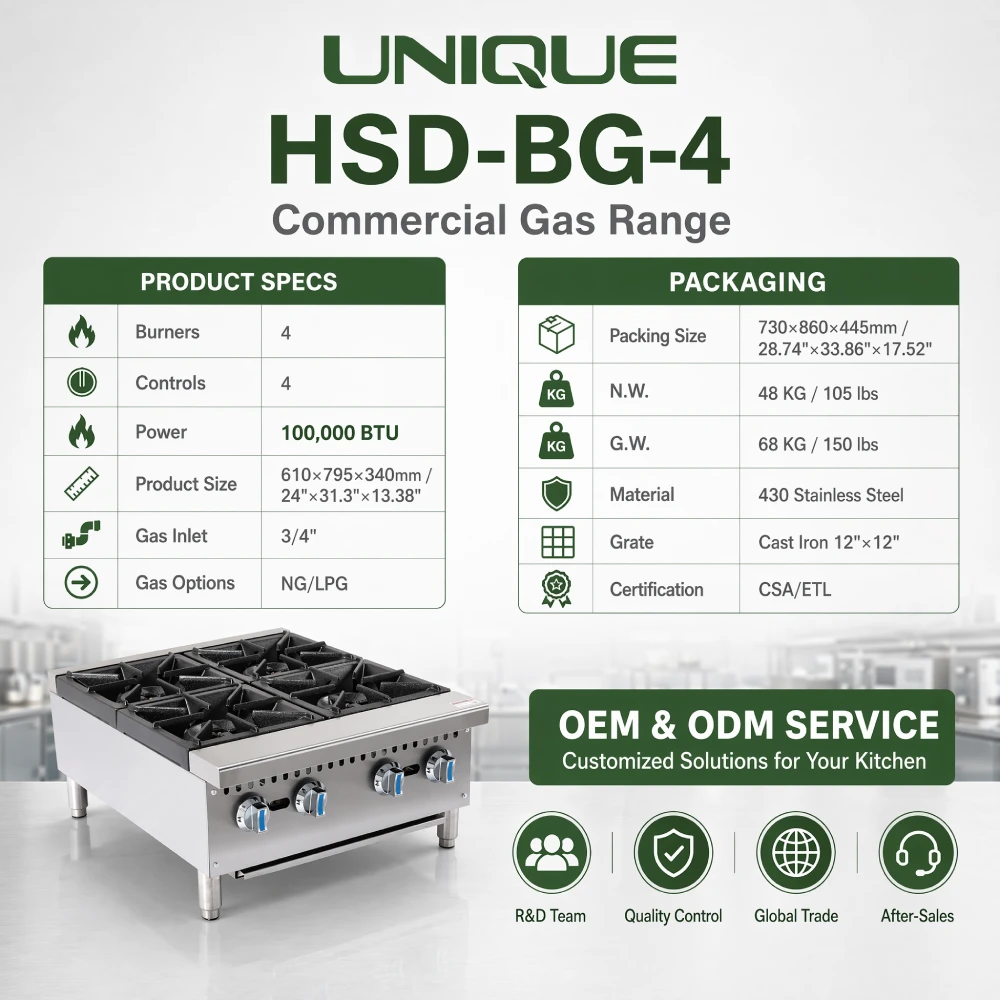

Specifications

Specification Details Specification Details

Model

HSD-BG-4

Product Name

Countertop Gas Range

Number of Burners

4

Material

Stainless Steel

Total Heat Output

4 x 25,000 BTU

Product Dimensions (mm/in)

610 x 795 x 340 mm (24 x 31.3 x 13.38")

Packaging Dimensions (mm/in)

730 x 860 x 445 mm (28.74 x 33.86 x 17.52")

Net Weight

48 kg

Applications

Boiling, stir-frying, stewing







Commercial Four-Burn Gas Hot Plate

This four-burner gas cooktop offers four independently controlled cooking zones, allowing you to cook multiple dishes simultaneously. The robust cast iron grates provide a stable cooking surface for cookware, and the removable burners with drip trays make cleaning easy.

With its practical four-burner layout and individual control knobs, this commercial gas cooktop is suitable for a variety of high-frequency cooking methods, including boiling, frying, stir-frying, and stewing.



Standard Acessories

  • One heavy-duty cast iron top grate

  • One full-width removable stainless steel drip pan

  • Four adjustable stainless steel legs

  • One gas pressure regulator matched to the specified gas type

  • One set of stainless steel control knobs

  • Installation and operation manual

Tabletop 4-Burner Gas Stove

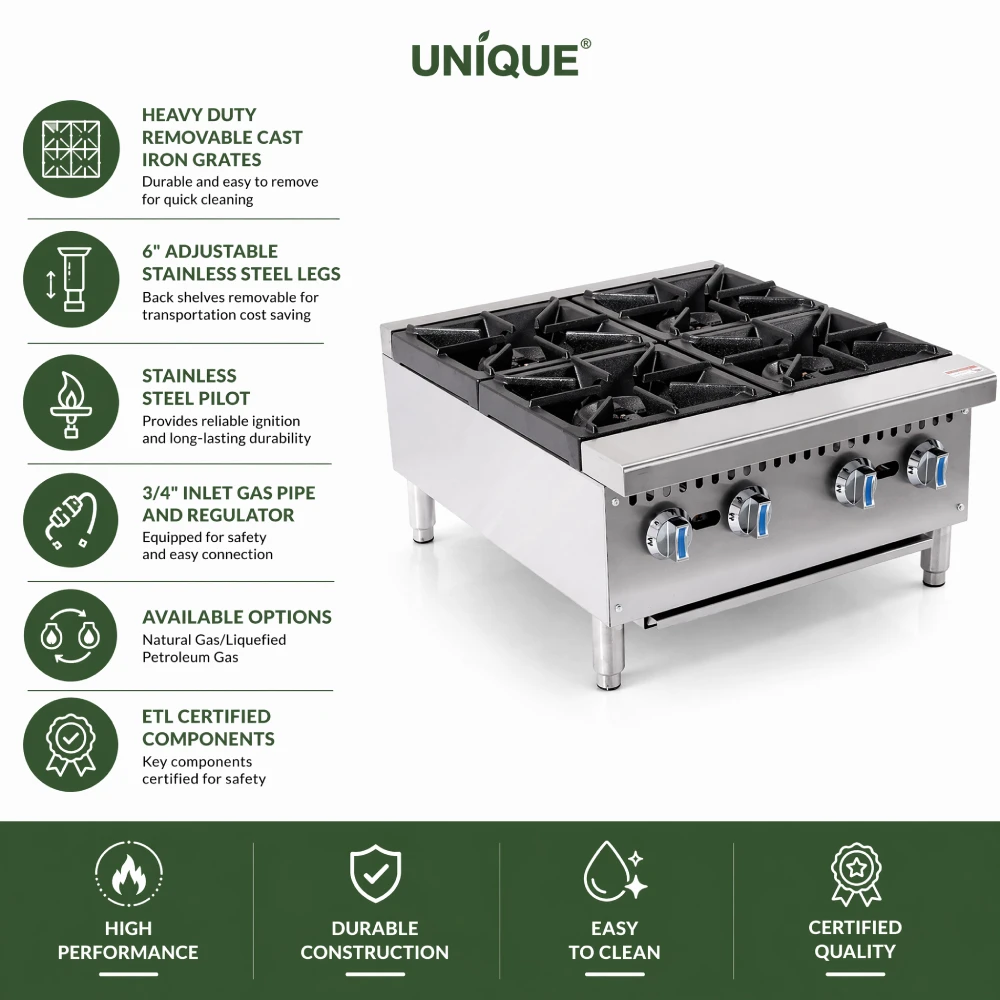

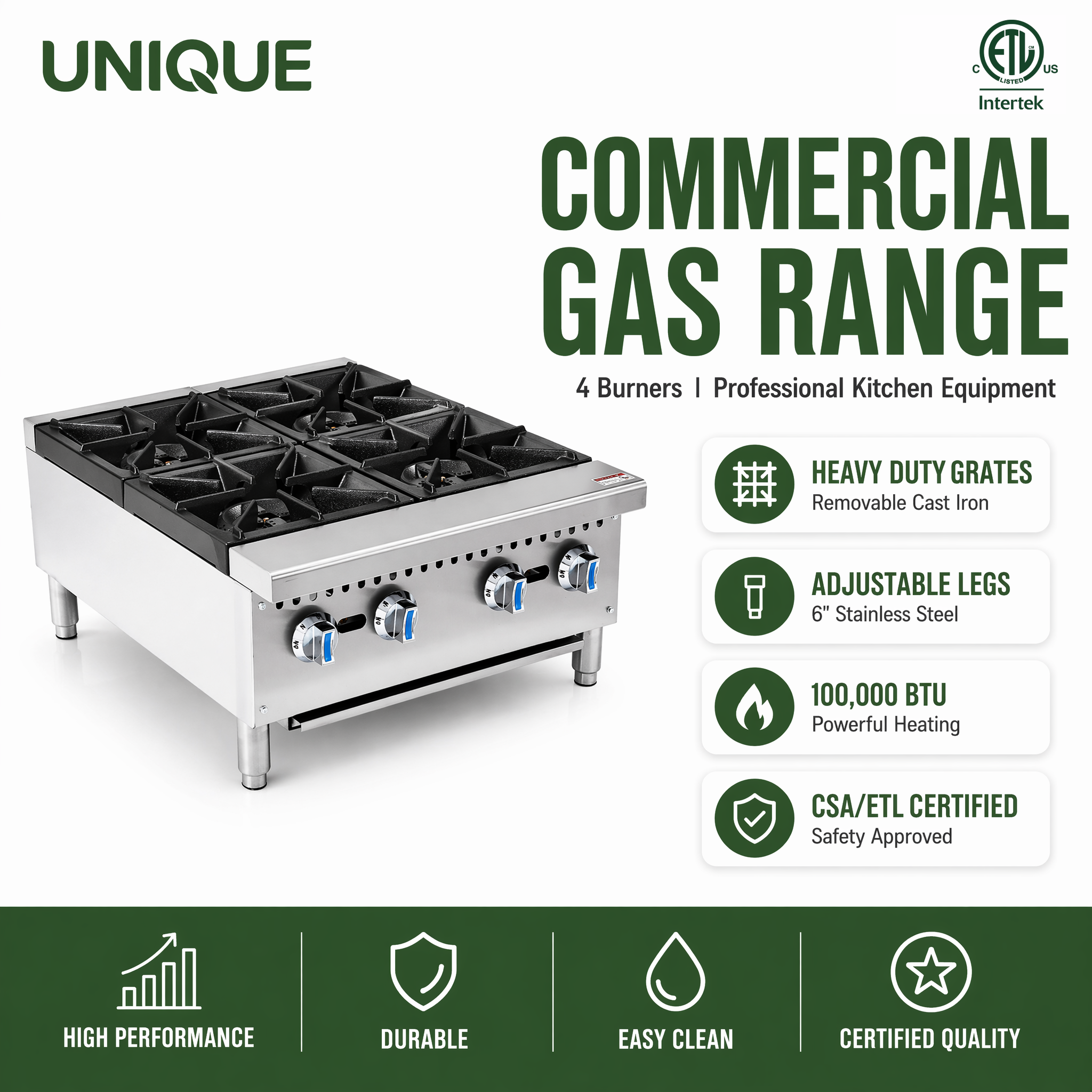

Features of Gas Hot Plates

●Heavy duty removable cast iron grates for easy cleaning.

●6"adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.Stainless steel pilot for durability.

● With 3/4"inlet gas pipe and regulator.

● Easy conversion from NG to LPG and vice versa.

●Key components have CSA/ETL Certificate.

Tabletop 4-Burner Gas Stove

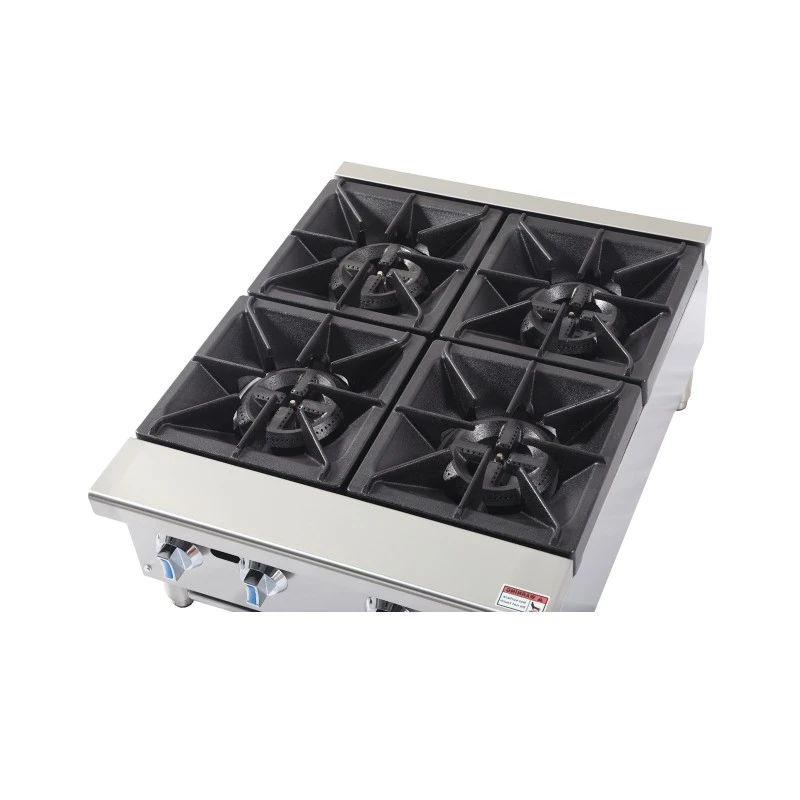

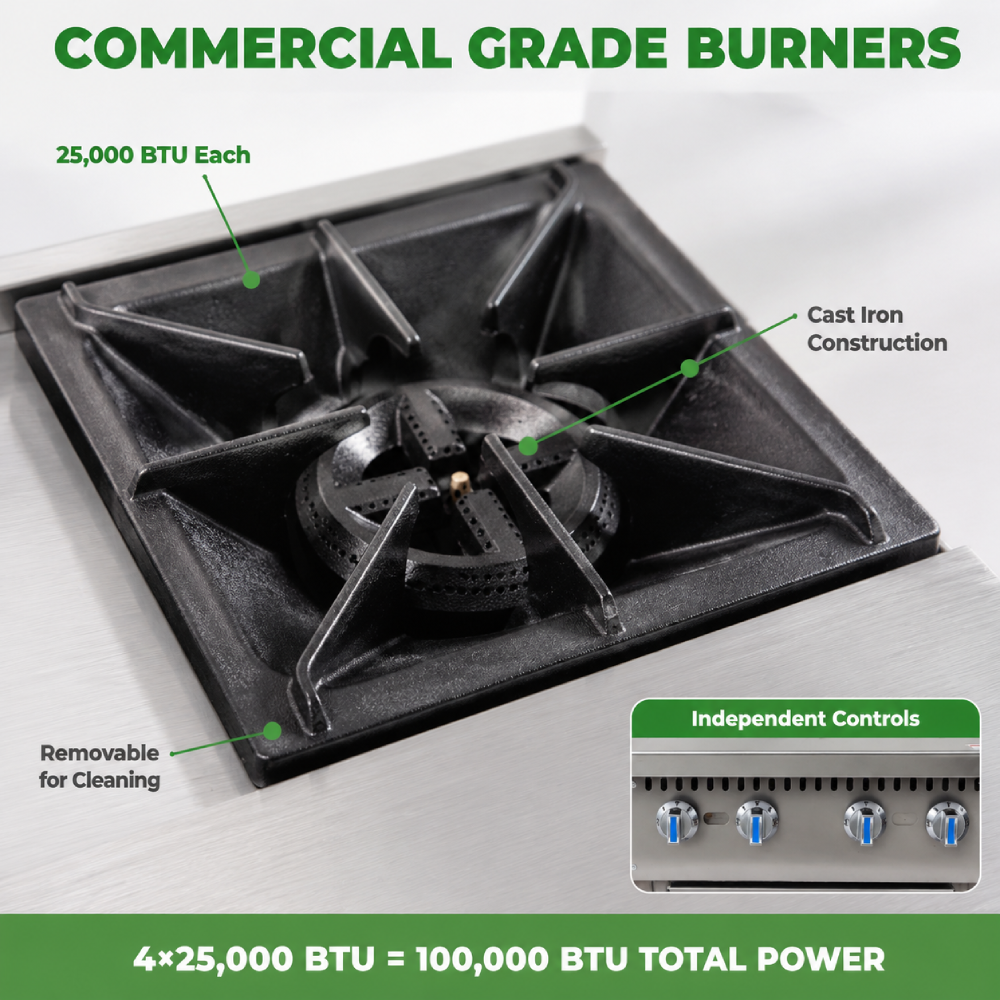

Four 25,000 BTU High-Power Burners

The HSD-BG-4 is equipped with four high-power cast iron burners, each rated at 25,000 BTU/hour. The total rated heat output of these four burners is 100,000 BTU/hour, suitable for commercial use in boiling, stir-frying, stewing, and other cooking methods.

Tabletop 4-Burner Gas Stove

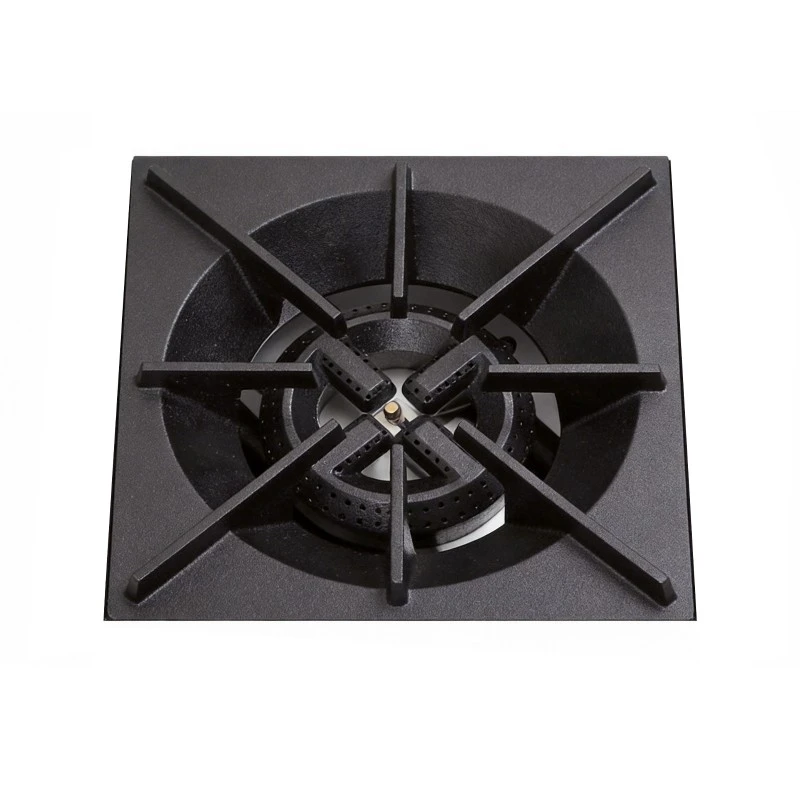

Heavy-duty cast iron cooktop rack

The detachable cast iron cooktop rack provides stable support for cookware and is easy and quick to clean.



Related Models
To meet high-volume cooking needs, we also offer dual-burner large-pot gas ranges and various multi-burner cooking stoves—please click below to view the products.

Model

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

HSD-BG-1

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

HSD-BG-2

Tabletop 4-Burner Gas Stove

HSD-BG-4

Tabletop 4-Burner Gas Stove

HSD-BG-6

Tabletop 4-Burner Gas Stove

HSD-BG-8

Burners

1

2

4 6 8

Gas Supply

84,280 BTU 2*25,000 BTU 4*25,000 BTU 6*25,000 BTU 8*25,000 BTU
Manifold Pressure (NG/LP) 4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
Exterior Dimensions (inch) W×D×H 17.7×22.4×19.69 12.9"×31.3"×13.38" 24"×31.3"×13.38" 36"×31.3"×13.38" 48"×31.3"×13.38"

N.W.(lbs)

97 57 105 163 196

G.W.(lbs)

114 88 150 209 262



FAQ
1. Can this unit be converted from Natural Gas (NG) to Liquefied Petroleum Gas (LPG)?
—Yes, the HSD-BG-1 model supports conversion between NG and LPG and comes with the necessary pressure regulators and fittings.
2. What certifications do the key components hold?
—The core burners and gas components are CSA or ETL certified for the North American market.
3. Do you offer OEM and ODM customization services?
—Yes, we provide OEM/ODM services for commercial kitchen equipment; please contact our sales team regarding customization requirements.
4. What are the Minimum Order Quantity (MOQ) and lead time?
—Please submit an inquiry to obtain detailed information regarding MOQs, production lead times, and wholesale pricing.
5. Is the burner head detachable for cleaning?
—Yes, the burner head is detachable, facilitating routine maintenance and deep cleaning.
