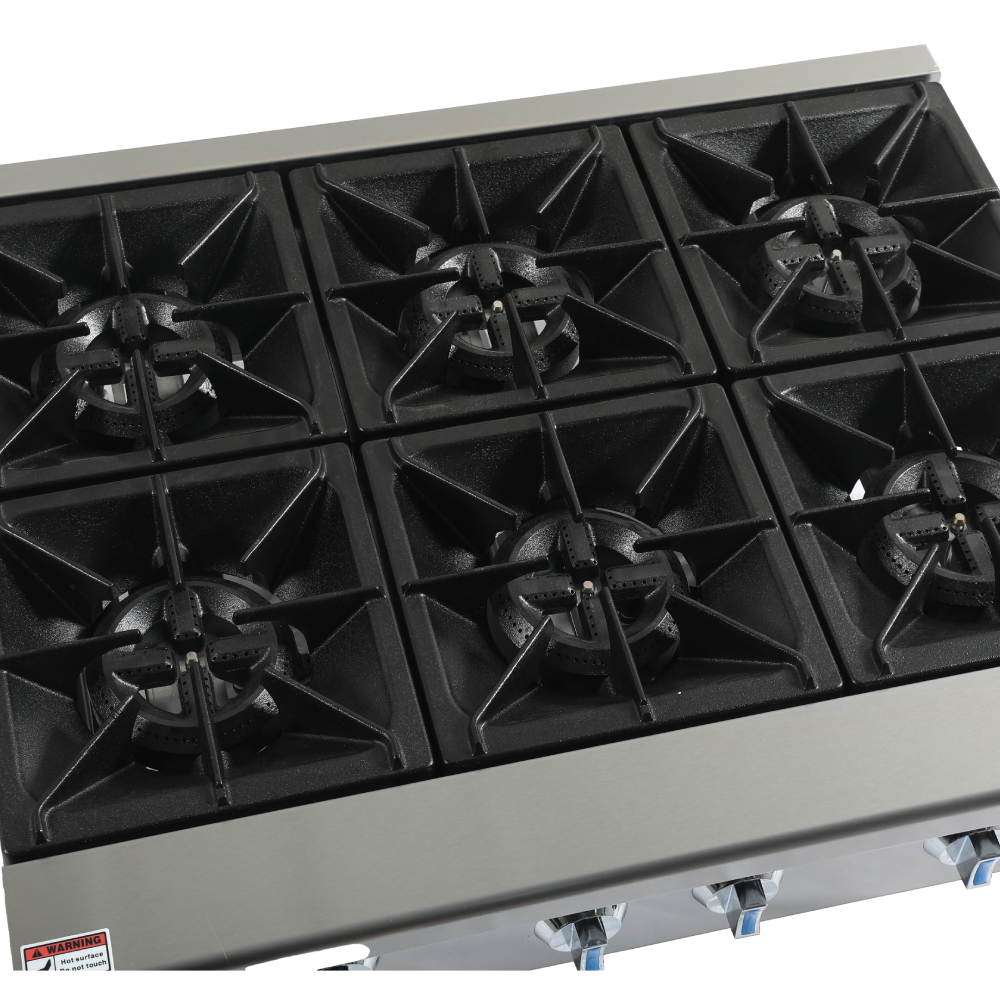

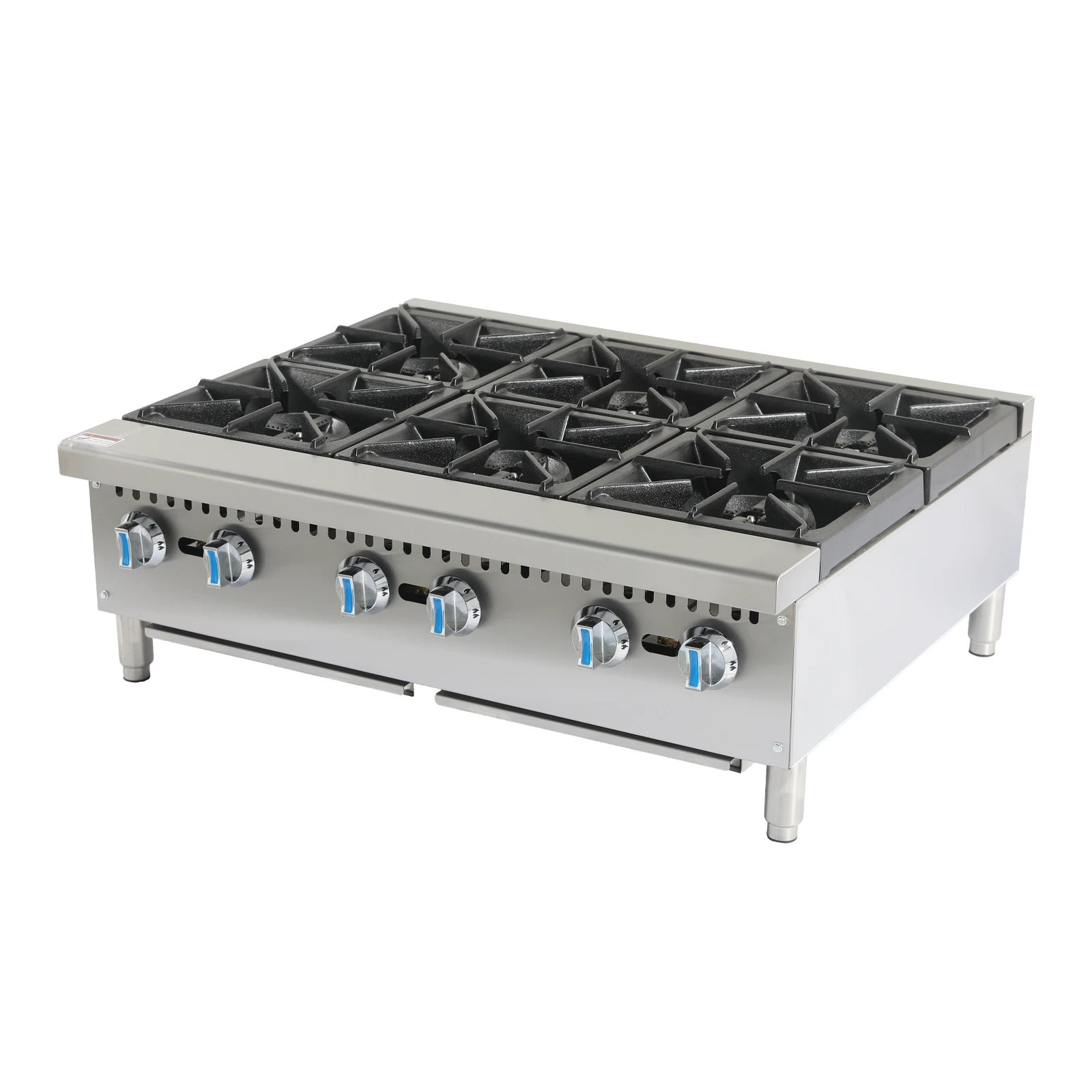

This commercial gas cooktop features six powerful burners, each delivering up to 25,000 BTU of heat per hour. The cast iron 12-inch x 12-inch grates are removable for easy cleaning. A stainless steel pull-out crumb tray is located beneath the burners to collect spilled food scraps.
Model: HSD-BG-6
Number of burners: 6
Power: 6 x 25,000 BTU
Product dimensions: 915 x 795 x 340 mm
Fuel type: Natural gas
Specification Sheet
vocook-gas-hot-plate-hsd-bg-6-spec-sheet.pdf
Manuals
manual-vocook-gas-hot-plate.pdfSpecifications

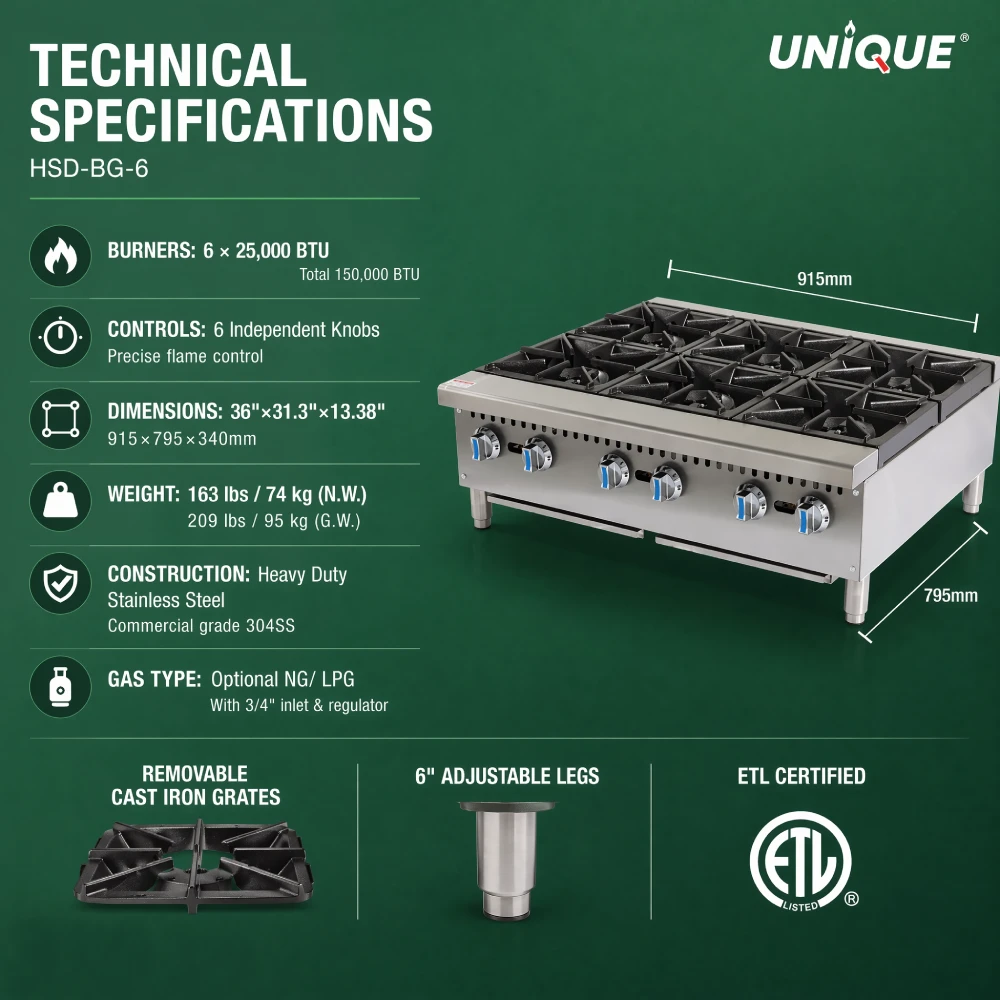

| Specification | Details | Specification | Details |
|
Model |
HSD-BG-6 |
Product Name |
Gas Hot Plate |
|
Number of Burners |
6 |
Material |
Stainless Steel |
|
Total Heat Output |
6 x 25,000 BTU |
Product Dimensions (mm/in) |
915 x 795 x 340 mm (36 x 31.3 x 13.38") |
|
Packaging Dimensions (mm/in) |
1020 x 860 x 445 mm (40.16 x 33.86 x 17.52") |
Net Weight |
74 kg |
|
Applications |
Boiling, stir-frying, stewing |
Features six independent burners, each with a rated power of 25,000 BTU/h, for a total power of up to 150,000 BTU/h, meeting a wide range of cooking needs from slow simmering to high-temperature stir-frying. Standard features include flameout protection and segmented temperature control to ensure stable cooking temperatures, making it suitable for hotel Chinese kitchens, main cooking areas in chain restaurants, and main cooking areas in corporate canteens.
Standard Acessories
One heavy-duty cast iron top grate
One full-width removable stainless steel drip pan
Four adjustable stainless steel legs
One gas pressure regulator matched to the specified gas type
One set of stainless steel control knobs
Installation and operation manual

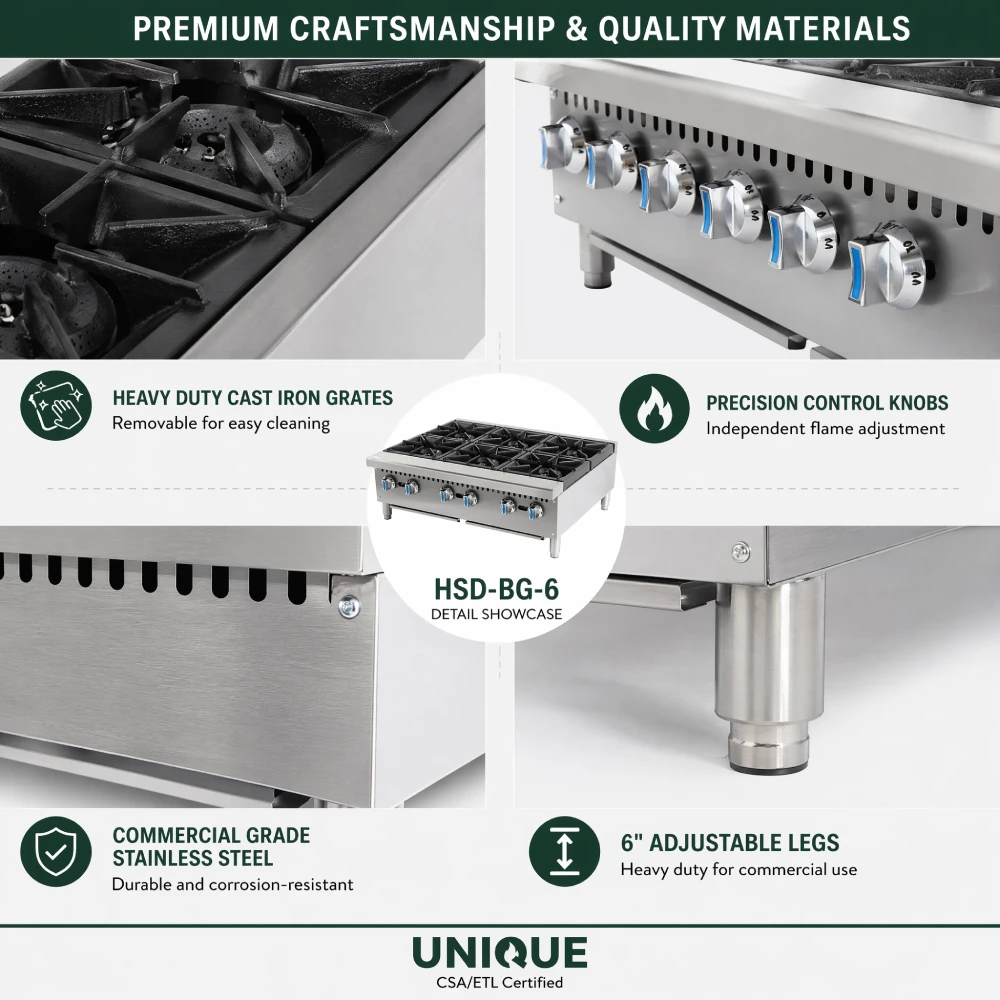

●Heavy duty removable cast iron grates for easy cleaning.
●6"adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.Stainless steel pilot for durability.
● With 3/4"inlet gas pipe and regulator.
● Easy conversion from NG to LPG and vice versa.
●Key components have CSA/ETL Certificate.

Six 25,000 BTU High-Power Burners
The HSD-BG-6 is equipped with six high-power cast iron burners, each rated at 25,000 BTU/hour. Designed for commercial use, it can be used for various cooking methods such as boiling, stir-frying, and stewing.

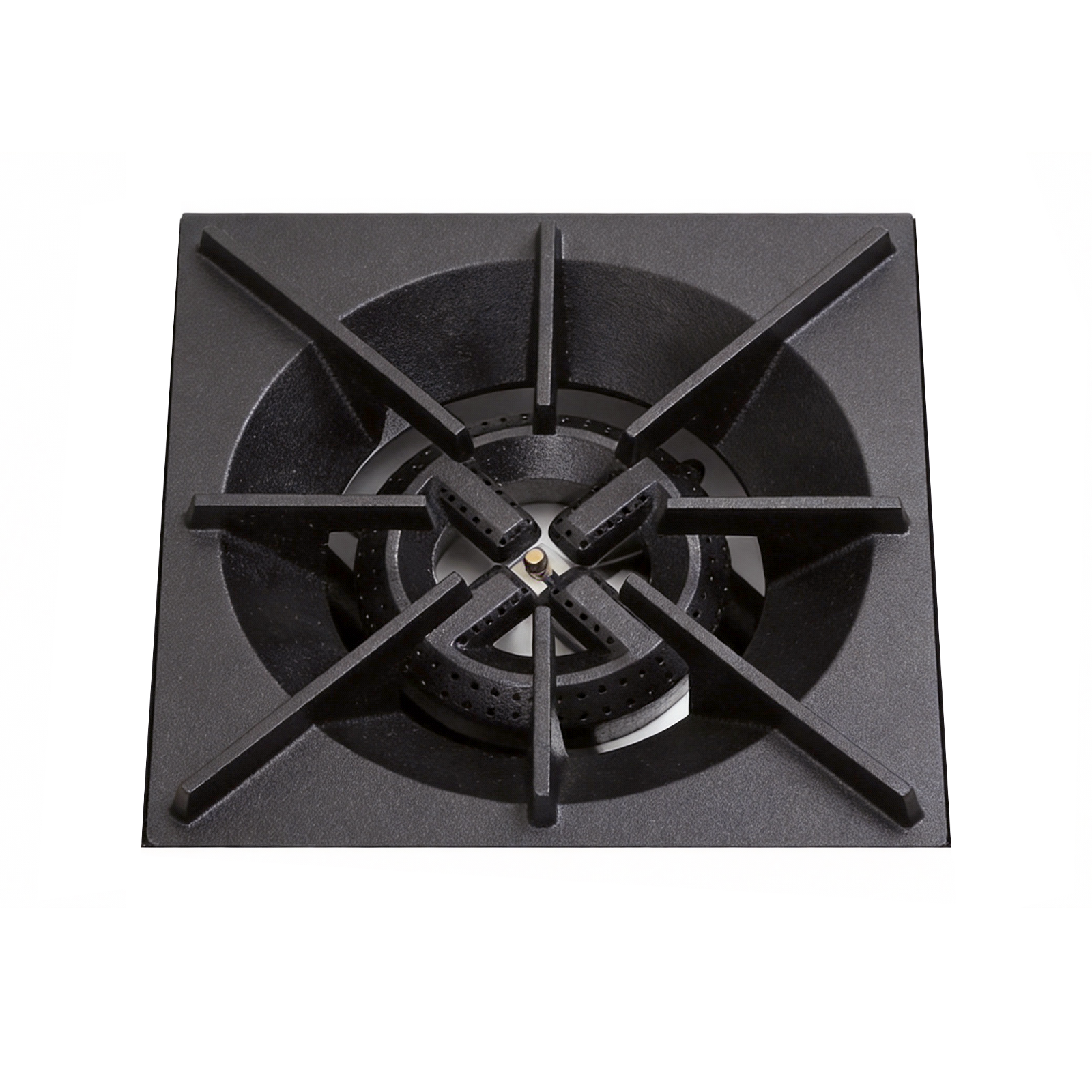

The detachable cast iron cooktop rack provides stable support for cookware and is easy and quick to clean.
Related Models
To meet high-volume cooking needs, we also offer dual-burner large-pot gas ranges and various multi-burner cooking stoves—please click below to view the products.
|
Model |
|||||
| Burners |
1 |
2 |
4 | 6 | 8 |
|
Gas Supply |
84,280 BTU | 2*25,000 BTU | 4*25,000 BTU | 6*25,000 BTU | 8*25,000 BTU |
| Manifold Pressure (NG/LP) | 4'' W.C 10'' W.C |
4'' W.C 10'' W.C |
4'' W.C 10'' W.C |
4'' W.C 10'' W.C |
4'' W.C 10'' W.C |
| Exterior Dimensions (inch) W×D×H | 17.7×22.4×19.69 | 12.9"×31.3"×13.38" | 24"×31.3"×13.38" | 36"×31.3"×13.38" | 48"×31.3"×13.38" |
|
N.W.(lbs) |
97 | 57 | 105 | 163 | 196 |
|
G.W.(lbs) |
114 | 88 | 150 | 209 | 262 |
FAQ
1. Can this unit be converted from Natural Gas (NG) to Liquefied Petroleum Gas (LPG)?
—Yes, the HSD-BG-1 model supports conversion between NG and LPG and comes with the necessary pressure regulators and fittings.
2. What certifications do the key components hold?
—The core burners and gas components are CSA or ETL certified for the North American market.
3. Do you offer OEM and ODM customization services?
—Yes, we provide OEM/ODM services for commercial kitchen equipment; please contact our sales team regarding customization requirements.
4. What are the Minimum Order Quantity (MOQ) and lead time?
—Please submit an inquiry to obtain detailed information regarding MOQs, production lead times, and wholesale pricing.
5. Is the burner head detachable for cleaning?
—Yes, the burner head is detachable, facilitating routine maintenance and deep cleaning.
