Home / Product / Cooking Range / Gas Cooking Range / Gas Stock Pot

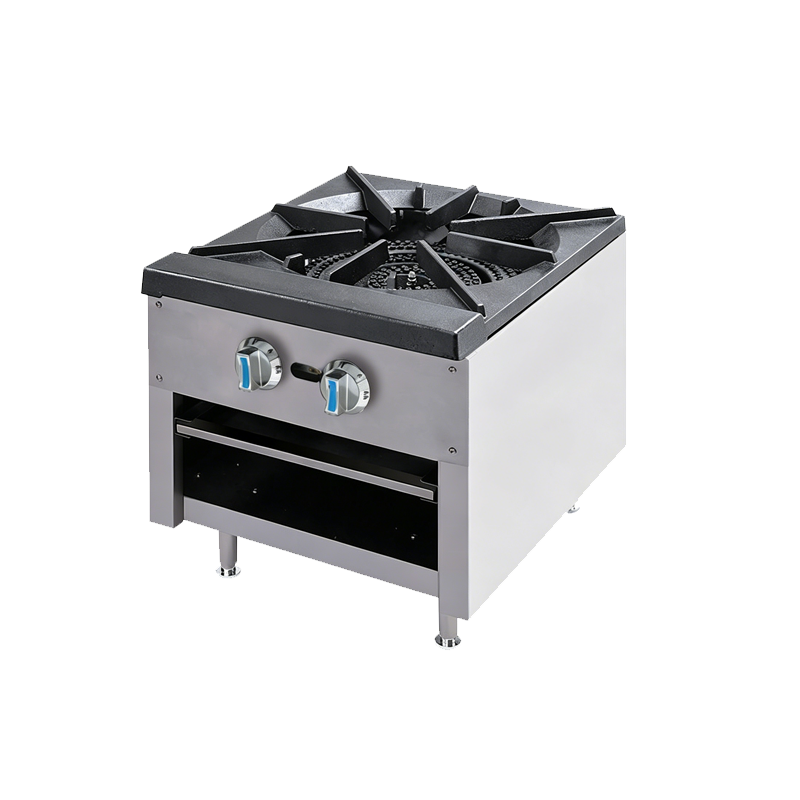

Gas Stock Pot
Gas Stock Pot HSD-BG-1
Gas burner head
Gas Stock Pot
Gas Stock Pot HSD-BG-1
Gas burner head
Gas Stock Pot

Gas Stock Pot

This single-burner commercial gas hot plate  features a high-efficiency ring burner; its multi-nozzle design ensures uniform heat distribution and consistent cooking results. Constructed from durable stainless steel, the unit incorporates an electrode ignition system for rapid, reliable ignition, thereby enhancing operational efficiency in busy kitchen environments.

Model: HSD-BG-1

Number of burners: 1

Product dimensions: 445 x 570 x 500 mm

Fuel type: Natural gas

Specifications Photo & Video

Specification Sheet

vocook-gas-hot-plate-hsd-bg-1-spec-sheet.pdf
Download

Manuals

manual-vocook-gas-hot-plate.pdf
Download

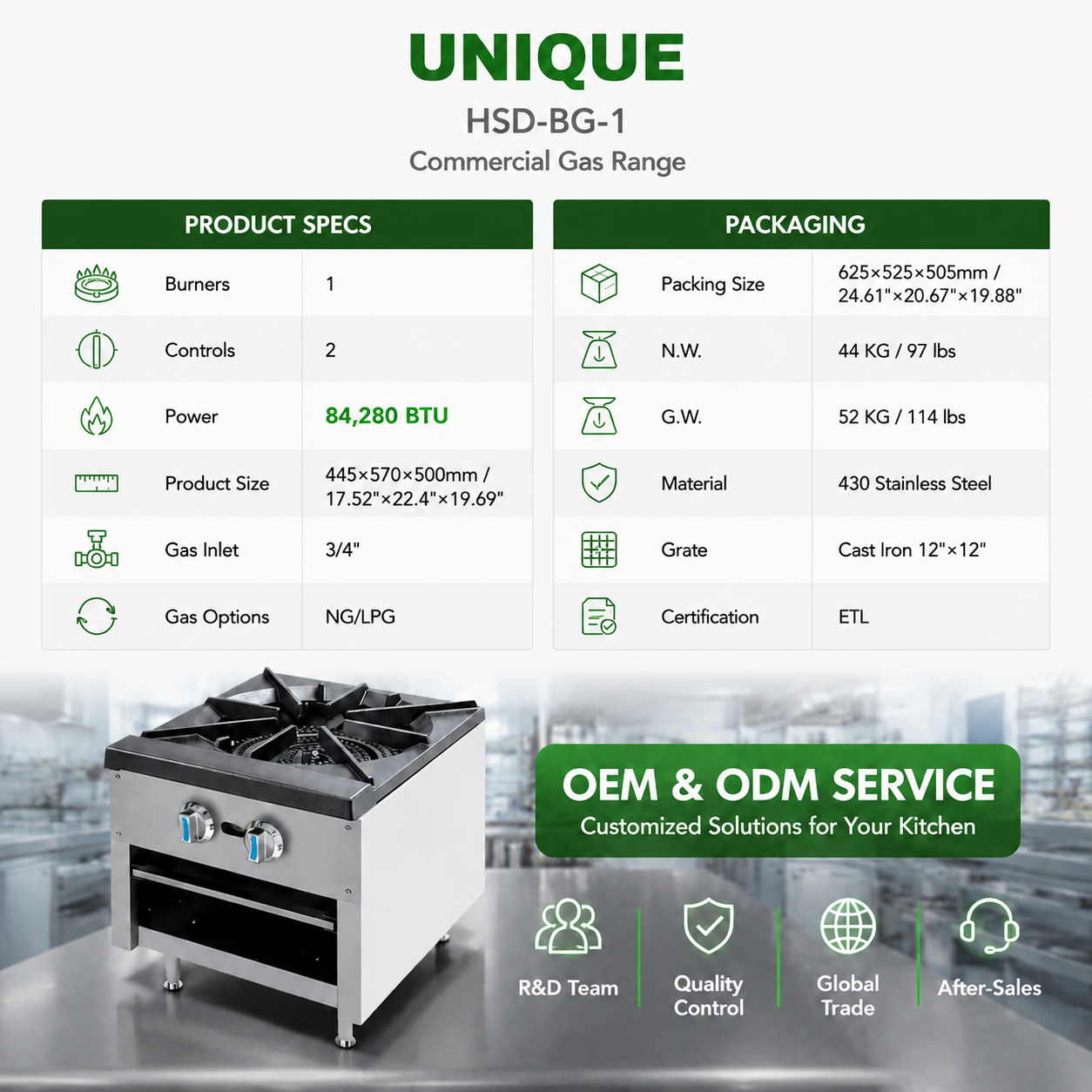

Specifications

Specification Details Specification Details

Model

HSD-BG-1

Product Name

Gas Stock Pot

Number of Burners

1

Material

Stainless Steel

Total Heat Output

 84,280 BTU

Product Dimensions (mm/in)

 445 x 570 x 500 mm(17.52 x 22.4 x 19.69")

Net Weight

44kg

Packaging Dimensions (mm/in)

625 x 525 x 505 mm(24.61 x 20.67 x 19.88")

Applications

Boiling, Stir-frying, Stewing





Single-burner high-power stock pot  (dual flame control)


Designed for busy commercial kitchens, this gas stove provides stable, slow-cooking heat. Simmering pots require low, even heat to maintain stability over long periods. This single-burner gas stove is designed for this purpose. The heavy-duty cast iron ring burner evenly distributes the flame to the bottom of the pot, ensuring even heating of broths, soups, stews, and sauces, preventing localized burning.

Standard Acessories

  • One heavy-duty cast iron top grate

  • One full-width removable stainless steel drip pan

  • Four adjustable stainless steel legs

  • One gas pressure regulator matched to the specified gas type

  • One set of stainless steel control knobs

  • Installation and operation manual



OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

Gas Stock Pot Features and Benefits

●Dual-flame, dual-knob control

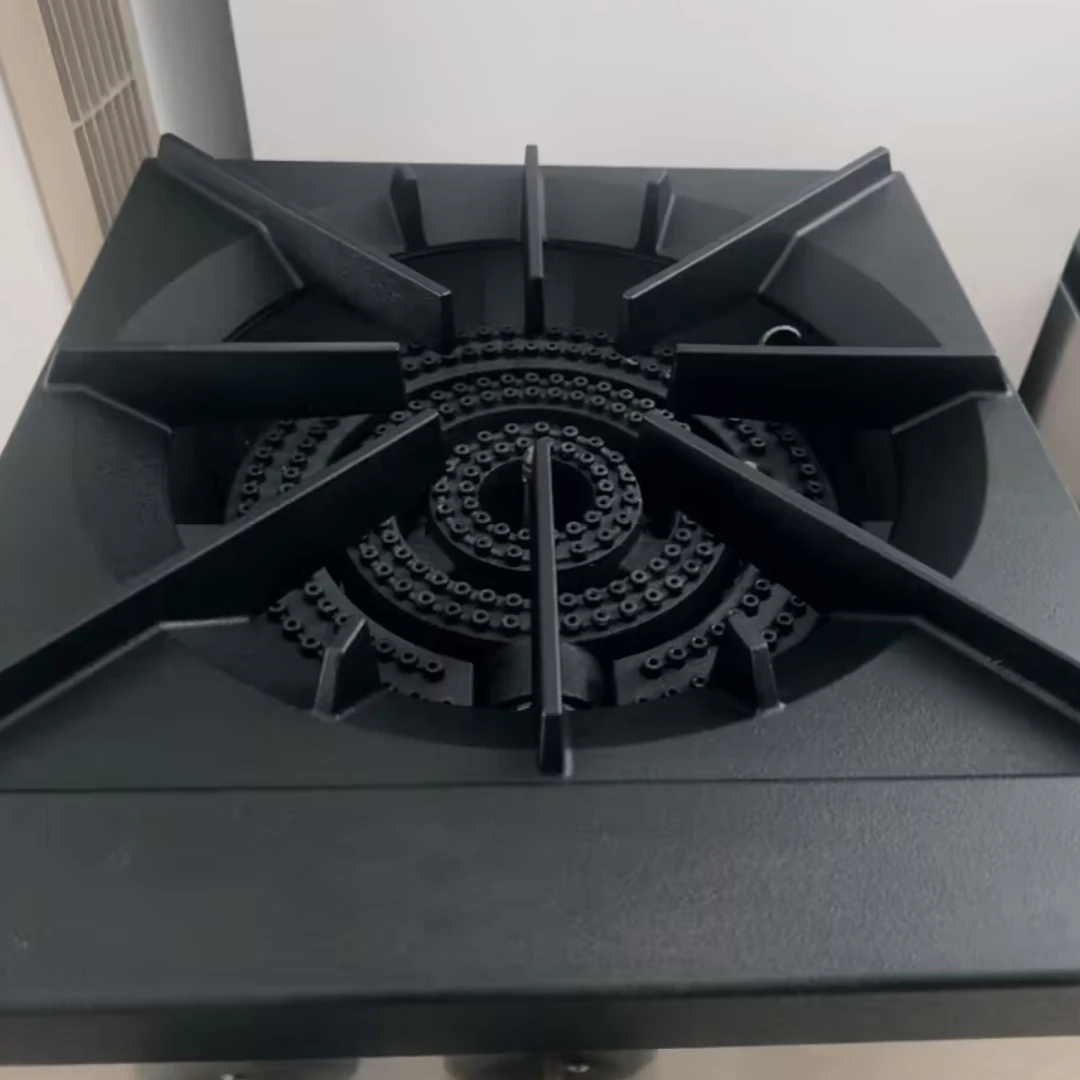

●Heavy duty removable cast iron grates for easy cleaning.

●6"adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.Stainless steel pilot for durability.

● With 3/4"inlet gas pipe and regulator.

● Easy conversion from NG to LPG and vice versa.

●Key components have CSA/ETL Certificate.

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

Dual Temperature Control Burners

Two independent knobs—one for the constant flame and the other for the main burner—allow you to easily adjust the heat from simmering to boiling without searching for matches. Meets a variety of cooking needs.

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

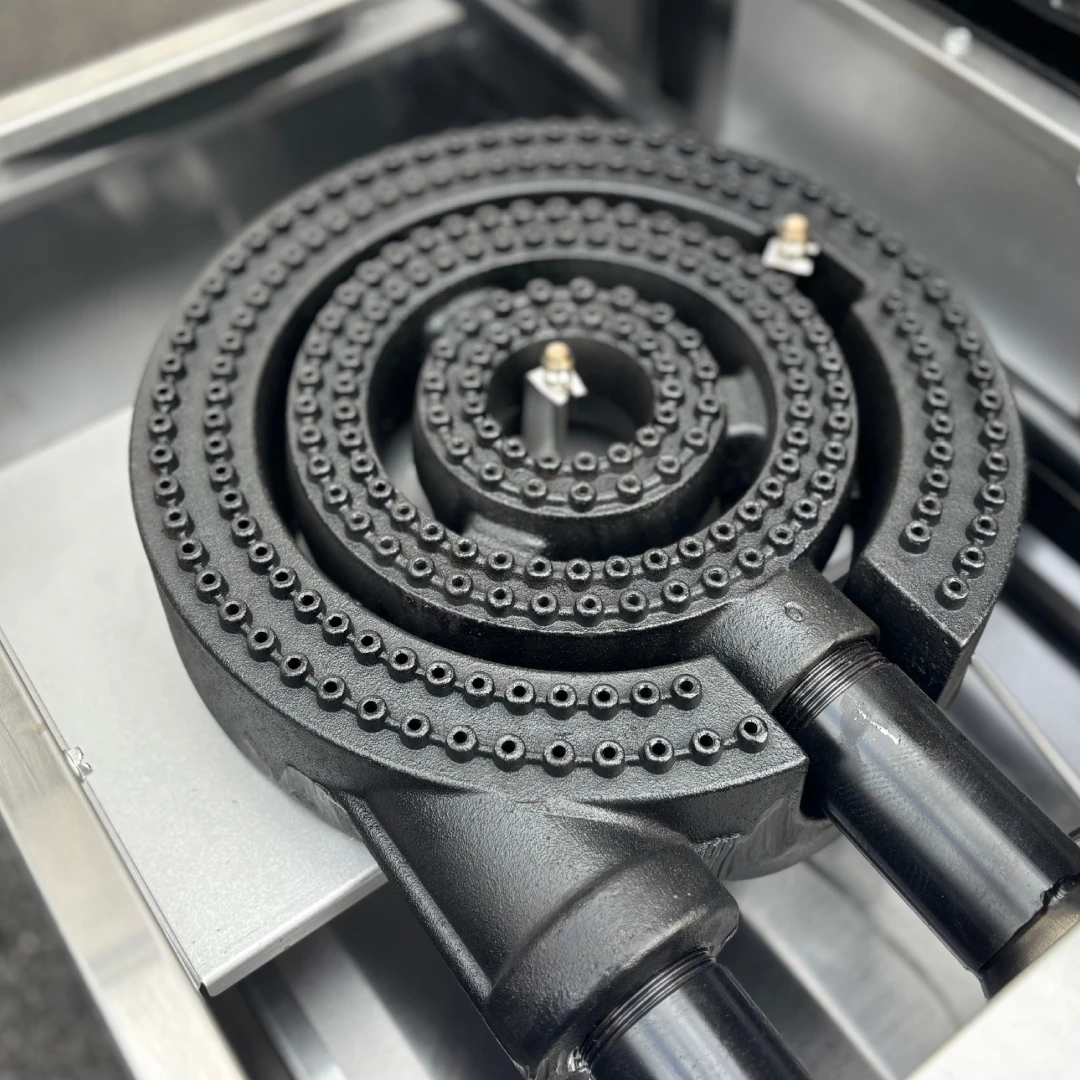

The burner head is detachable

This unit is certified to commercial gas appliance standards and can use [natural gas/liquefied propane], and comes with the necessary regulators and accessories.







Related Models
To meet high-volume cooking needs, we also offer dual-burner large-pot gas ranges and various multi-burner cooking stoves—please click below to view the products.

Model

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

HSD-BG-1

OEM/ODM Single-Burner Gas Stove, Commercial Grade, 2 Temperature Controllers, 84280BTU

HSD-BG-2

Tabletop 4-Burner Gas Stove

HSD-BG-4

Tabletop 4-Burner Gas Stove

HSD-BG-6

Tabletop 4-Burner Gas Stove

HSD-BG-8

Burners

1

2

4 6 8

Gas Supply

84,280 BTU 2*25,000 BTU 4*25,000 BTU 6*25,000 BTU 8*25,000 BTU
Manifold Pressure (NG/LP) 4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
4'' W.C
10'' W.C
Exterior Dimensions (inch) W×D×H 17.7×22.4×19.69 12.9"×31.3"×13.38" 24"×31.3"×13.38" 36"×31.3"×13.38" 48"×31.3"×13.38"

N.W.(lbs)

97 57 105 163 196

G.W.(lbs)

114 88 150 209 262



Gas Stock Pot: FAQ
1. Can this unit be converted from Natural Gas (NG) to Liquefied Petroleum Gas (LPG)?
—Yes, the HSD-BG-1 model supports conversion between NG and LPG and comes with the necessary pressure regulators and fittings.
2. What certifications do the key components hold?
—The core burners and gas components are CSA or ETL certified for the North American market.
3. Do you offer OEM and ODM customization services?
—Yes, we provide OEM/ODM services for commercial kitchen equipment; please contact our sales team regarding customization requirements.
4. What are the Minimum Order Quantity (MOQ) and lead time?
—Please submit an inquiry to obtain detailed information regarding MOQs, production lead times, and wholesale pricing.
5. Is the burner head detachable for cleaning?
—Yes, the burner head is detachable, facilitating routine maintenance and deep cleaning.
