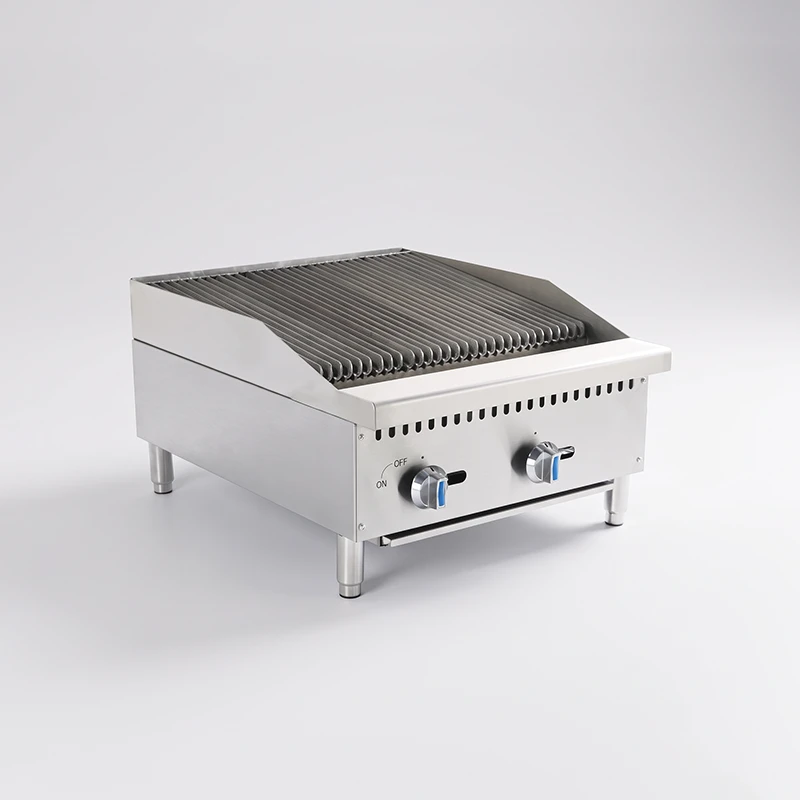

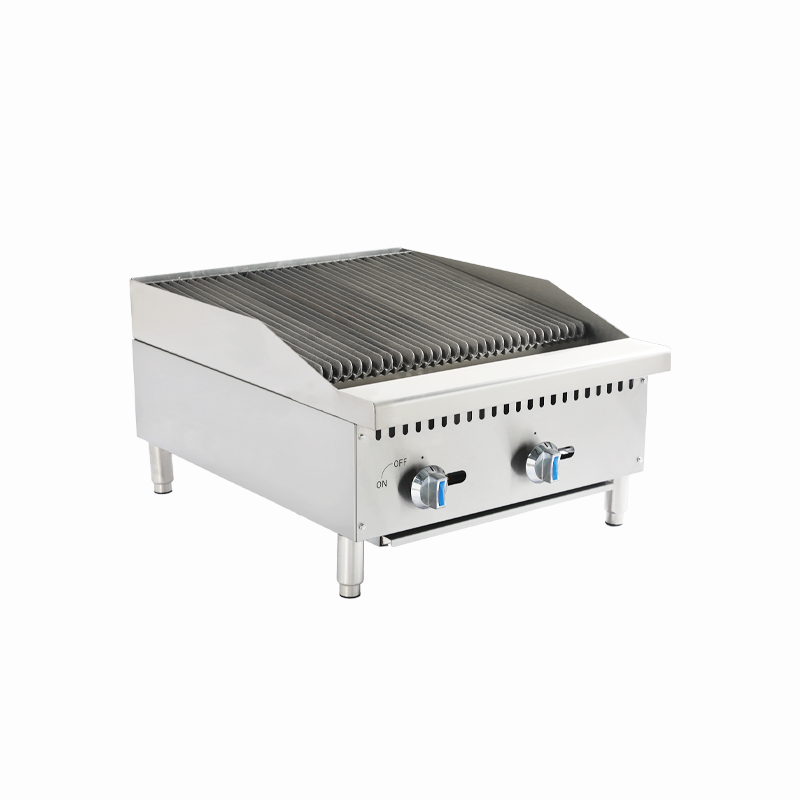

This durable stainless steel countertop gas charbroiler is designed specifically for use in high-volume restaurants and food trucks. Featuring precise temperature control and uniform heating, it enables you to grill perfect, delicious dishes. It is the ideal choice for grilling burgers, steaks, and a variety of vegetables.
Brand: Unique
Model: HSD-SG-24
Number of burners: 2
Power: 70,000 BTU
Dimensions: 610 x 795 x 396 mm — 24" x 31.3" x 15.59"
Fuel type: Natural gas

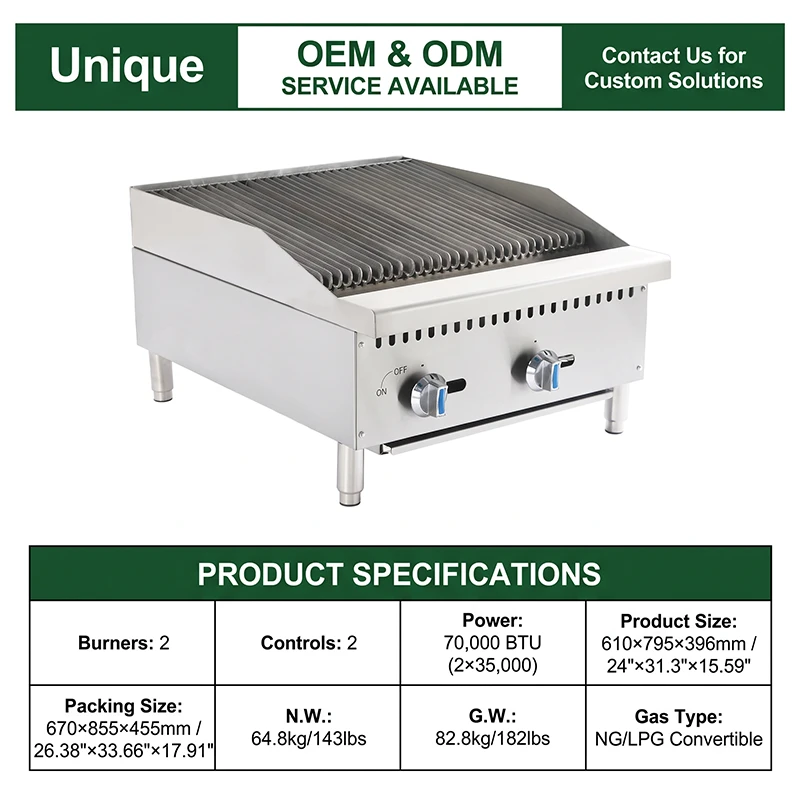

Specifications
| Specification | Details | Specification | Details |
|
Model |
HSD-SG-24 |
Product Name |
Countertop Gas Charbroiler (Radiant/No Lava Rock) |
|
Material |
Stainless Steel |
Number of Burners |
2 |
|
Number of Control Knobs |
2 |
Power |
2 x 35,000 BTU |
|
Product Dimensions (mm/in) |
610 x 795 x 396 mm — 24" x 31.3" x 15.59" |
Packaging Dimensions (mm/in) |
670 x 855 x 455 mm — 26.38" x 33.66" x 17.91" |
|
Net Weight (kg/lbs) |
64.8 kg / 143 lbs |
Gross Weight (kg/lbs) |
82.8 kg / 182 lbs |
|
Application |
Steak Grilling |
The HSD-SG-24 is a 24-inch commercial countertop gas oven designed for restaurants, food trucks, catering services, hotels, and professional kitchens. This compact gas oven features two independently controlled burners with a total output of up to 70,000 BTU, meeting the demands of high-volume grilling.
The independent burner control system manages different cooking zones according to specific menu requirements.
Adjustable heavy-duty stainless steel legs and a stainless steel baking tray facilitate installation and transport.

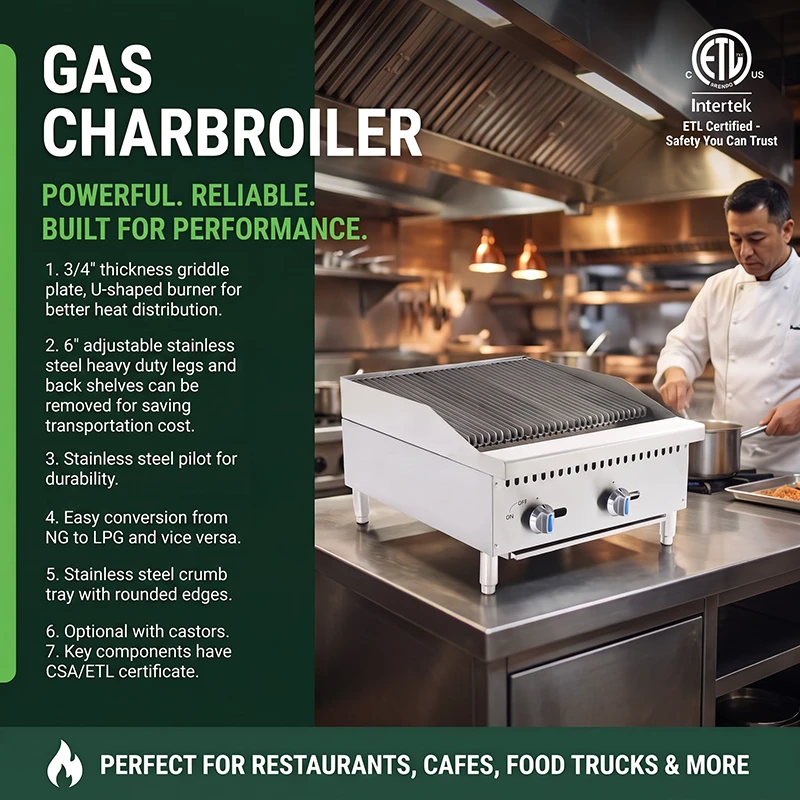

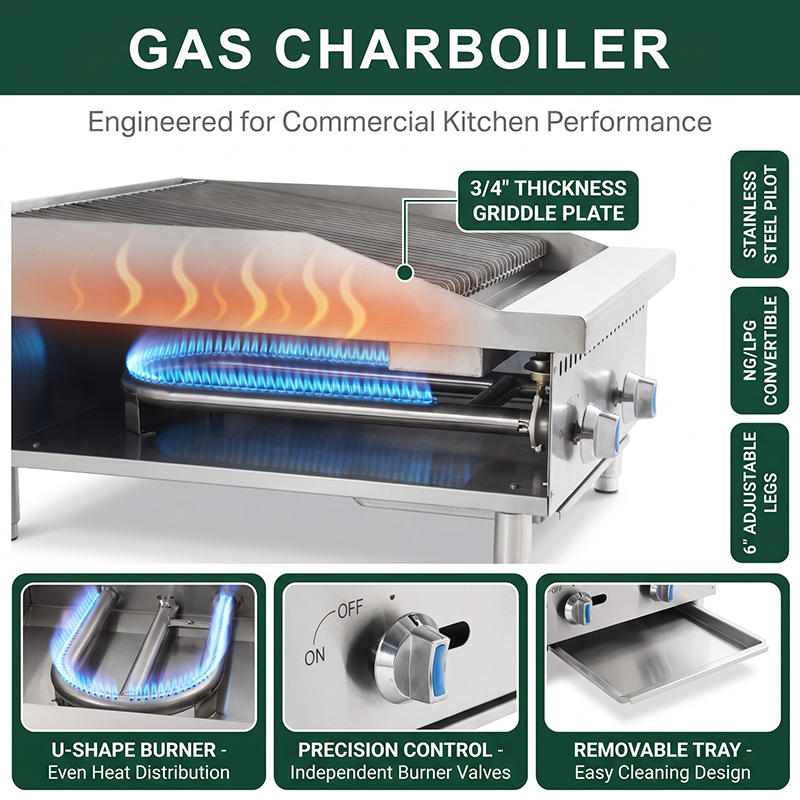

● 3/4" thickness griddle plate, U-shaped burner for better heat distribution.
● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
● Stainless steel pilot for durability.
● Easy conversion from NG to LPG and vice versa.
● Stainless steel crumb tray with rounded edges.
● Optional with castors.

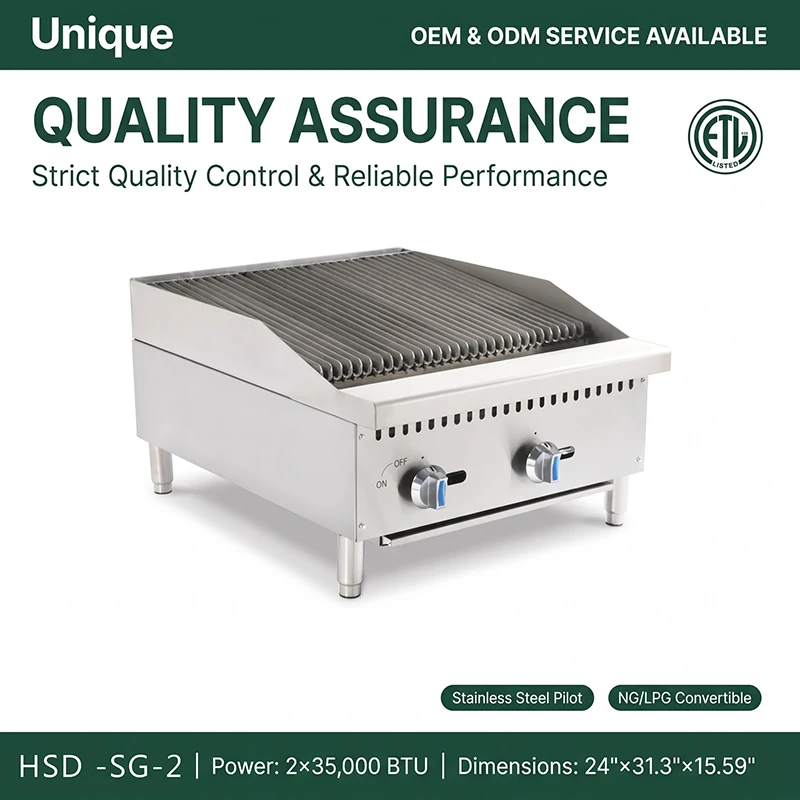

● Key components have CSA/ETL certificate.
Independent Temperature Control System
Commercial countertop gas charboiler are ideal for busy kitchen environments, combining superior performance with ease of use. The independent temperature control system allows operators to precisely maintain the required cooking temperature, ensuring consistent cooking results.

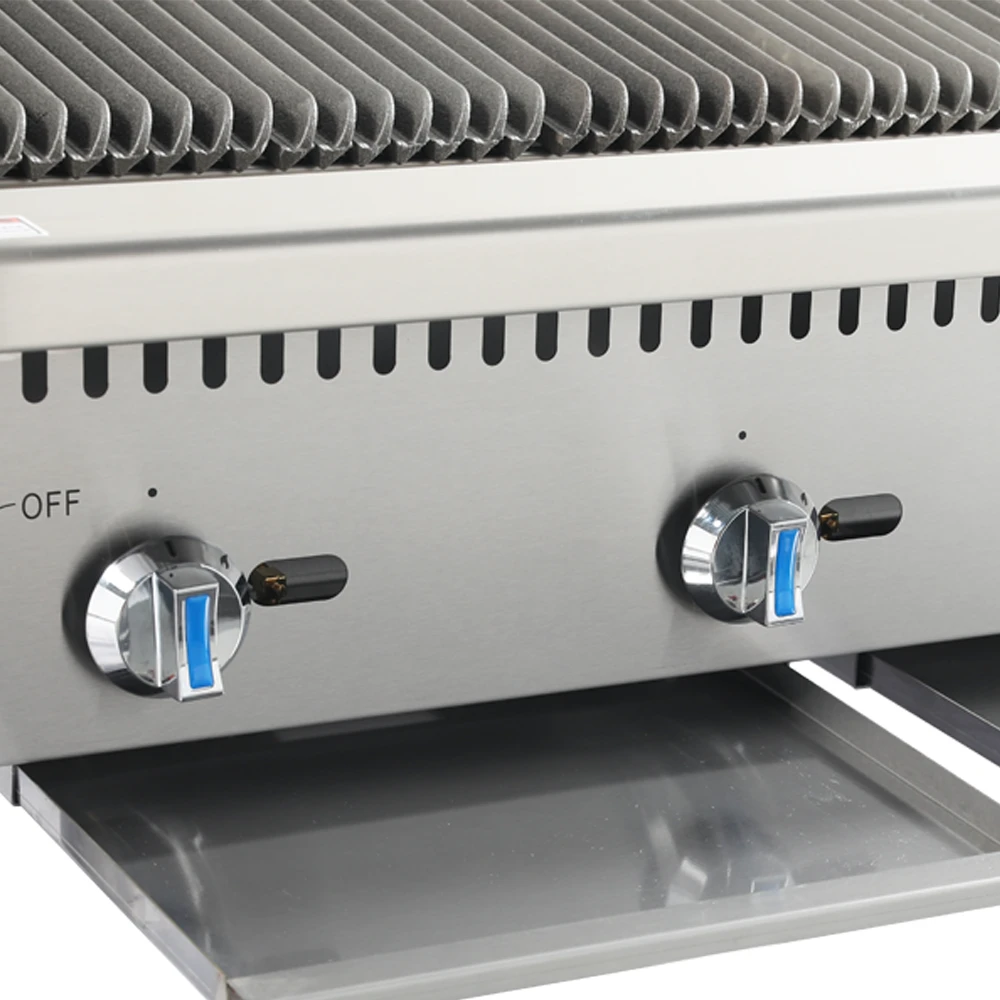

Crumb Tray/Oil Dish
To improve kitchen efficiency, the HSD-SG-24 is also equipped with a removable crumb tray at the bottom, making cleaning quick and easy, allowing kitchen staff to reduce maintenance time and focus more on cooking.
|
Model |

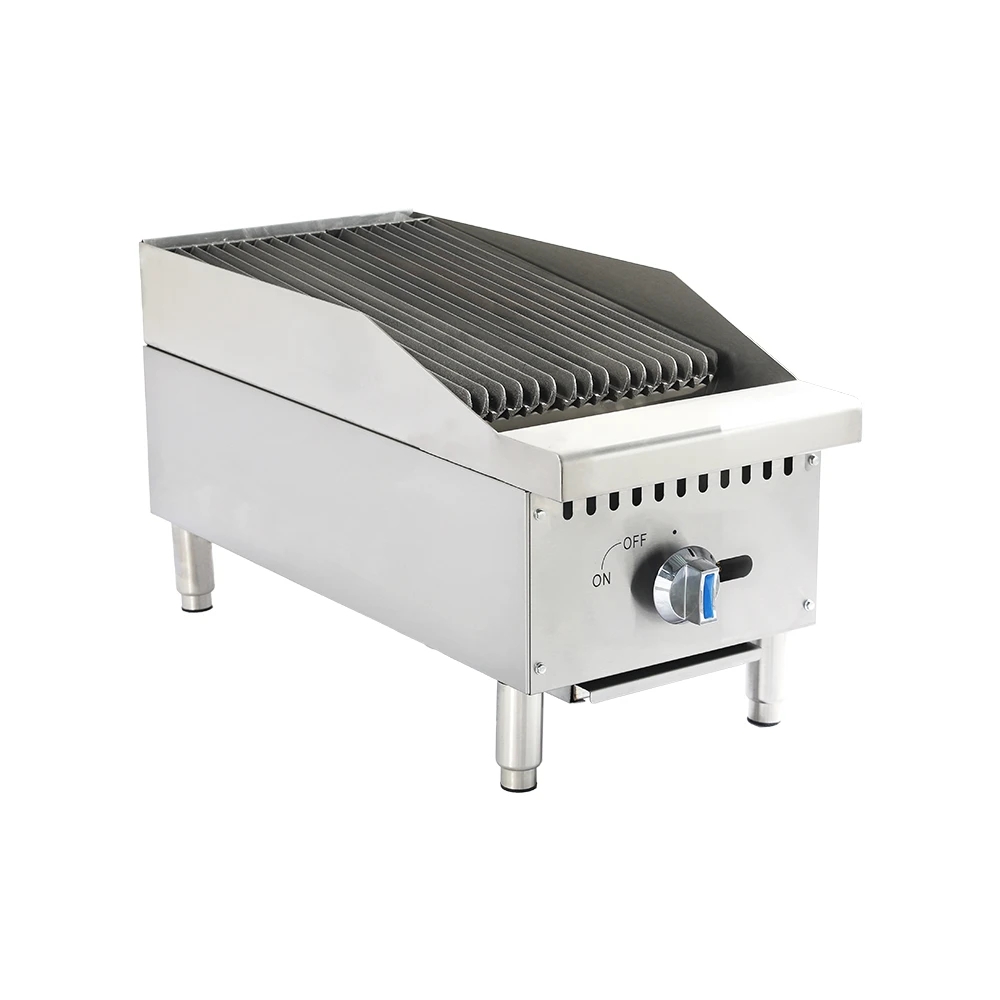

HSD -SG-14 |
HSD-SG-24 |

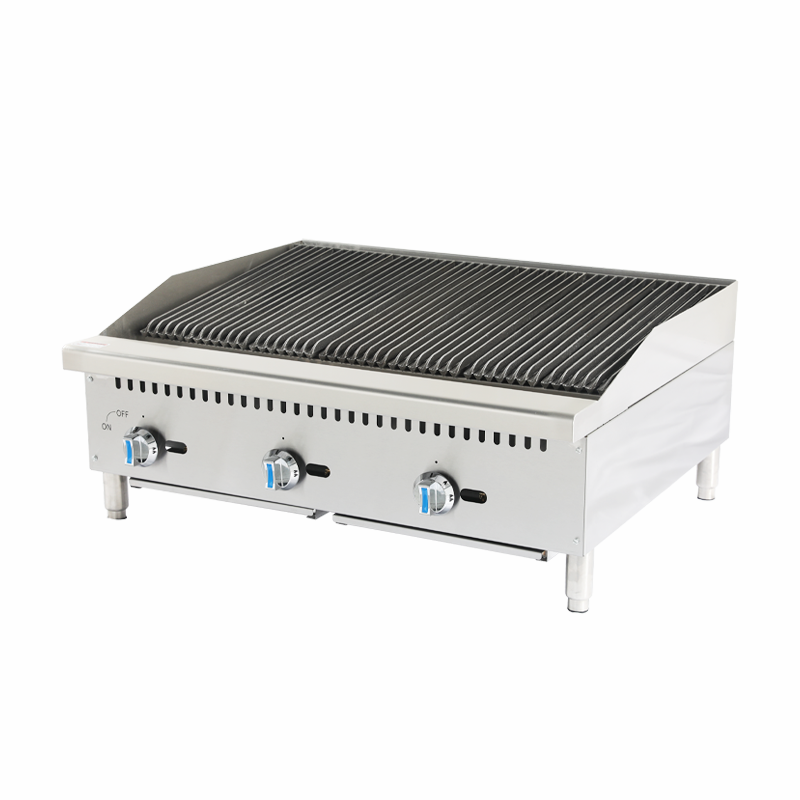

HSD-SG-36 |
HSD-SG-48 |

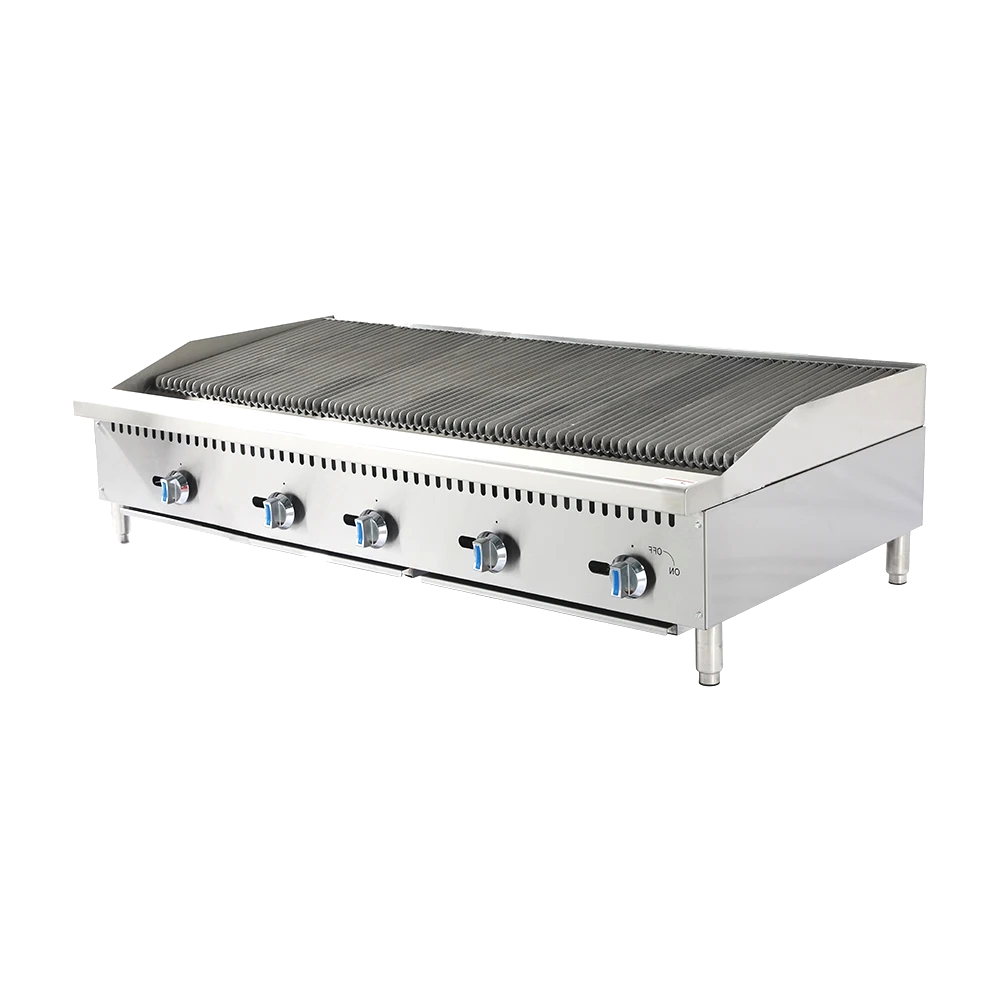

HSD-SG-60 |
| Burners | 1 |
2 |
3 |
4 | 5 |
|
Gas Supply |
30,000 BTU | 60,000 BTU | 90,000 BTU | 120,000 BTU | 150,000 BTU |
| Manifold Pressure (NG/LP) | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C |
| Exterior Dimensions (inch)(W×D×H) | 12"×29.8"×15.6" | 24"×29.8"×15.6" | 36"×29.8"×15.6" | 48"×29.8"×15.6" |
60"×29.8"×15.6" |
|
N.W.(lbs) |
68 | 143 | 175 | 228 |
286 |
|
G.W.(lbs) |
97 | 182 | 230 | 303 | 374 |
