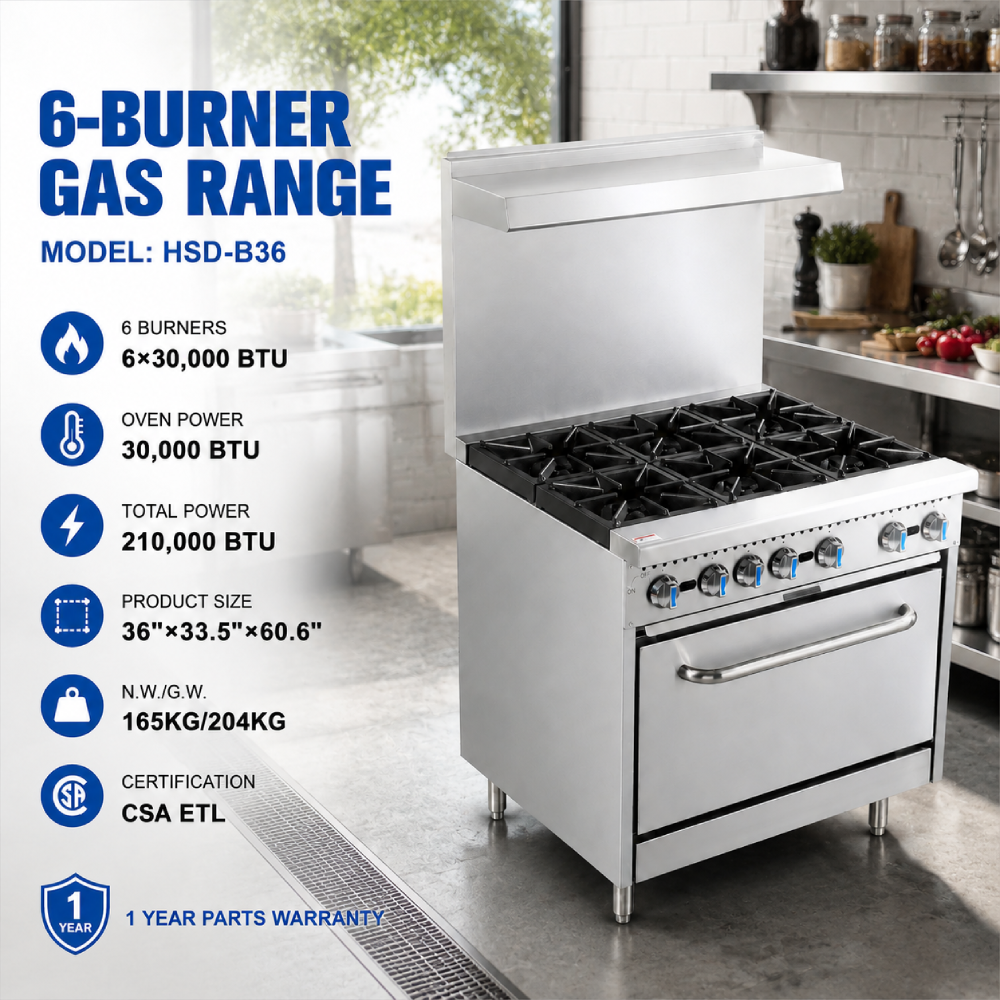

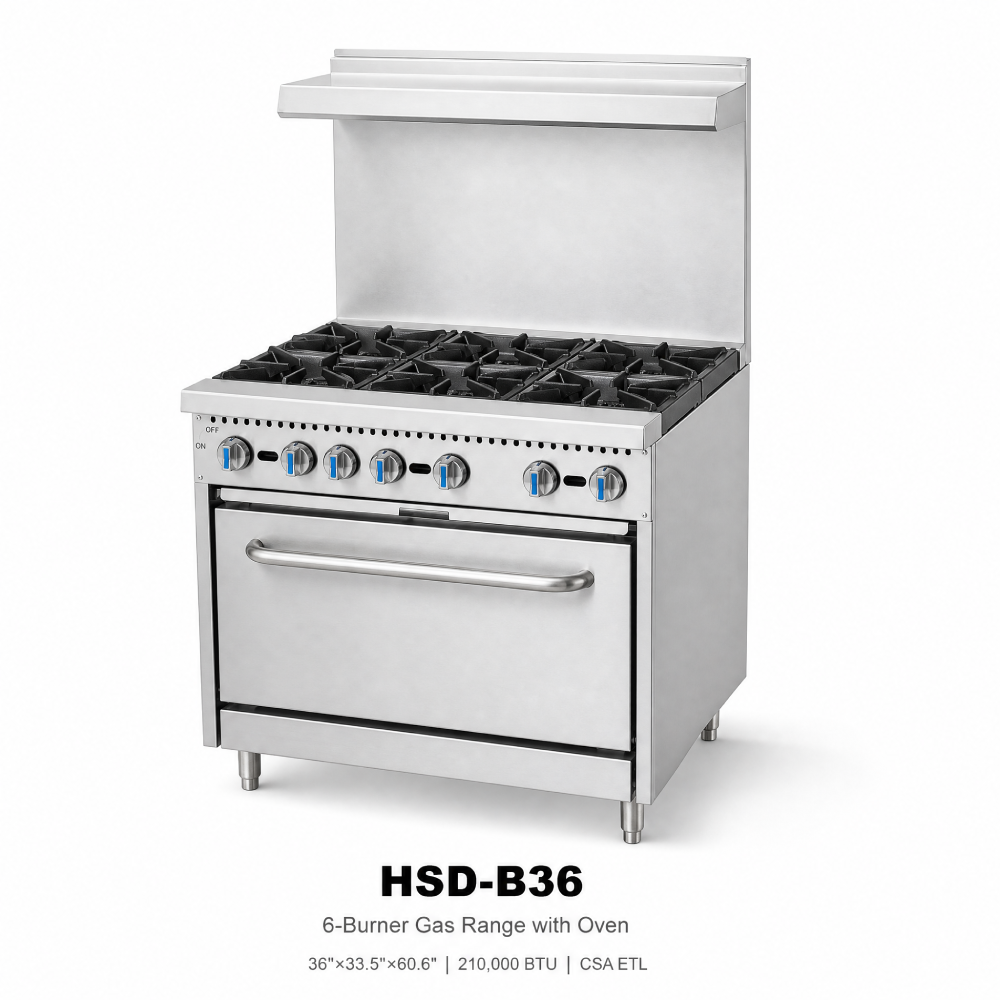

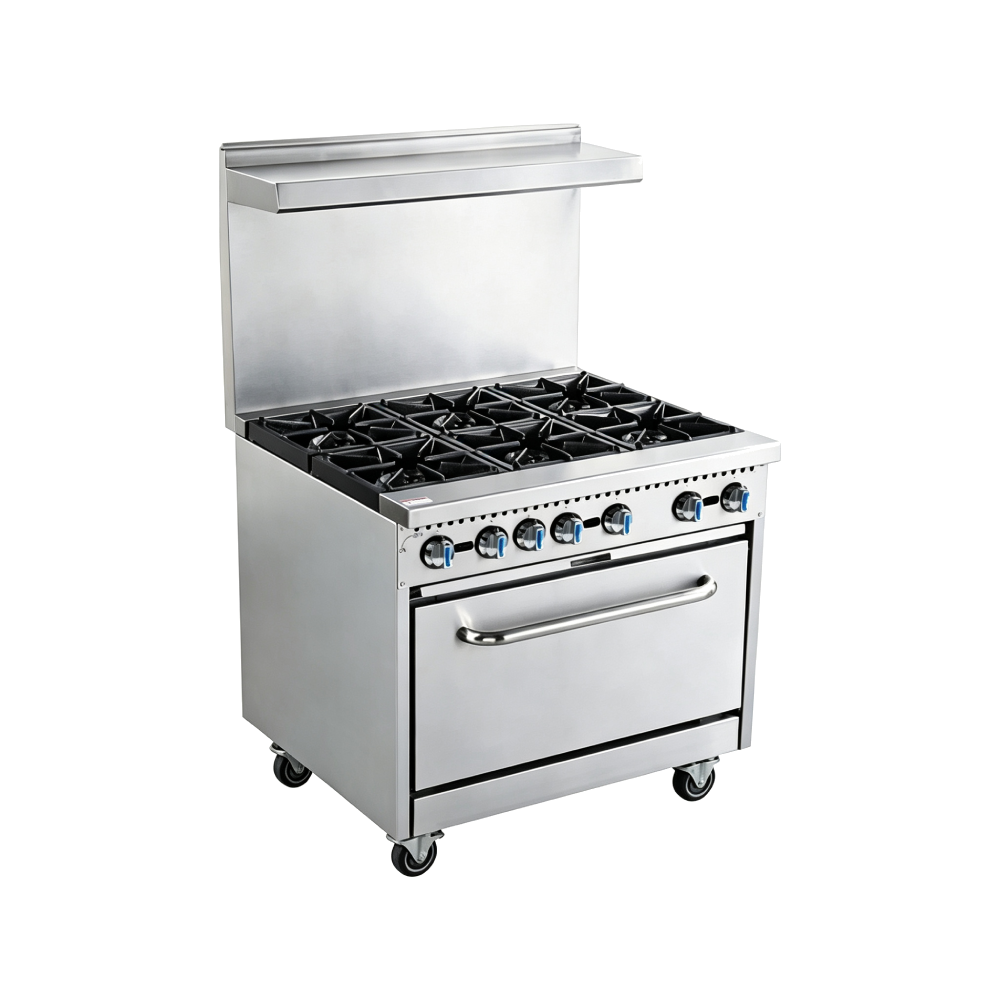

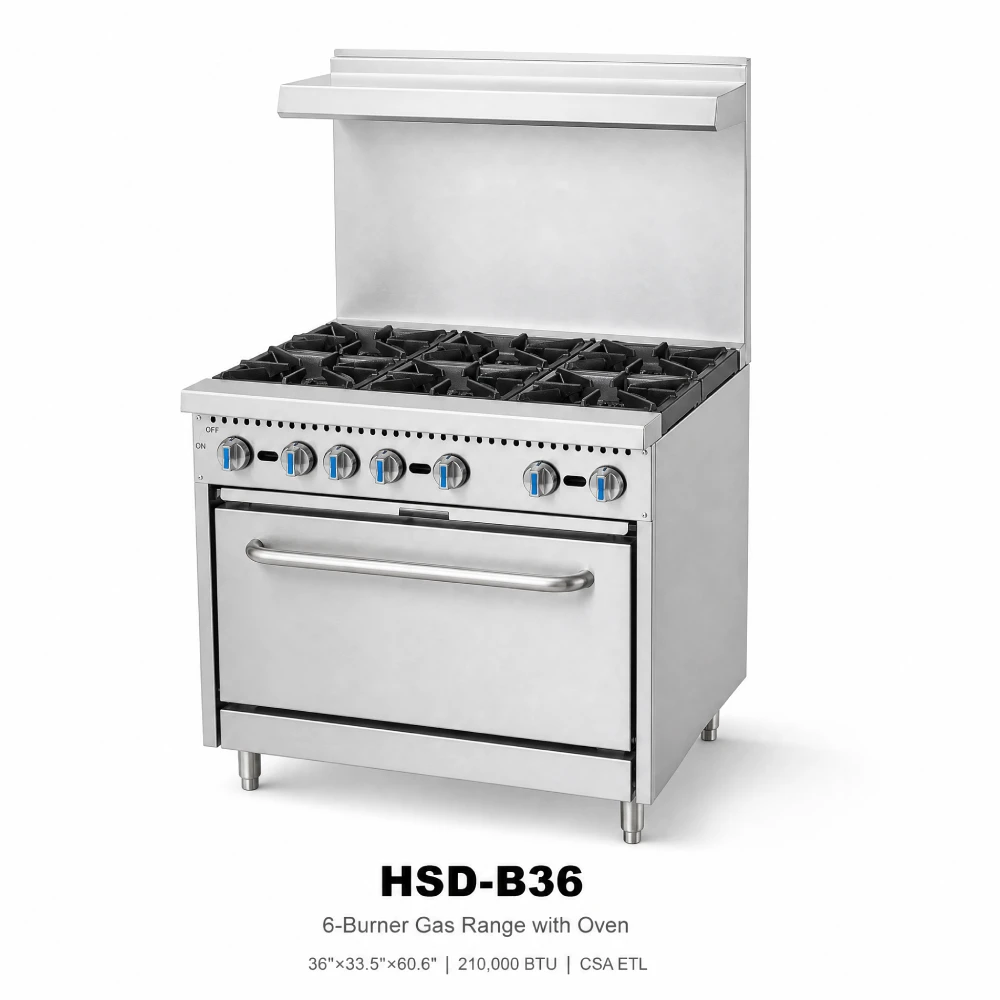

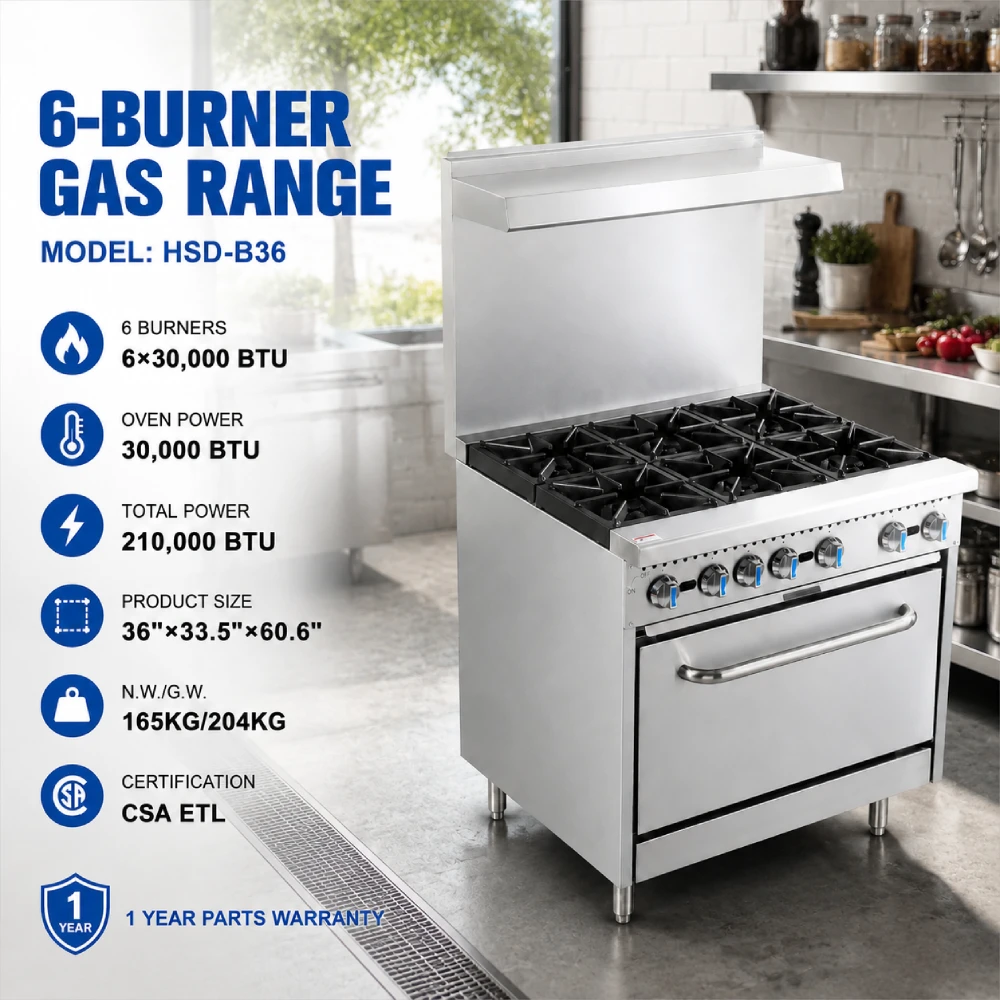

6-Burner Gga Range With Oven
6-Burner Gga Range With Oven
6-Burner Gga Range With Oven

6-Burner Gga Range With Oven

The HSD-B36 is a commercial gas cooktop equipped with six burners. Each burner can be controlled independently. A gas oven with a power output of 21,000 BTU/hour is located at the bottom of the cooktop.

Product Number: HSD-B36

Number of Burners: 6

Product Dimensions: 915*851*1540 mm

Energy Type: Gas and LPG

Specifications Photo & Video

Specification Sheet

vocook-gas-range-with-oven-hsd-b36-spec-sheet.pdf
Download

Manuals

manual-vocook-gas-rangeoven.pdf
Download

Specifications

Specification Details Specification Details

Model

 HSD-B36

Product Name

 six-burner Gas Stove (with Oven)

Number of Burners

 6

Burn Power (BTU)

 6*30000BTU

Oven Power (BTU)

 1*30000BTU

Material

 Stainless Steel

Total Output Power

 210000BUT

Temperature

 250°F-500°F

Product Size (mm/inch)

 915*851*1540mm (36"x33.5"x60.6")

Packing Size (mm/inch)

 975*936*1145mm (38.38"x36.85"x45.08")

Net Weight

 165kg

Applications

 Boiling, Stir-frying, Simmering, Baking



Commercial Six-Burn Gas Stove with Oven

This product is designed specifically for restaurants, hotels, canteens, and catering service providers, combining six independent high-power burners with a high-power gas oven into one unit. The upper burners can simultaneously perform various cooking operations such as stir-frying, frying, deep-frying, and stewing, while the lower oven can meet the needs of baking, roasting, and heat preservation.



6-Burner Gga Range With Oven

6 Stove Gas Range Cooker

●Heavy duty gas burner with individual switch and thermostat.

● Heavy duty removable cast iron grates(12"x12") for easy cleaning.

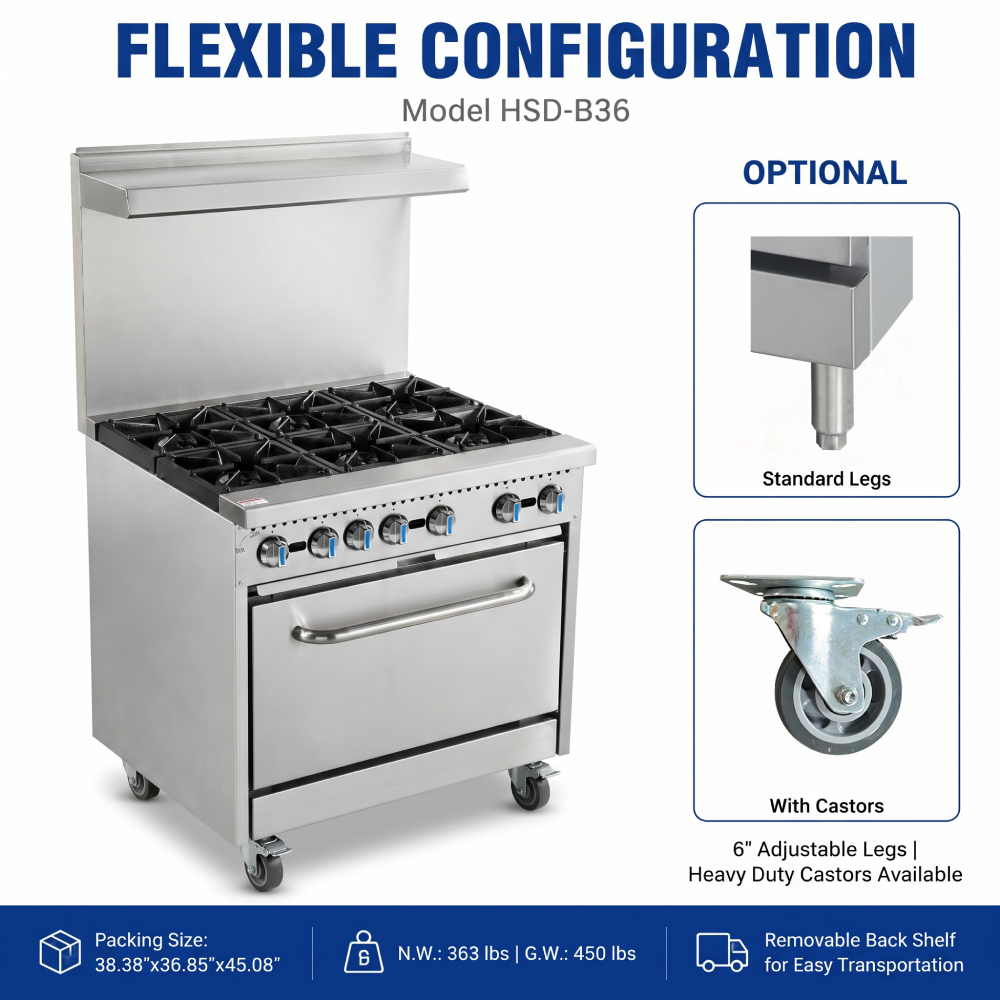

● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.

● Stainless steel pilot for durability.

● Open top burners, each 30,000BTU/Hr

● Temperature range for oven from 250F-550 F

● Easy conversion from NG to LPG and vice versa,

● Optional with castors.

● Key components have CSAETL certificate.

Independent Ignition System

This cooking stove features six independent stainless steel ignition points, designed specifically to meet the needs of any kitchen. Constructed from premium stainless steel, it is durable and ensures long-lasting, reliable performance. Choosing the HSD-B36 means you not only have exceptional cooking capabilities but also the durability and efficiency your busy kitchen demands.

6-Burner Gga Range With Oven

Gas Stove with Oven

The HSD-B36 features a large-capacity gas oven (integrated oven cavity) with a high-efficiency combustion system and precise temperature control technology, ensuring rapid and even heating. Whether baking pasta, pizza, or making bread and desserts, it handles it all with ease. The cooktop is made entirely of stainless steel (adjustable shelves), making it sturdy, durable, and easy to clean, ideal for medium to large-sized restaurants, hotels, and bakeries.



Model

 4-Burner Gga Range With Oven

HSD-B24

4-Burner Gga Range With Oven

HSD-B36

4-Burner Gga Range With Oven

HSD-B60

TOP Burners

4

6

6

OVEN BURNERS

1 1 2

Power

30,000 BTU*4 30,000 BUT*6 30,000 BUT*10

Oven Burner Output

30,000 BUT 30,000 BUT 30,000 BUT*2
Gas Supply Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)

Gas Inlet Pressure (NG/LP)

5'' W.C.
10'' W.C.
5'' W.C.
10'' W.C.
5'' W.C.
10'' W.C.
Orifice Size (NG/LP) #39(Φ2.53mm)   #52(Φ1.68mm)

#39(Φ2.53mm)  #52(Φ1.68mm)

#39(Φ2.53mm)   #52(Φ1.68mm)

Exterior Dimension (W×D×H)

24'' x 32.5'' x 60.3'' 36'' x 32.5'' x 60.3'' 60'' x 32.5'' x 60.3''

N.W.(lbs)

267 363 621

G.W.(lbs)

335 450 727
