6 Burner Gas Range With Griddle&Oven
6 Burner Gas Range With Griddle&Oven
6 Burner Gas Range With Griddle&Oven
6 Burner Gas Range With Griddle&Oven
6 Burner Gas Range With Griddle&Oven

6 Burner Gas Range With Griddle&Oven

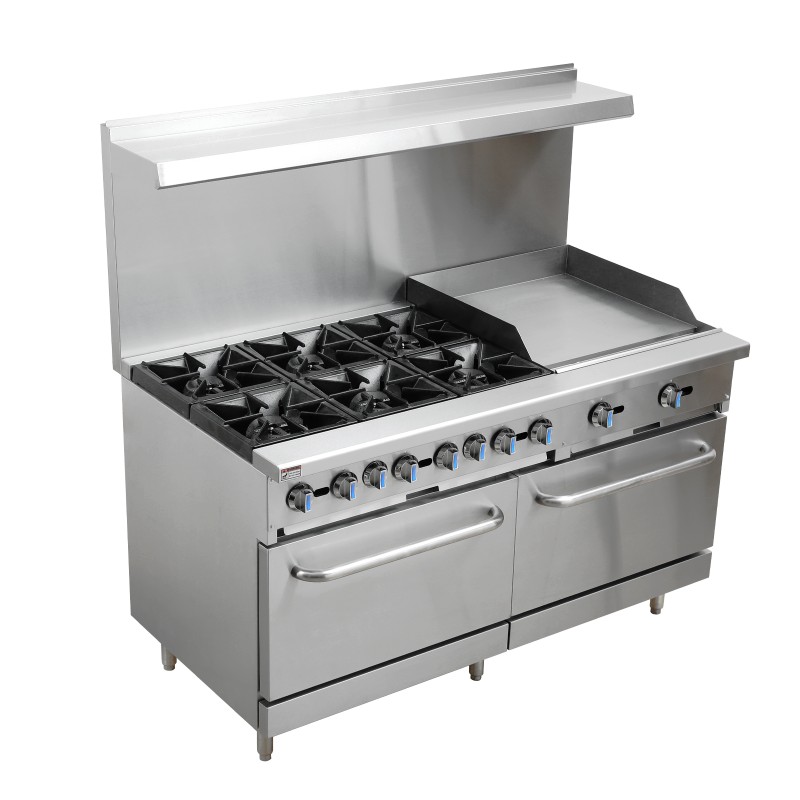

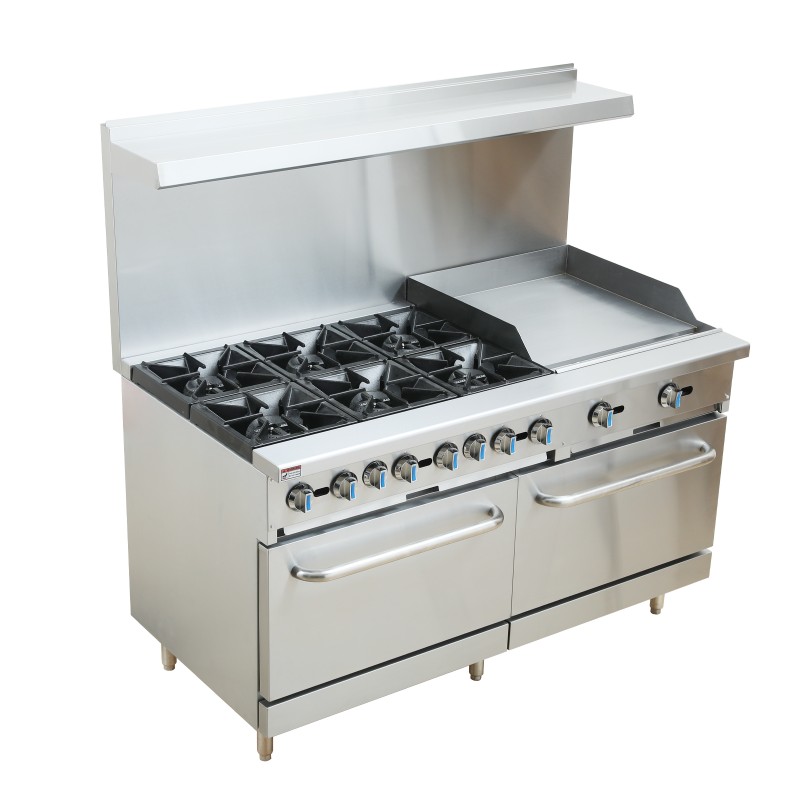

This is a commercial gas combination cooktop designed specifically for commercial kitchens such as restaurants, cafes, and fast-food chains. It can simultaneously meet the following needs: Open flame cooking: 6 gas burners for stir-frying, simmering, and frying; Grilling: A 24-inch grill pan on the right side for grilling steaks, pancakes, and teppanyaki; Baking/warming: A large-capacity oven at the bottom for baking bread, roasting meats, and keeping food warm.

Model: HSD-B60-G24

Number of Burners: 6

Product Dimensions: 1525 x 851 x 1540 mm

Fuel Type: Natural Gas and LPG

Specifications Photo & Video

Specification Sheet

vocook-gas-range-with-griddleoven-hsd-b60-g24- spec-sheet.pdf
Download

Manuals

manual-vocook-gas-rangegriddleoven.pdf
Download

Specifications

Specification Details Specification Details

Model

HSD-B60-G24

Product Name

6-Burner Gas Range (with 24-inch Griddle and Oven)

Number of Burners

6

Griddle Size

24 inches

Griddle Power

2 x 30,000 BTU

Burner Power (BTU)

6 × 30,000 BTU

Oven Power (BTU)

2 × 30,000 BTU

Material

Stainless Steel

Total Power Output

300,000 BTU

Temperature Range

250°F - 550°F

Product Dimensions (mm/inch)

1525 x 851 x 1540 mm (60" × 33. 5" × 60. 6")

Packaging Dimensions (mm/inch)

1585 x 936 x 1145 mm (62. 4" × 36. 85" × 45. 08")

Net Weight

310 kg

Applications

Boiling, stir-frying, stewing, griddling, roasting/baking

6-Burner Commercial Gas Range with 24-Inch Griddle and Oven

The HSD-B60-G24 is a commercial 6-burner gas cooktop with a 24-inch frying pan and built-in oven. With a power output of up to 30,0000 BTU, it is designed for restaurants, hotels, and other food service establishments. Suitable for a variety of cooking methods, including boiling, stir-frying, grilling, baking, and roasting.

Standard Acessories

  • One (1) set of heavy-duty cast iron top grates

  • Four (4) heavy-duty casters for easy mobility

  • One (1) removable stainless steel drip tray

  • One (1) set of natural gas (NG) orifice (pre-installed)

  • One (1) set of liquid propane (LP) conversion kit

  • One (1) gas pressure regulator

  • Installation and operation manual

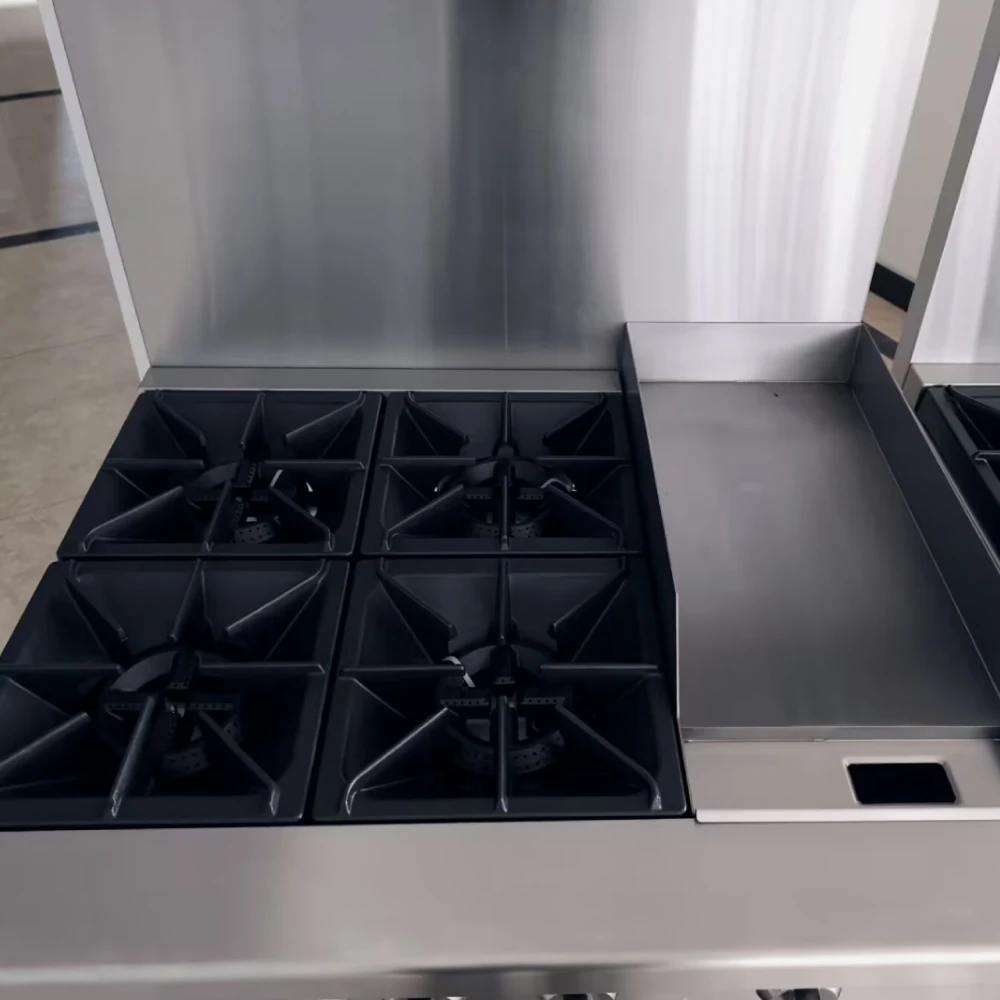

6 burner gas range with 24''griddle&oven

Gas Range with  Griddle&Oven

● Heavy duty gas burner with individual switch and thermostat.

● Heavy duty removable cast iron grates(12"x12") for easy cleaning.

● Open top burners, each 30,000BTU/Hr

●3/4" thickness griddle plate, U-shaped burner.

●6 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.

●Stainless steel pilot for durability.

●Temperature range for oven from 250 F -550 F

●Easy conversion from NG to LPG and vice versa,

● Stainless steel crumb tray with rounded edges

●Optional with castors.

4 Burner Gas Range with 12''Griddle&Oven

24-inch griddle plate

Sixhigh-powered gas burners meet your various cooking needs, including stir-frying, stewing, braising, and boiling; the built-in flat grill pan can be used to sear steaks, burgers, pancakes, patties, and other delicious dishes. The burners and grill pan can be used simultaneously.

4 Burner Gas Range with 12''Griddle&Oven

Gas Cooktop with Integrated Oven

The HSD-B60-G24 gas cooktop features a large-capacity integrated oven, employing a high-efficiency combustion system and precise temperature control technology to ensure rapid and even heating. Whether baking pasta, pizza, or making bread and desserts, it handles it all with ease. The cooktop is made entirely of stainless steel (with adjustable shelves), making it sturdy, durable, and easy to clean, ideal for medium to large-sized restaurants, hotels, and bakeries.



Related Models
To meet the needs of kitchens of various sizes, this commercial gas stove series offers additional models for you to choose from.

Model

 四眼燃气灶,带12英寸煎盘和烤箱

HSD-B36-G12

四眼燃气灶,带12英寸煎盘和烤箱

HSD-B36 G24

四眼燃气灶,带12英寸煎盘和烤箱

HSD-B60-G24

四眼燃气灶,带12英寸煎盘和烤箱

HSD-B60-G24S

Top Burners

4

2

6

6
Oven Burners 1 1 2 2

Top Burner Output

30,000 BTU*4 30,000 BTU*2 30,000 BTU*6 30,000 BTU*6

Oven Burner Output

30,000 BTU 30,000 BTU 30,000 BTU*2 30,000 BTU*2

Griddle Output

30,000 BTU 30,000 BTU*2 30,000 BTU*2 12,000  BTU*3
GAS TYPE Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)
Gas Inlet Pressure (NG/LP) #42(Φ2.40mm) #52(Φ1.68mm) #42(Φ2.40mm) #52(Φ1.68mm)

#42(Φ2.40mm) #52(Φ1.68mm)

#42(Φ2.40mm) #52(Φ1.68mm)
Hot Plate Orifice Size (NG/LP) #52(Φ1.68mm) #56(Φ1.12mm) #52(Φ1.68mm) #56(Φ1.12mm) #52(Φ1.68mm) #56(Φ1.12mm) #52(Φ1.68mm) #56(Φ1.12mm)
Griddle Orifice Size (NG/LP) #33(Φ2.90mm) #52(Φ1.68mm) #33(Φ2.90mm) #52(Φ1.68mm) #33(Φ2.90mm) #52(Φ1.68mm)

#33(Φ2.90mm) #52(Φ1.68mm)

Exterior Dimension (W×D×H) 36'' x 33.5'' x 60.6'' 36'' x 33.5'' x 60.6'' 60'' x 33.5'' x 60.6'' 60'' x 33.5'' x 60.6''

N.W.(lbs)

403 412 683 720

G.W.(lbs)

474 487 798 835



 FAQ
1. Can the fuel type be switched between Natural Gas (NG) and Liquefied Petroleum Gas (LPG)?
— Yes, conversion accessories are included with the unit.
2. Are casters available as an option for this gas range?
— Yes, heavy-duty casters are available as an option to facilitate the movement and reconfiguration of kitchen equipment.
3. What is the operating temperature range of the built-in oven?
— The built-in oven features an adjustable temperature range of 250°F to 550°F, suitable for various baking and roasting needs.
3. Can the grates and drip tray be removed for cleaning?
— The cast-iron grates and stainless steel drip tray (with rounded corners) are fully removable, making deep cleaning and maintenance easy.
4. Does this commercial gas range support OEM/ODM customization?
— Yes, OEM and ODM customization services are available; please submit an inquiry form if you require branding customization or specific functional modifications.
5. How can I obtain information on the Minimum Order Quantity (MOQ), lead times, and factory wholesale pricing?
— Please submit an inquiry to receive technical specifications, production lead times, and wholesale price quotes.
