Home / Product / Cooking Range / Gas Cooking Range / 4-Burner Gga Range With Oven

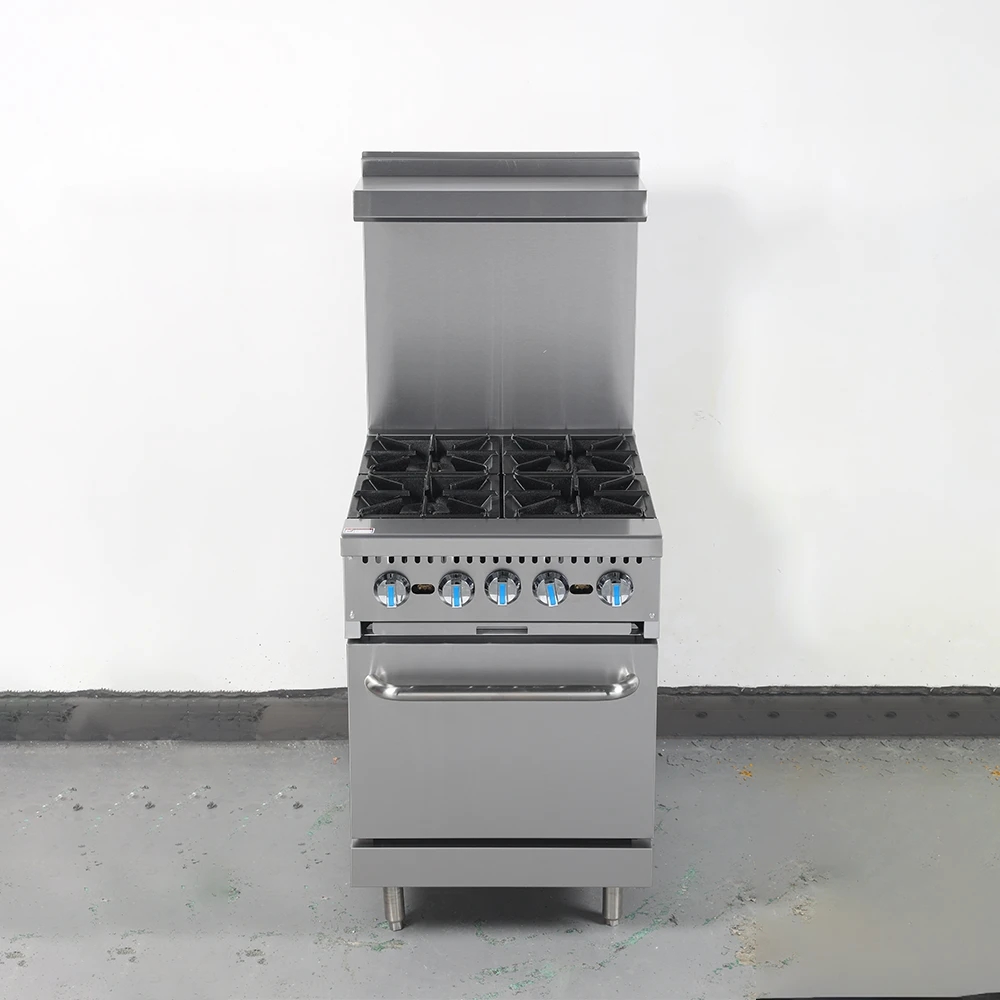

4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven
4-Burner Gga Range With Oven

4-Burner Gga Range With Oven

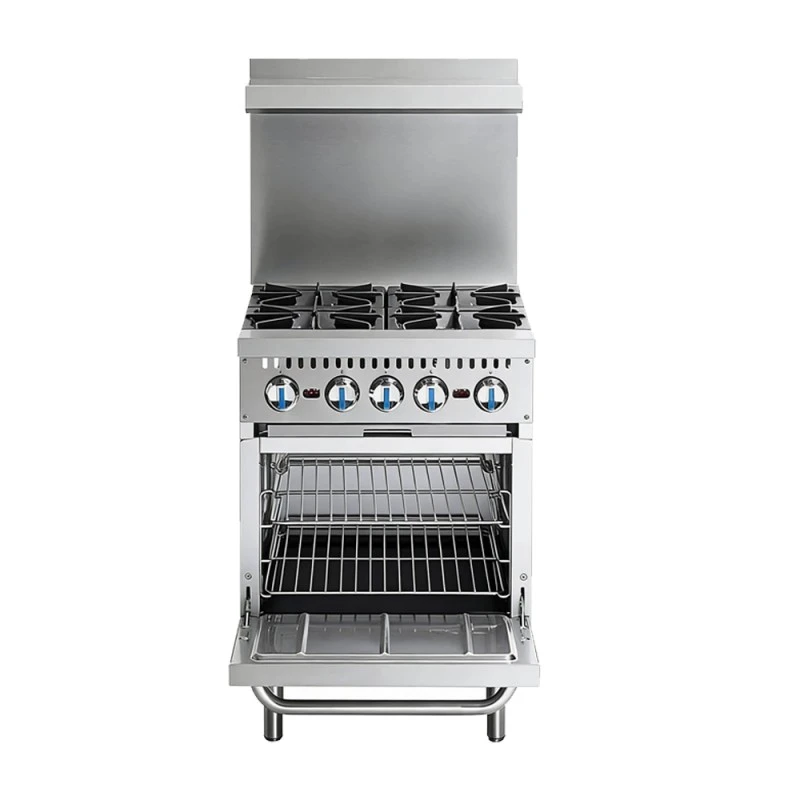

Commercial gas cooktop with 4 burners. Each burner is independently controllable. A gas oven with a capacity of 30,000 BTU/h is located at the bottom.

Product Number: HSD-B24

Number of Burners: 4

Product Dimensions: 610*851*1540 mm / 24*33.5*60.6 inches

Energy Type: Gas and LPG

Specifications Photo & Video

Specification Sheet

vocook-gas-range-with-oven-hsd-b24-spec-sheet.pdf
Download

Manuals

manual-vocook-gas-rangeoven.pdf
Download

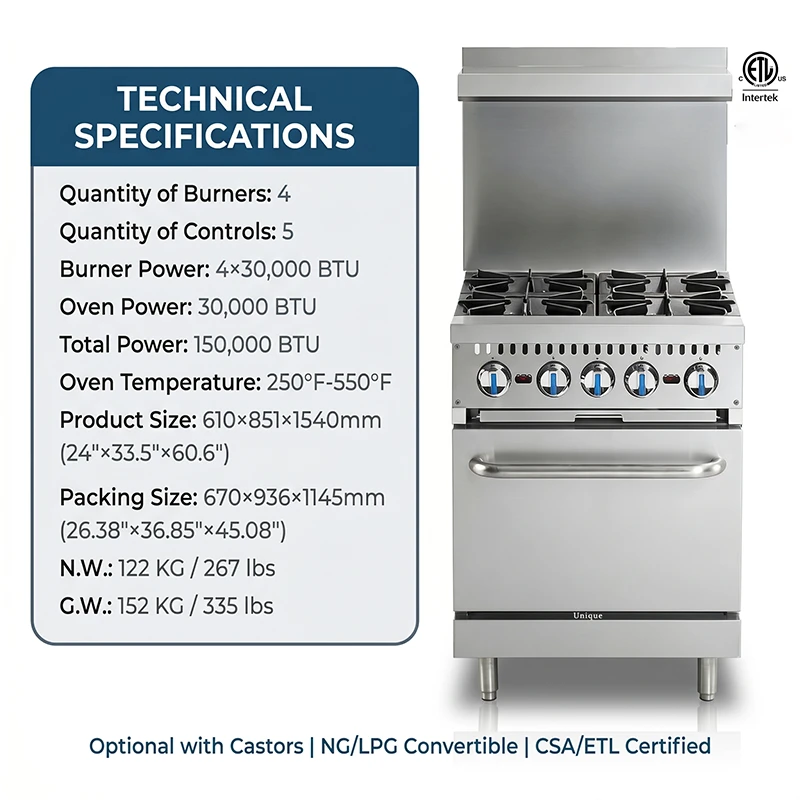

Specifications

Specification Details Specification Details

Model

 HSD-B24

Product Name

Four-burner Gas Stove (with Oven)

Number of Burners

 4

Burn Power (BTU)

 4*30000BTU

Oven Power (BTU)

1*30000BTU

Material

Stainless Steel

Total Output Power

150000BUT

Temperature

250°F-500°F

Product Size (mm/inch)

610x851x1540mm 24"x33.5"x60.6"

Packing Size (mm/inch)

670x936x1145mm 26.38"x36.85"x45.08"

Net Weight

122kg

Applications

 Boiling, Stir-frying, Simmering, Baking



Commercial 4-Burn Gas Stove with Oven

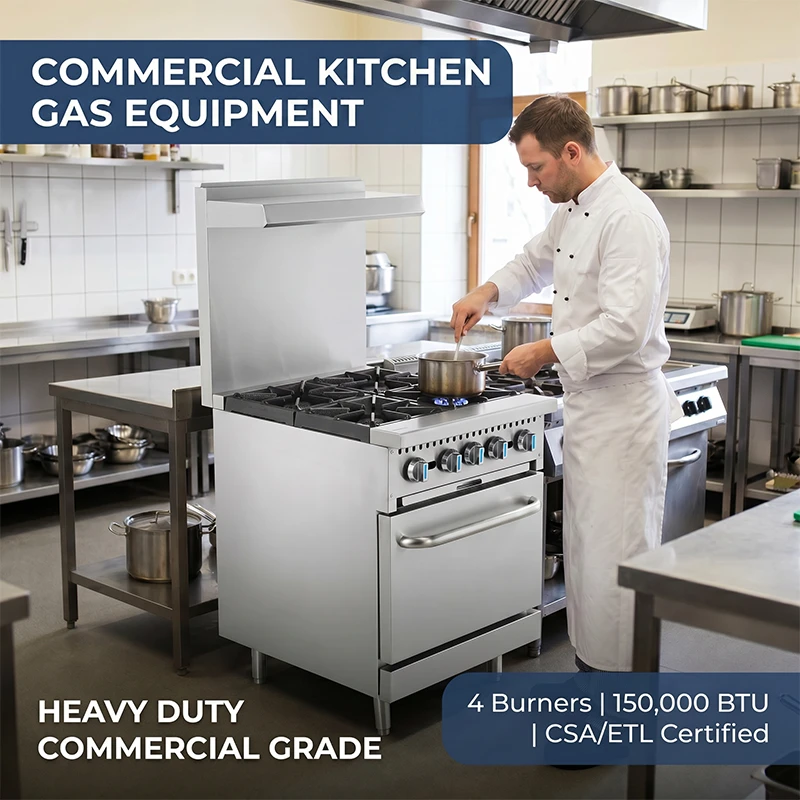

This product is designed specifically for restaurants, hotels, canteens, and catering service providers, combining four independent high-powered burners with a high-powered gas oven into one unit. The upper part allows for simultaneous stir-frying, pan-frying, deep-frying, stewing, and other cooking operations, while the lower oven meets needs for baking, roasting, and heat preservation.

Standard Acessories

  • One (1) set of heavy-duty cast iron top grates

  • Four (4) heavy-duty casters for easy mobility

  • One (1) removable stainless steel drip tray

  • One (1) set of natural gas (NG) orifice (pre-installed)

  • One (1) set of liquid propane (LP) conversion kit

  • One (1) gas pressure regulator

  • Installation and operation manual



4-Burner Gga Range With Oven

4 Stove Gas Range Cooker

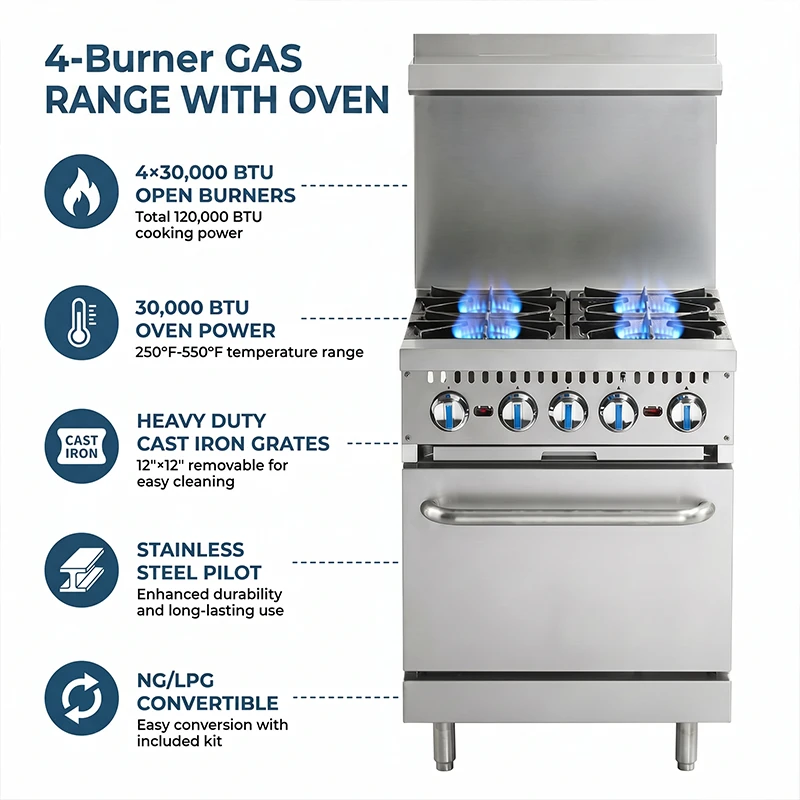

●Heavy duty gas burner with individual switch and thermostat.

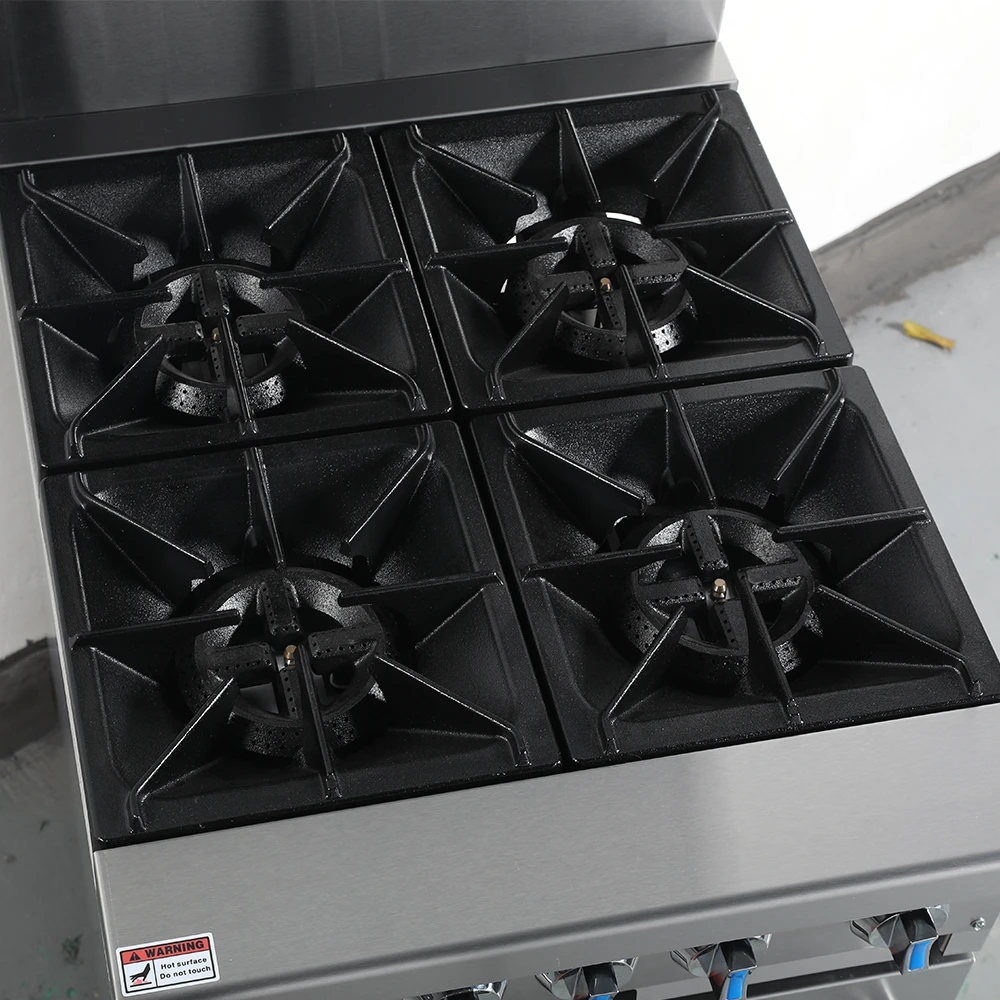

● Heavy duty removable cast iron grates(12"x12") for easy cleaning.

● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.

● Stainless steel pilot for durability.

● Open top burners, each 30,000BTU/Hr

● Temperature range for oven from 250F-550 F

● Easy conversion from NG to LPG and vice versa,

● Optional with castors.

● Key components have CSAETL certificate.

4-Burner Gga Range With Oven

Gas Range with Oven

The HSD-B24 is equipped with a large-capacity gas oven, featuring a high-efficiency combustion system and precise temperature control technology for rapid heating and even heat distribution. Whether baking pasta, pizza, or making bread and desserts, it can handle it all with ease. Constructed entirely of stainless steel, it is sturdy, durable, and easy to clean, making it an ideal choice for medium to large-sized restaurants, hotels, and bakeries.

4-Burner Gga Range With Oven

Independent Ignition System

This cooker features four independent stainless steel ignition units, designed specifically to meet the needs of commercial kitchens. Constructed from premium stainless steel, these units are durable and ensure long-lasting, reliable performance. Choosing the HSD-B24 means you not only have superior cooking capabilities, but also the durability and efficiency required in a busy kitchen.



Gas Range with Oven (same product)

Model

 4-Burner Gga Range With Oven

HSD-B24

4-Burner Gga Range With Oven

HSD-B36

4-Burner Gga Range With Oven

HSD-B60

TOP Burners

4

6

6

OVEN BURNERS

1 1 2

Power

30,000 BTU*4 30,000 BUT*6 30,000 BUT*10

Oven Burner Output

30,000 BUT 30,000 BUT 30,000 BUT*2
Gas Supply Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)
Naural Gas(NG)
Liquid Propane(LP)

Gas Inlet Pressure (NG/LP)

5'' W.C.
10'' W.C.
5'' W.C.
10'' W.C.
5'' W.C.
10'' W.C.
Orifice Size (NG/LP) #39(Φ2.53mm)
#52(Φ1.68mm)
#39(Φ2.53mm)
#52(Φ1.68mm)
#39(Φ2.53mm)
#52(Φ1.68mm)

Exterior Dimension (W×D×H)

24'' x 32.5'' x 60.3'' 36'' x 32.5'' x 60.3'' 60'' x 32.5'' x 60.3''

N.W.(lbs)

267 363 621

G.W.(lbs)

335 450 727
