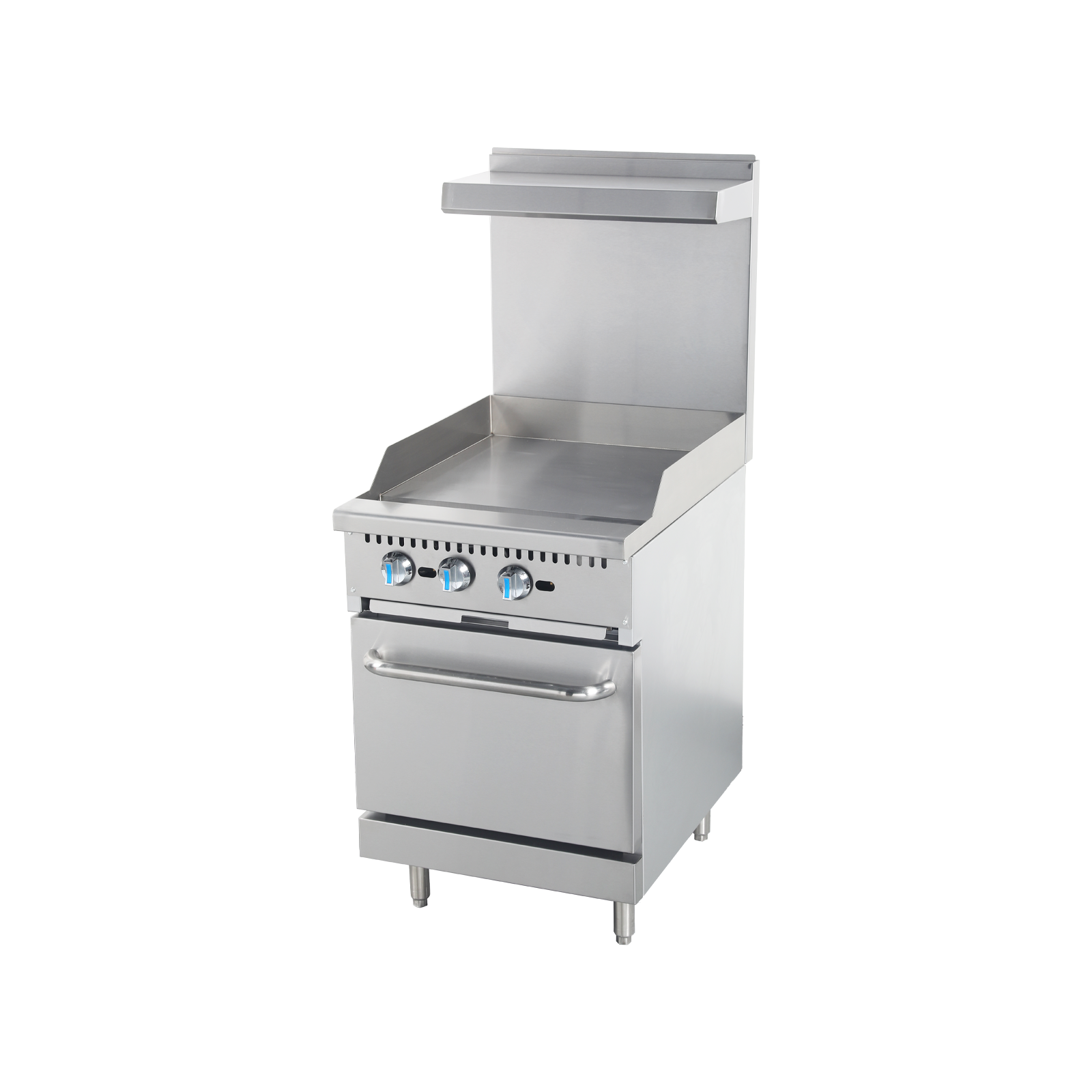

This 24-inch commercial gas baking pan is designed for professional kitchens. It features two burners with an enamel-coated bottom and a power output of up to 90,000 BTU per hour. The machine is thermostat controlled.
Brand: Unique
Model: HSD-P24
Number of burners: 2
Power: 90,000 BTU
Dimensions: 610 x 851 x 1540 mm — 24" x 33.5" x 60.6"
Fuel type: Natural gas
Specifications
| Specification | Details | Specification | Details |
|
Model |
HSD-P24 |
Product Name |
24-inch Gas Griddle with Oven |
|
Material |
Stainless Steel |
Number of Burners |
2 |
|
Number of Control Knobs |
3 |
Burner Power (BTU) |
2 x 30,000 BTU |
|
Oven Power (BTU) |
1 x 30,000 BTU |
Griddle Power (BTU) |
90,000 BTU |
|
Total Power (BTU) |
90,000 BTU |
Product Dimensions (mm/inch) |
610 x 851 x 1540 mm — 24" x 33.5" x 60.6" |
|
Packaging Dimensions (mm/inch) |
670 x 936 x 1145 mm — 26.38" x 36.85" x 45.08" |
Net Weight (kg/lbs) |
134.5 kg / 296 lbs |
|
Gross Weight (kg/lbs) |
164.5 kg / 363 lbs |
Applications |
Griddling, Oven Baking |

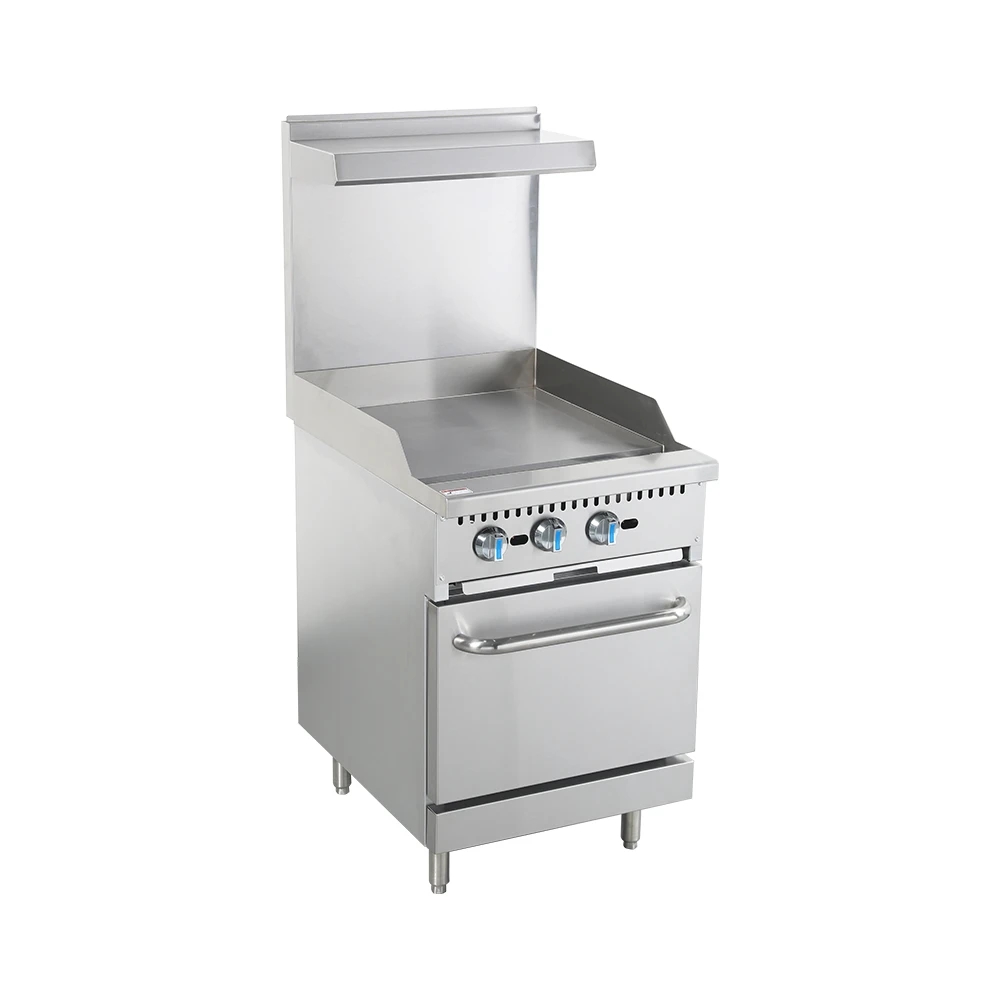

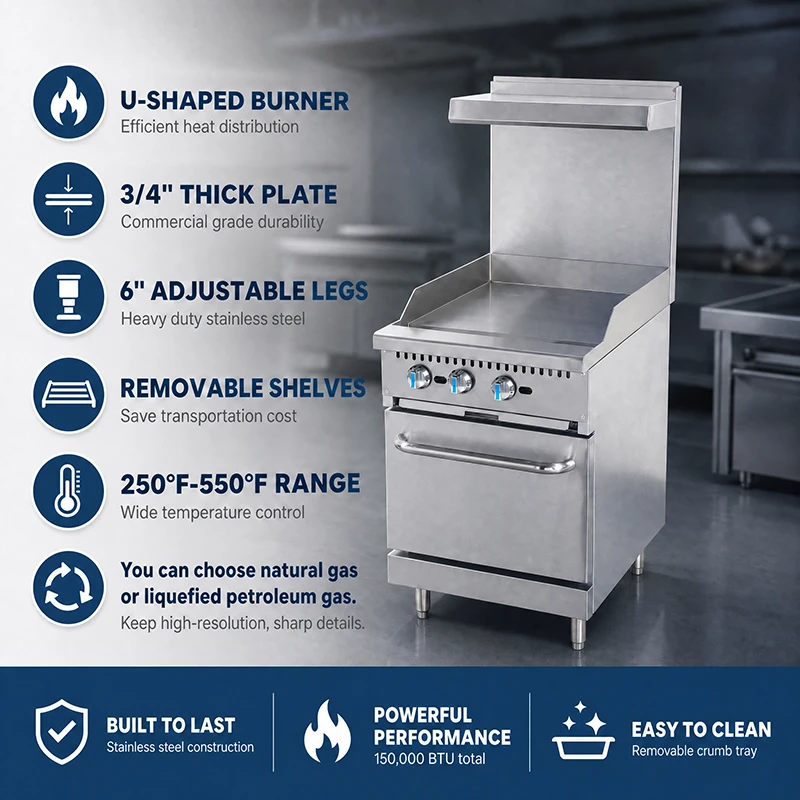

The HSD-P24 is a 24-inch commercial gas-powered baking pan oven that combines a large flat baking pan with a temperature-controlled oven, offering a variety of cooking functions.
The 3/4-inch thick baking pan is powered by two U-shaped burners. The all-in-one oven has a temperature range of 250°F to 550°F for baking, roasting, finishing, and other cooking. The HSD-P24 has a total rated output of 90,000 BTU, adjustable heavy-duty legs, a removable rear shelf, and a stainless steel crumb tray.

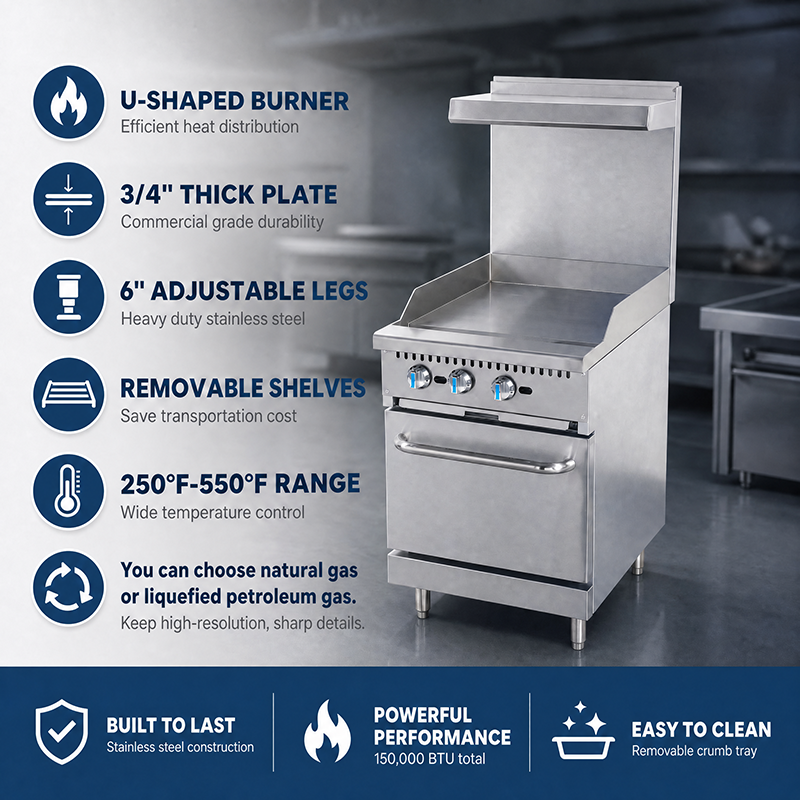

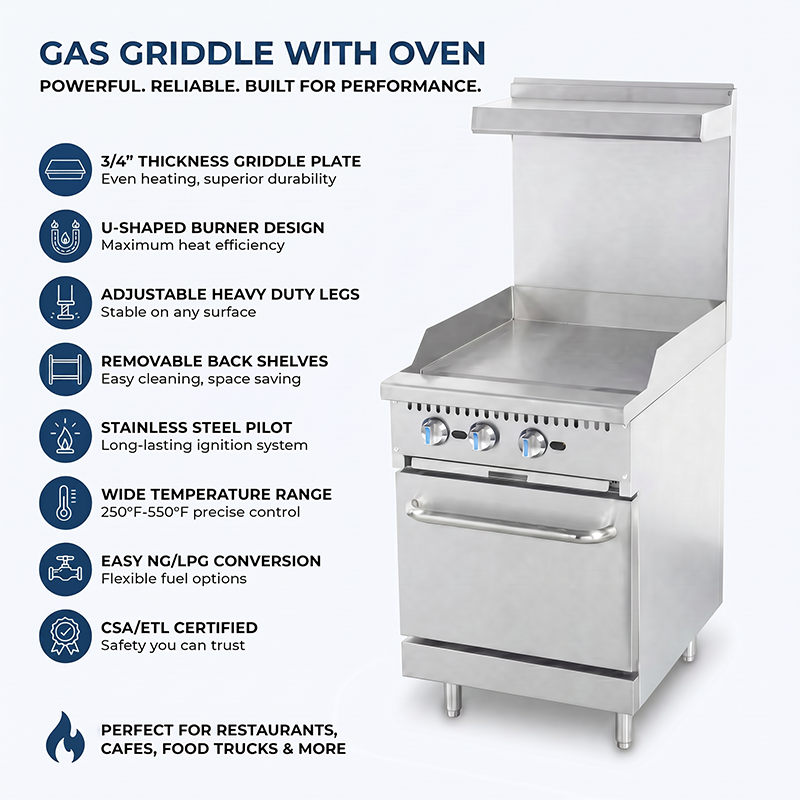

●3/4" thickness griddle plate, U-shaped Burner.
● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
● Stainless steel pilot for durability.
● Temperature range for oven from 250 F -550 F.
● Easy conversion from NG to LPG and vice versa.
●Stainless steel crumb tray with rounded edges.
● Optional with castors.
●Key components have CSA/ETL certificate.
Independent Temperature Control System
Independent Temperature Control System
Commercial countertop gas griddle with oven
combines superior performance with ease of use. The independent temperature control system allows operators to precisely control the required cooking temperature, ensuring consistent cooking results.

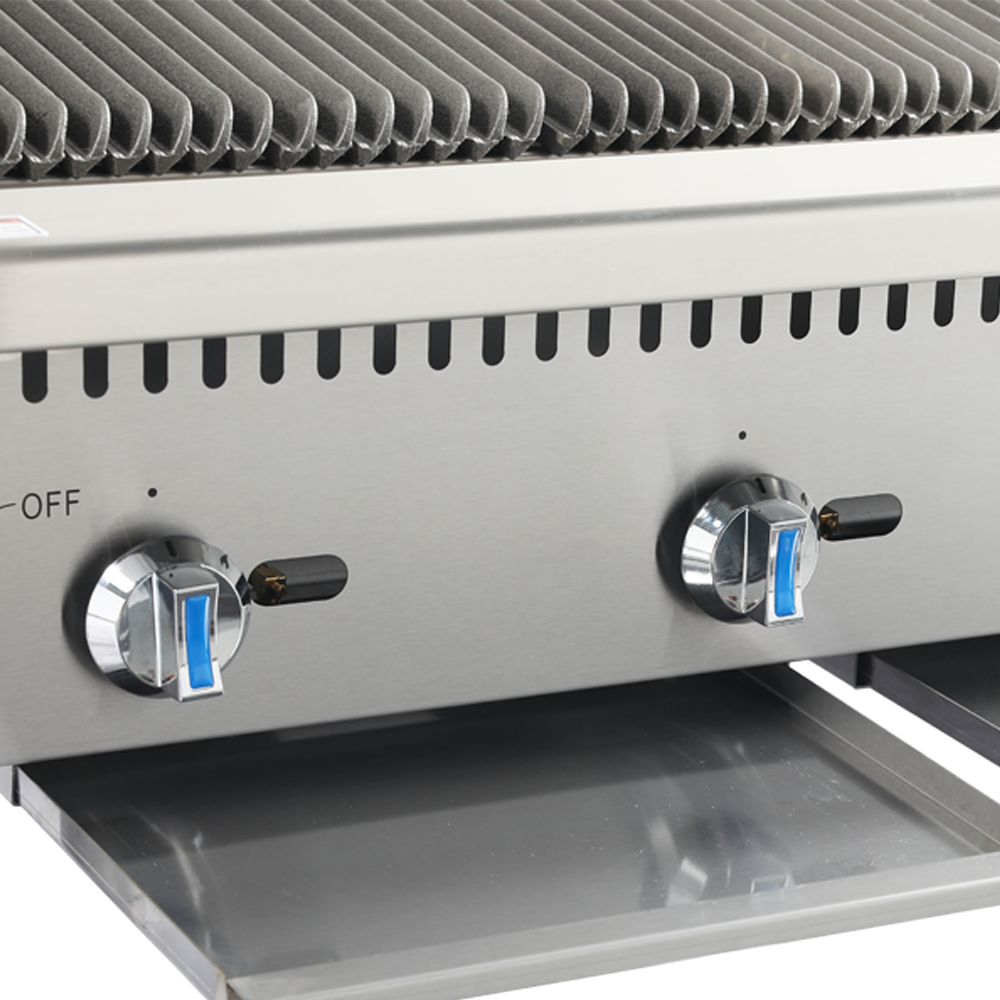

Crumb Tray/Oil Dish
To improve kitchen efficiency, the HSD-PG-24 is also equipped with a removable crumb tray at the bottom, making cleaning quick and easy, allowing kitchen staff to reduce maintenance time and focus more on cooking.
|
Model |
HSD -P24 |

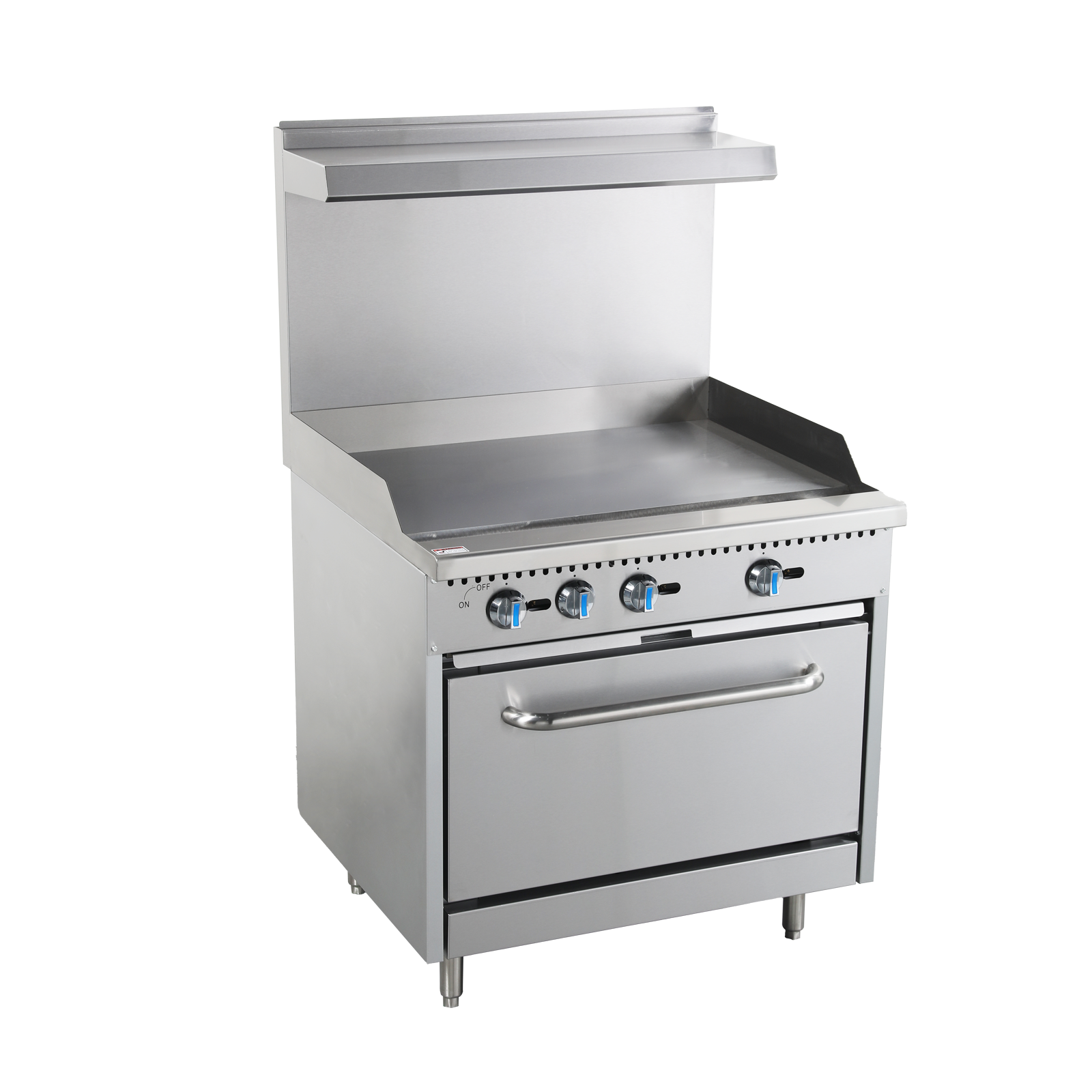

HSD-P36 |
| Burners | 2 |
3 |
|
Griddle Output |
30,000 BTU*2 | 30,000 BTU*3 |
|
Oven Burner Output |
30,000 BTU each | 30,000 BTU each |
| Total BTU Output | 90,000 BTU |
120,000 BTU |
|
Gas Inlet Pressure(NG)(LP) |
5'' W.C/10'' W.C | 5'' W.C/10'' W.C |
|
Griddle Orifice Size(NG)(LP) |
#52(Φ1.68mm) #56(Φ1.12mm) | #52(Φ1.68mm) #56(Φ1.12mm) |
| Oven Orifice Size(NG)(LP) | #33(Φ2.90mm) #52(Φ1.68mm) | #33(Φ2.90mm) #52(Φ1.68mm) |
| Exterior Dimension (W×D×H) | 24'' x 33.5'' x 60.6'' | 36'' x 33.5'' x 60.6'' |
|
N.W.(lbs) |
296 | 345 |
|
G.W.(lbs) |
363 | 398 |
