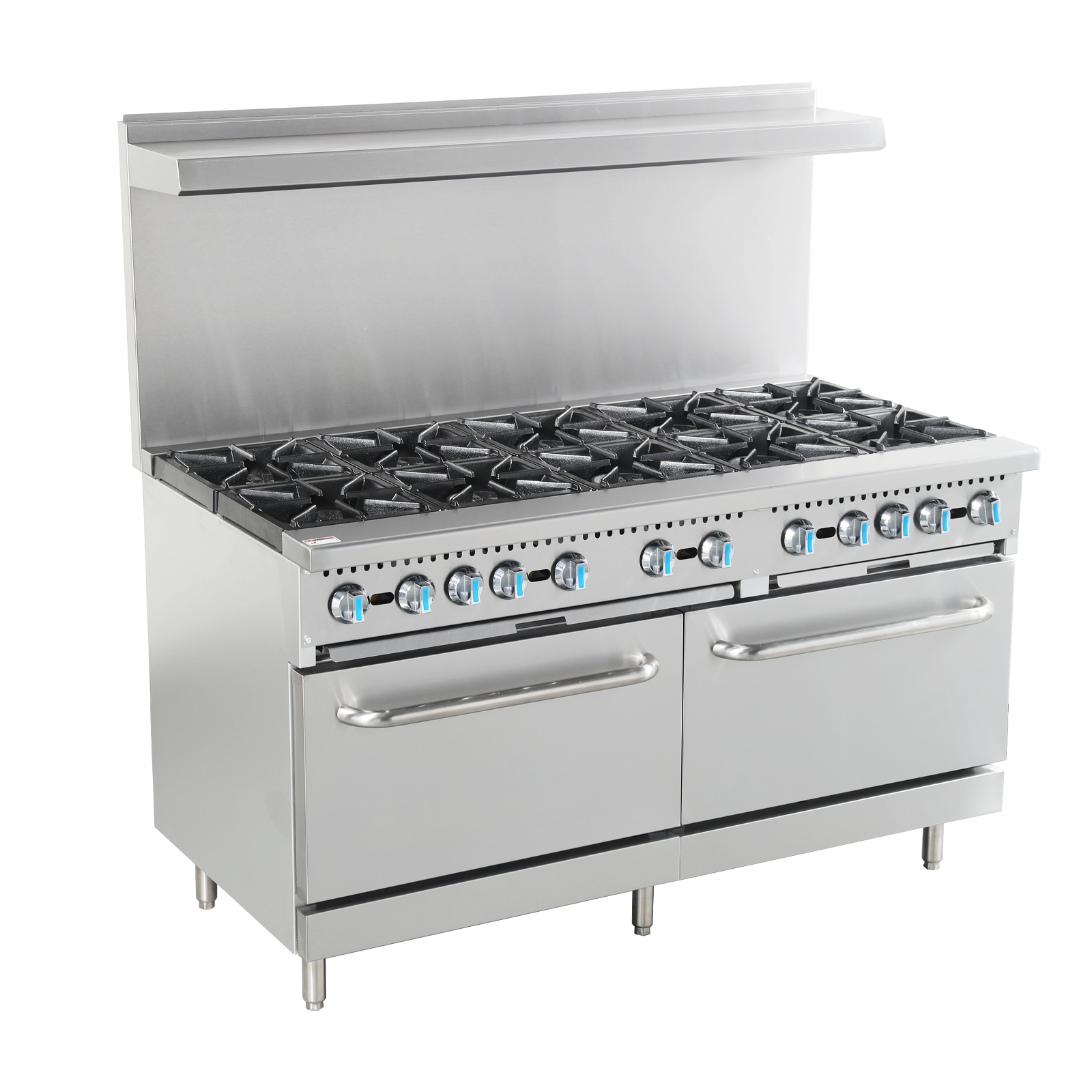

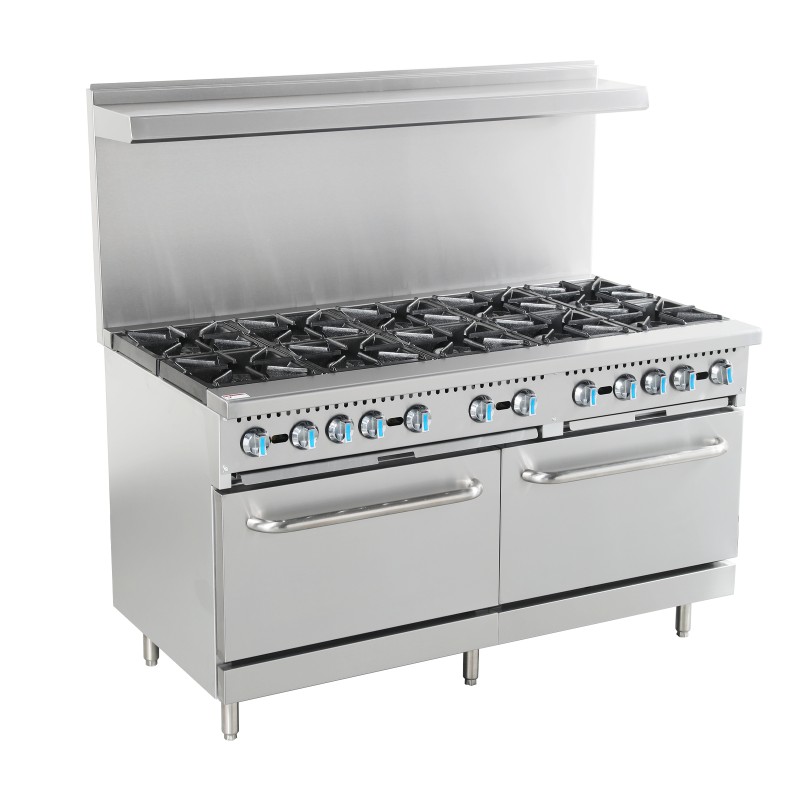

24-inch commercial gas cooktop with 10 burners and a standard oven, made of stainless steel, restaurant grade (with 6 wheels for mobility), total calorific value 360,000 BTU.
Brand: Unique
Product Number: HSD-B60
Number of Burners: 10
Product Dimensions: 1525*851*1540 mm / 60*33.5*60.6 inches
Energy Type: Gas and LPG
Specifications
| Specification | Details | Specification | Details |
|
Model |
HSD-B60 |
Product Name |
10-burner Gas Stove (with Oven) |
|
Number of Burners |
10 |
Burner Power (BTU) |
10 * 30000 BTU |
|
Oven Power (BTU) |
2 * 30000 BTU |
Material |
Stainless Steel |
|
Total Output Power |
360000 BTU |
Temperature |
250°F-500°F |
|
Product Size (mm/inch) |
1525*851*1540mm (60" x 33. 5" x 60. 6") |
Packing Size (mm/inch) |
1585*936*1145mm (62. 4" x 36. 85" x 45. 08") |
|
Net Weight |
282kg |
Applications |
Boiling, Stir-frying, Simmering, Baking |
This gas stove is designed for restaurants, hotels, canteens, and food service providers. It features ten independent high-power burners and two high-power gas ovens. The upper burners can perform multiple cooking operations simultaneously, such as stir-frying, frying, deep-frying, and stewing; the lower oven can meet the needs of baking, roasting, and keeping warm.
●Heavy duty gas burner with individual switch and thermostat.

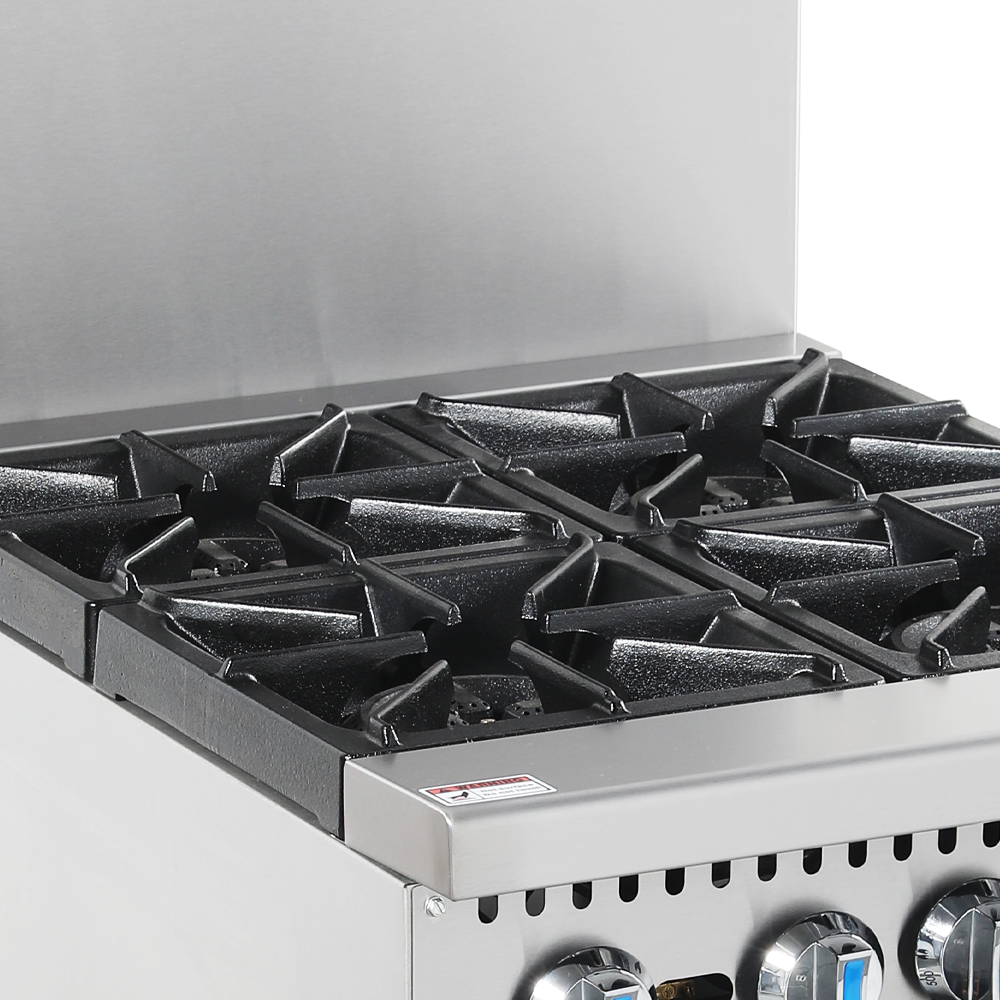

● Heavy duty removable cast iron grates(12"x12") for easy cleaning.
● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
● Stainless steel pilot for durability.
● Open top burners, each 30,000BTU/Hr
● Temperature range for oven from 250F-550 F
● Easy conversion from NG to LPG and vice versa,
● Optional with castors.
● Key components have CSAETL certificate.
This cooktop features 10 independent gas burners to meet the needs of various kitchens. Crafted from premium stainless steel, it is durable and ensures long-lasting, reliable performance. Choosing the HSD-B60 means you not only have exceptional cooking capabilities but also the durability and efficiency your busy kitchen demands.
The HSD-B60 features a large-capacity gas oven (integrated oven cavity) with a high-efficiency combustion system and precise temperature control technology, ensuring rapid and even heating. Whether baking pasta, pizza, or making bread and desserts, it handles it all with ease. The cooktop is made entirely of stainless steel (adjustable shelves), making it sturdy, durable, and easy to clean, ideal for medium to large-sized restaurants, hotels, and bakeries.
|
Model |

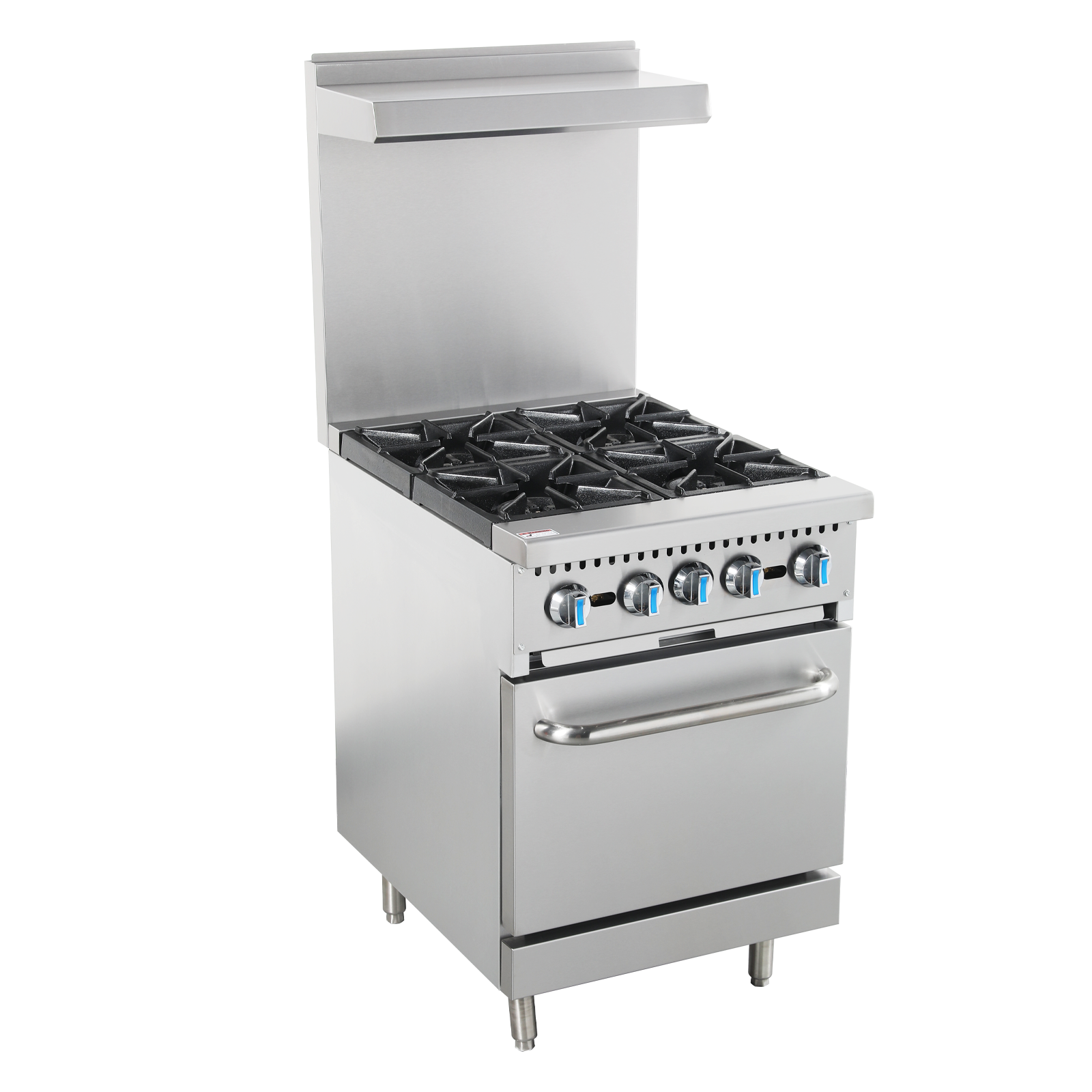

HSD-B24 |

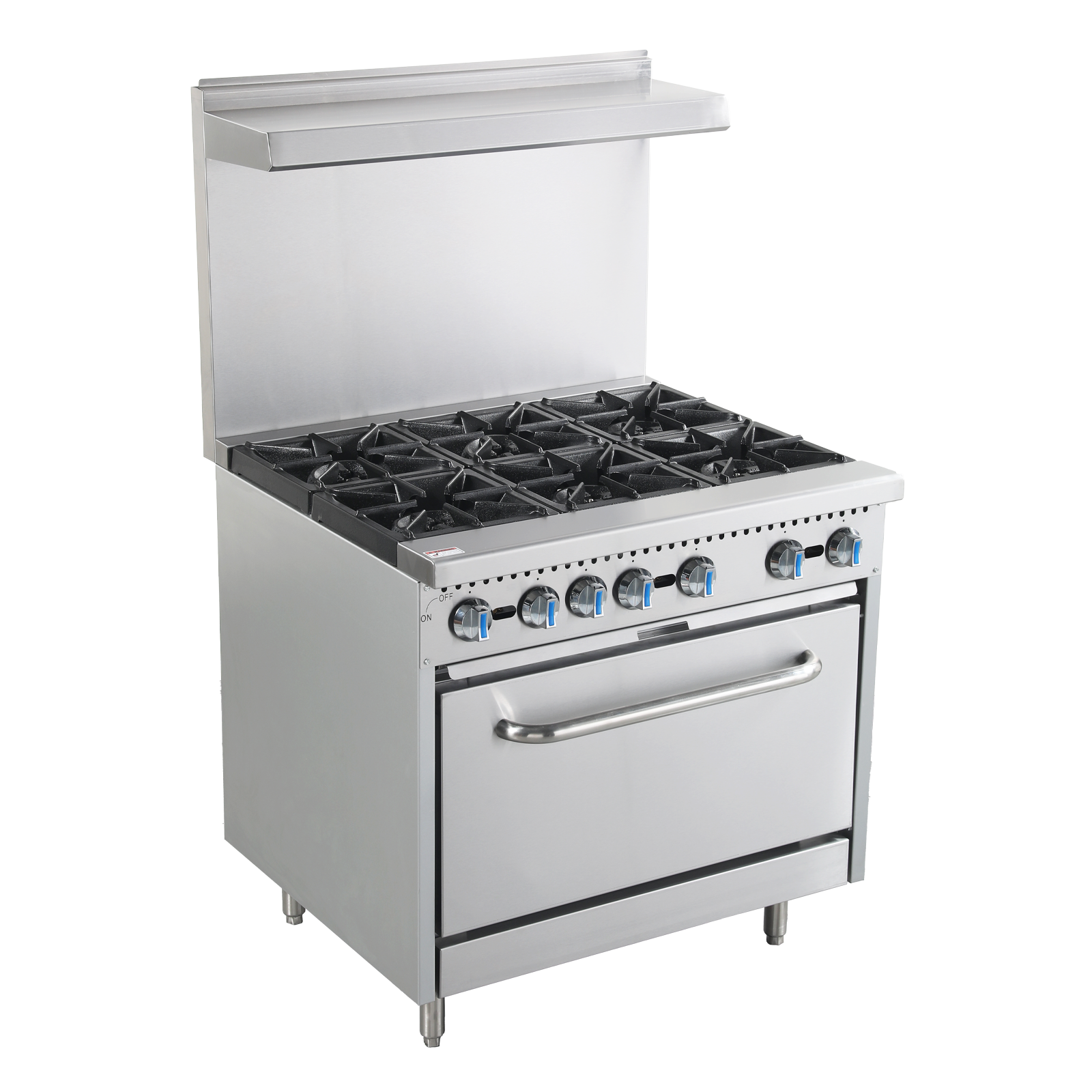

HSD-B36 |
HSD-B60 |
| TOP Burners |
4 |
6 |
6 |
|
OVEN BURNERS |
1 | 1 | 2 |
|
Power |
30,000 BTU*4 | 30,000 BUT*6 | 30,000 BUT*10 |
|
Oven Burner Output |
30,000 BUT | 30,000 BUT | 30,000 BUT*2 |
| Gas Supply | Naural Gas(NG) Liquid Propane(LP) |
Naural Gas(NG) Liquid Propane(LP) |
Naural Gas(NG) Liquid Propane(LP) |
|
Gas Inlet Pressure (NG/LP) |
5'' W.C. 10'' W.C. |
5'' W.C. 10'' W.C. |
5'' W.C. 10'' W.C. |
| Orifice Size (NG/LP) | #39(Φ2.53mm) #52(Φ1.68mm) |
#39(Φ2.53mm) #52(Φ1.68mm) |
#39(Φ2.53mm) #52(Φ1.68mm) |
|
Exterior Dimension (W×D×H) |
24'' x 32.5'' x 60.3'' | 36'' x 32.5'' x 60.3'' | 60'' x 32.5'' x 60.3'' |
|
N.W.(lbs) |
267 | 363 | 621 |
|
G.W.(lbs) |
335 | 450 | 727 |
