Commercial Baking Oven Manufacturer – Deck Ovens & Proofer Combinations

VOCOOK manufactures and supplies commercial baking ovens for bakeries, hotel kitchens, restaurants, equipment distributors and private-label brands. Our range includes electric deck ovens, gas deck ovens, convection baking ovens and selected oven-and-proofer combinations.

Choose equipment around your tray dimensions, batch quantities and proofing workflow. From a one-tray baking station to a multi-deck arrangement, you can compare different configurations within our commercial oven range and include multiple models in one purchasing enquiry.

Request a Baking Oven Quote

Compare Our Commercial Baking Oven Types

Equipment Type

Representative Models

Main Features

Typical Applications

Deck Baking Ovens

HEO-11, HEO-12, HEO-22, HEO-24, HEO-36, HEO-12A, HEO-24A; HGO-13A gas model

Different deck and tray arrangements; upper and lower heat controls

Bread and pastry batches in bakeries, hotel baking areas and restaurant kitchens

Oven-and-Proofer Combinations

HEO-210D, HEO-408D

Baking oven above a proofing cabinet, with separate loading capacities

Kitchens purchasing equipment for both dough proofing and baking

Convection Baking Ovens

HEA-5C, HEA-10C

Fan-assisted hot-air circulation and multi-level loading

Multi-tray baking where tray spacing and airflow form part of the production plan

Choose Your Deck and Tray Configuration

The number of decks describes the oven’s baking chambers. Tray capacity describes how many trays the listed arrangement accommodates. Compare both when planning batch loading.

Configuration

Models

Purchasing Focus

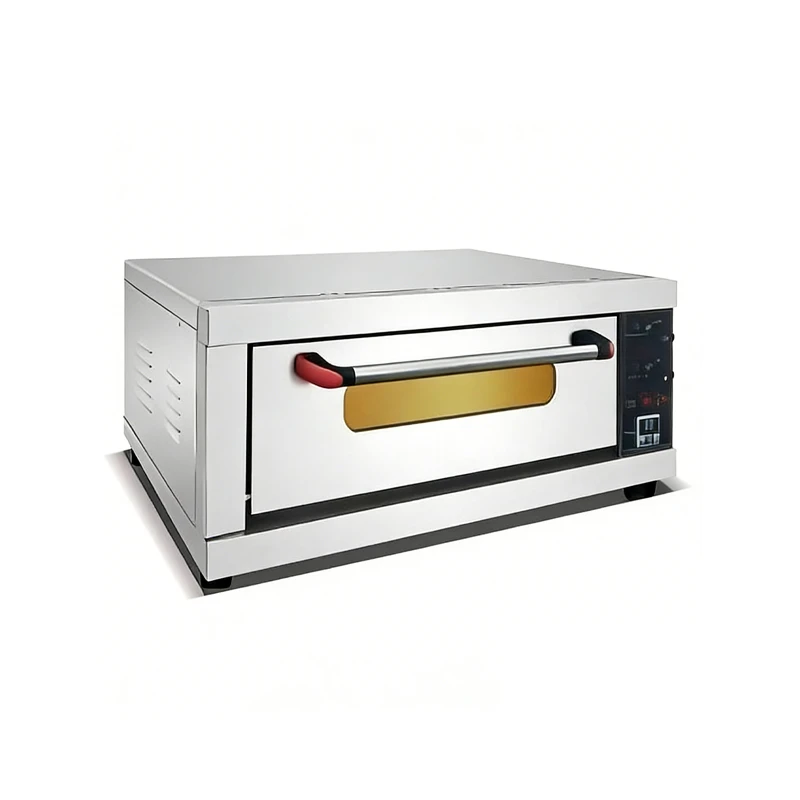

One deck, one tray

HEO-11

Small batches or a supplementary baking station

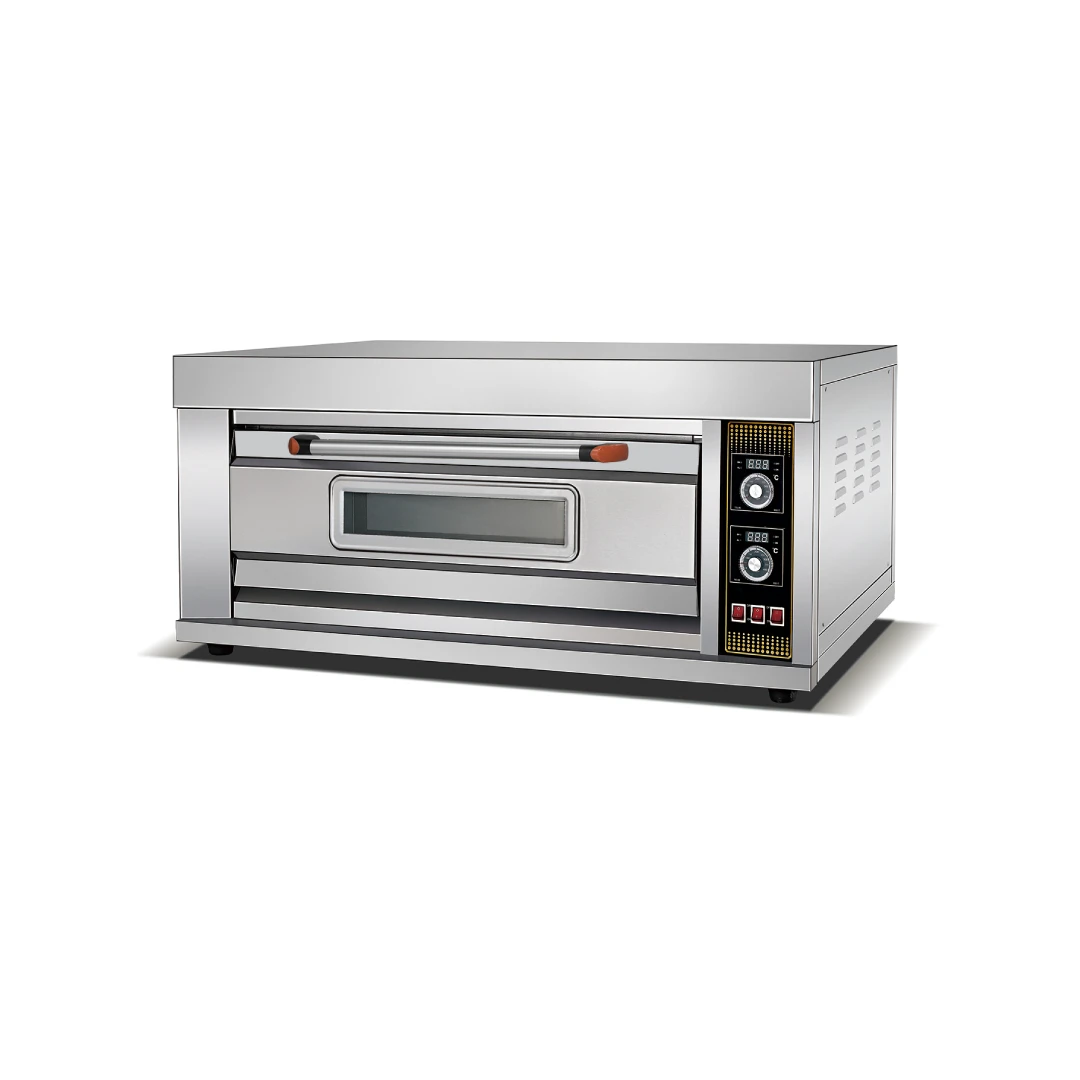

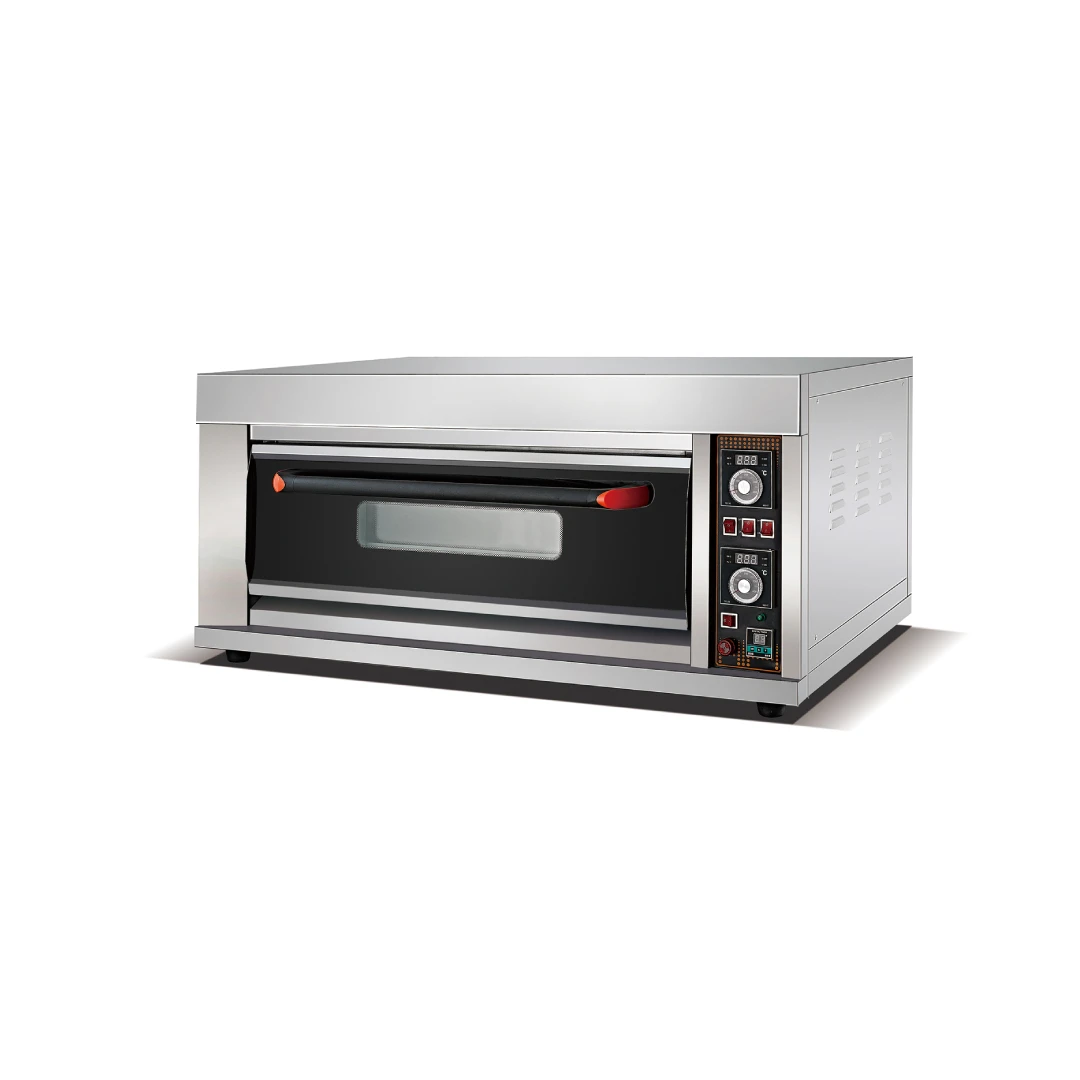

One deck, two trays

HEO-12, HEO-12A

Two-tray loading within one baking chamber

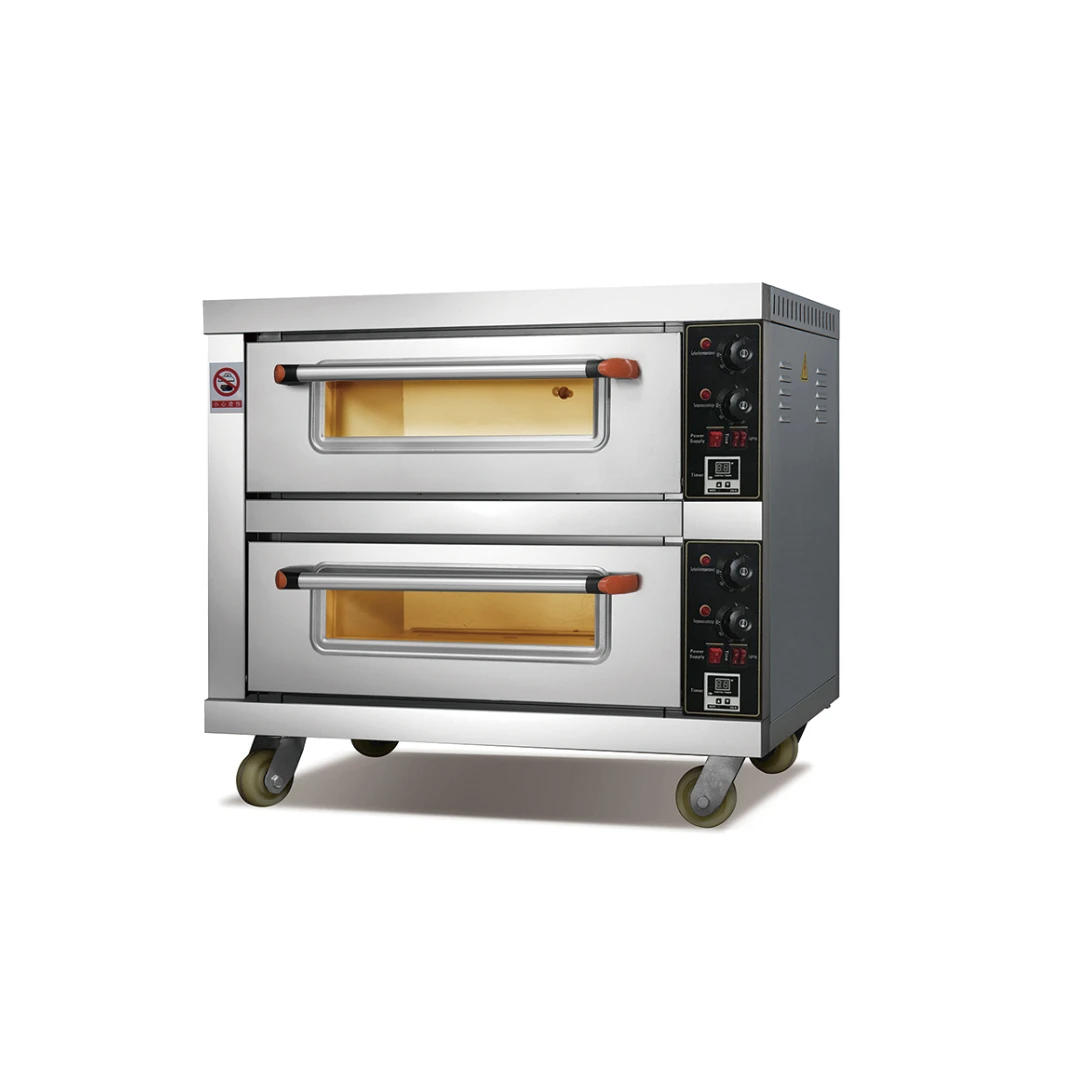

Two decks, two trays

HEO-22

Tray loading across two baking chambers

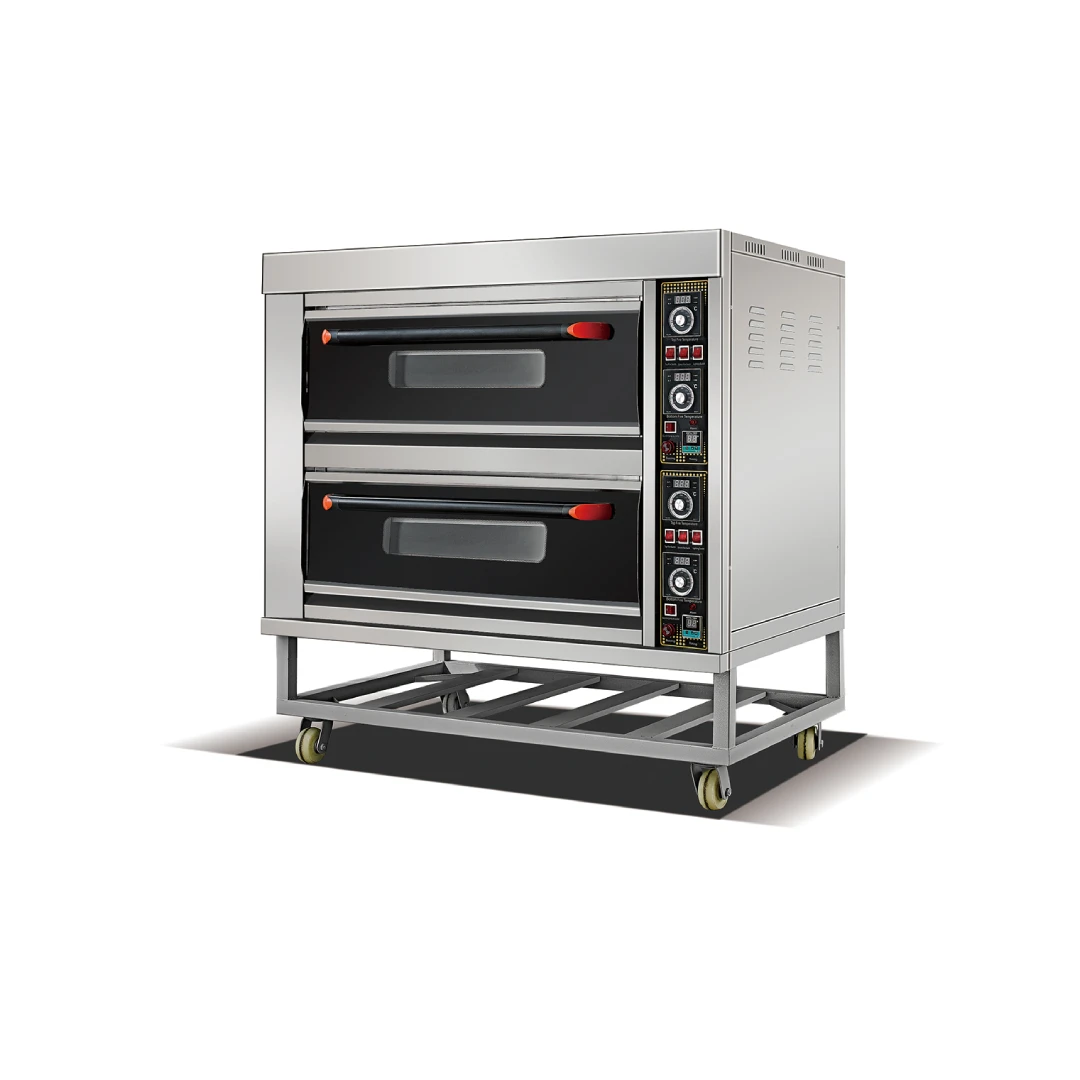

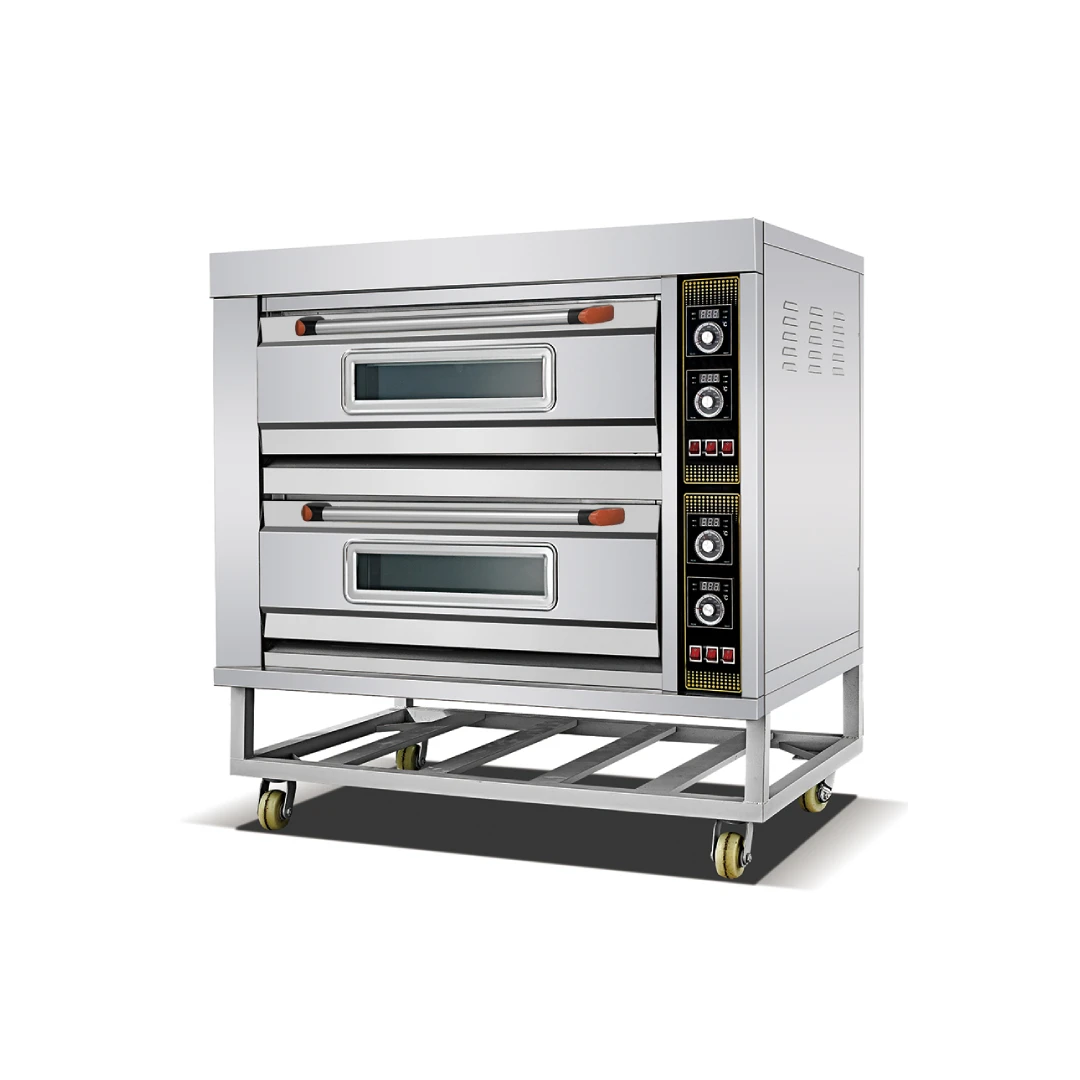

Two decks, four trays

HEO-24, HEO-24A

Two trays per deck for batch production

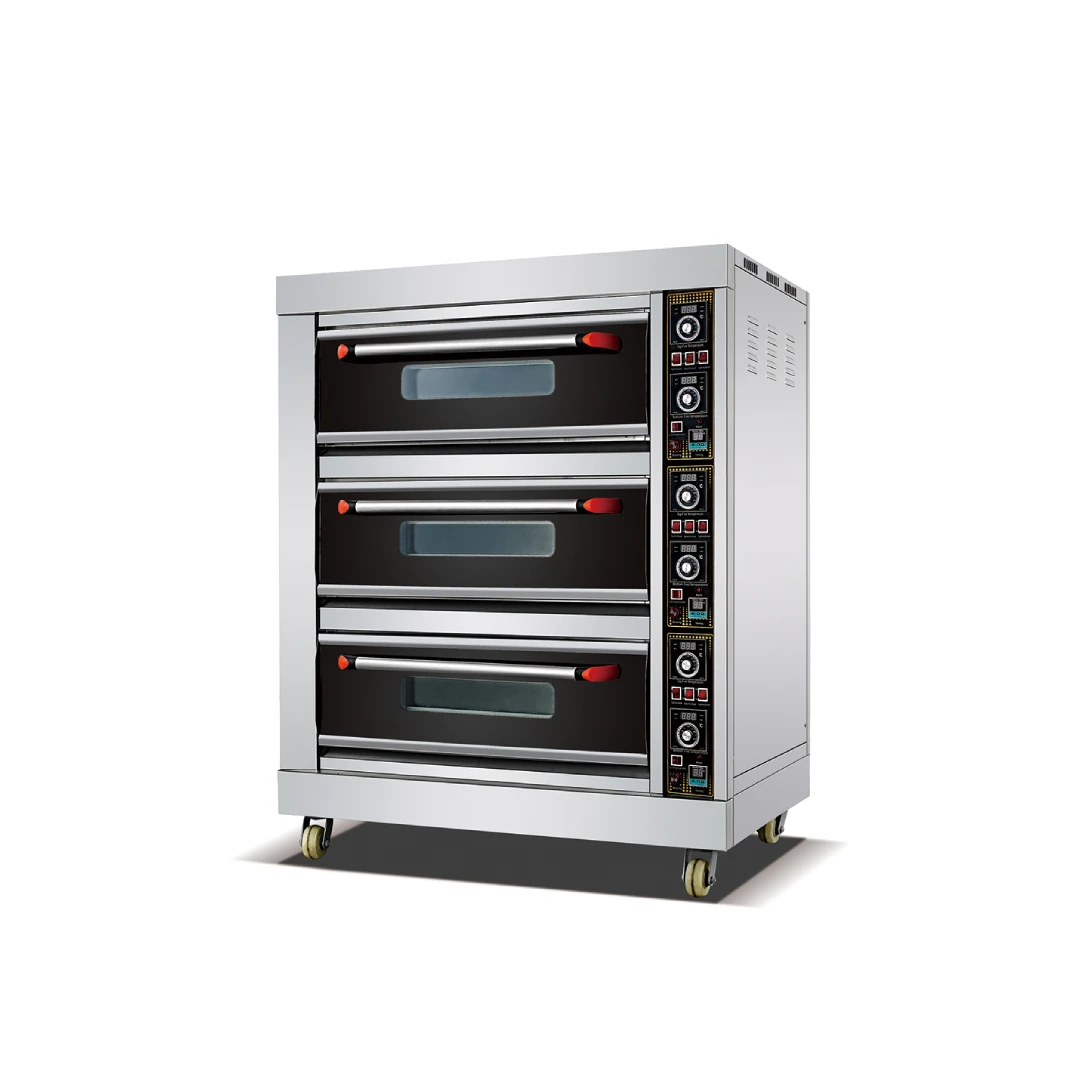

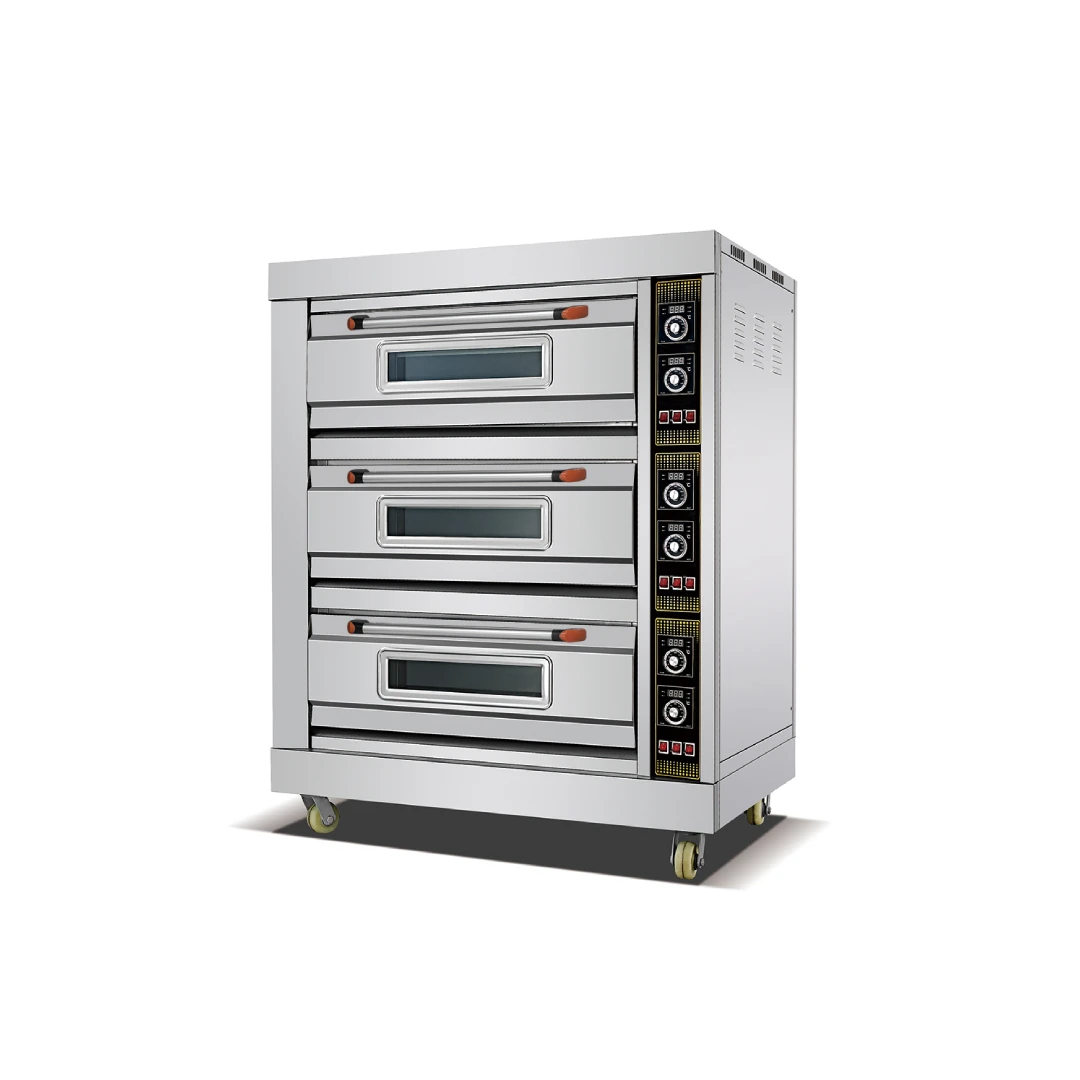

Three decks, six trays

HEO-36

Multiple loading positions across three decks

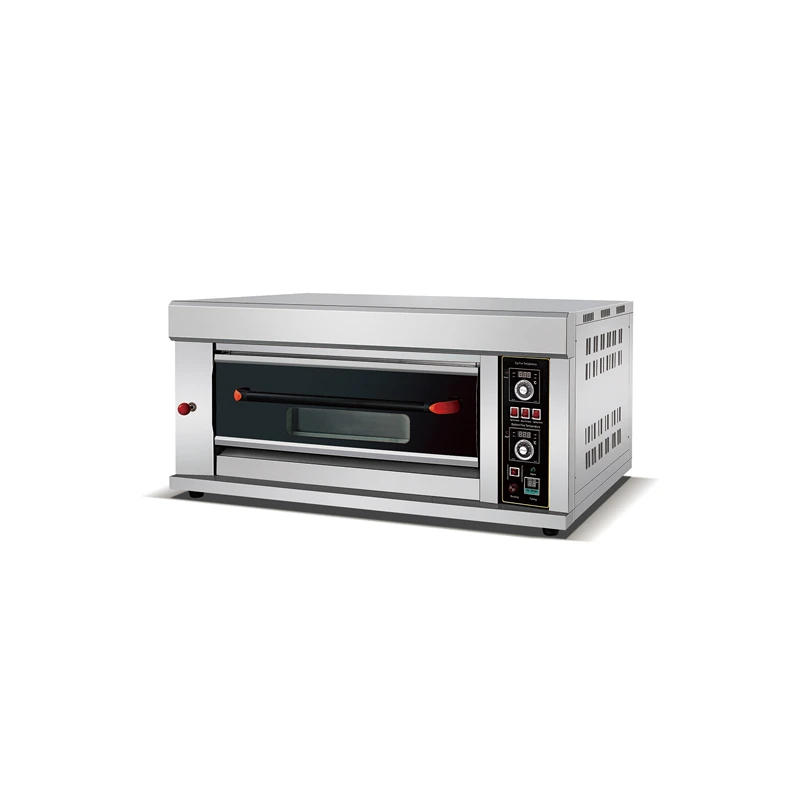

One deck, three trays, gas heating

HGO-13A

Three-tray loading in a single gas-heated chamber

More trays provide additional loading positions, but hourly output also depends on product size, baking time, loading and unloading, and the intervals between batches.

Baking Equipment for Different Production Workflows

Deck Ovens for Bread and Pastry Batches

Deck ovens organize baking across one or more chambers. The range includes upper and lower heat controls and glass viewing windows, allowing operators to set baking conditions and observe products during a batch.

For a restaurant adding a baking station, a compact configuration may provide the required loading space. Bakeries and hotel baking areas can compare multi-deck models around their tray quantities and production schedules.

Select the chamber arrangement together with the internal clearance required by your trays, moulds and products.

Oven-and-Proofer Combinations for Dough Preparation and Baking

HEO-210D and HEO-408D place a baking oven above a proofing cabinet, bringing two production stages into one equipment arrangement.

Model

Baking Section

Proofing Section

HEO-210D

One deck, two trays

Ten-tray proofing cabinet

HEO-408D

Two decks, four trays

Eight-tray proofing cabinet

These combinations include adjustable proofing humidity and base casters. They can suit bakeries and commercial kitchens purchasing both baking and proofing equipment.

Plan the two capacities separately: proofing trays are not additional baking positions. Trays must be transferred between the proofing cabinet and oven, and the production schedule should account for the time required at each stage.

Convection Ovens for Multi-Tray Baking

HEA-5C and HEA-10C provide fan-assisted baking options within this range. Compare them when your production plan calls for multiple loading levels and hot-air circulation.

Review tray dimensions, layer spacing and product height before selecting a configuration. For additional electric, gas and rotary models, view our commercial convection ovens.

Model Combinations for Distributors and Private Labels

Build a purchasing list around the customers you serve. Single-deck ovens can address smaller baking stations, multi-deck models provide additional loading arrangements, and oven-and-proofer combinations cover buyers purchasing equipment for two stages.

Submit your model mix, quantities and branding requirements together so the available configurations can be reviewed before quotation.

Commercial Baking Oven Specification Overview

The figures below summarize selected models. Ranges represent different equipment configurations, rather than adjustable specifications available on every oven.

Equipment Group

Models

Loading Configuration

Power & Supply

Overall Dimensions

Single-deck electric ovens

HEO-11, HEO-12A

One tray or two trays

3.2–6.6 kW; listed supply 220V/50Hz

880 × 580 × 350 mm or 1220 × 815 × 580 mm

Two-deck electric ovens

HEO-22, HEO-24A

Two trays or four trays

6.4–13.2 kW; listed supply 220V/50Hz

880 × 580 × 770 mm or 1220 × 815 × 1260 mm

Gas deck oven

HGO-13A

One deck, three trays

Confirm gas heat input and auxiliary electrical requirements

1760 × 890 × 650 mm

Oven-and-proofer combination

HEO-210D

Two baking trays + ten proofing trays

8.6 kW; 380V/50Hz

Confirm final overall dimensions

Oven-and-proofer combination

HEO-408D

Four baking trays + eight proofing trays

15.2 kW; 380V/50Hz

1220 × 820 × 1880 mm

Convection baking ovens

HEA-5C, HEA-10C

Multi-level loading; confirm usable tray arrangement

9–18 kW; model-specific 220V/380V configurations

1160 × 900 × 880 mm or 1160 × 900 × 1430 mm

Confirm final electrical supply, tray compatibility and included accessories for the exact model. For gas equipment, gas type, supply pressure, heat input and auxiliary electrical power should be specified separately.

Review the Baking and Proofing Layout

When comparing models, examine the parts of the equipment your team will use each day:

Baking chambers: Tray placement, door access and clearance above the product.

Controls: Upper and lower heat settings on the selected deck oven.​​​​​​​

Multi-deck layouts: Access for loading and unloading each chamber.​​​​​​​

Proofing combinations: Cabinet guides, loading positions and tray transfer between sections.​​​​​​​

Convection models: Tray guides, layer spacing and fan arrangement.

Product and control-panel photos help clarify the configuration. For a baking evaluation, identify the model, recipe, tray arrangement and test settings so the results can be assessed against your own production requirements.

Why Choose VOCOOK for Your Baking Oven Orders?

Commercial Kitchen Equipment Manufacturing Since 2005

VOCOOK’s manufacturer, Guangzhou Unique Catering Equipment Co., Limited, was established in 2005 and operates a 50,000 m² factory. An engineering team supports OEM/ODM projects for commercial kitchen equipment.

Deck, Convection and Proofing Equipment in One Enquiry

Compare equipment for different baking stations and production stages through one supplier. Include your preferred deck ovens, convection models and proofing combinations in a single model list for configuration review and quotation.

OEM/ODM and Production Checks

Submit your logo, packaging specifications and proposed configuration changes for review against the selected models.

Our quality control process includes sheet-metal processing checks, sample testing before mass production, testing before packing and random warehouse inspections. Model-specific inspection requirements and supporting documentation can be reviewed during order confirmation.

One-Year Warranty and Technical Video Support

VOCOOK baking ovens come with a one-year warranty and technical video support for operation and troubleshooting, subject to the applicable warranty terms and order agreement.

For service enquiries, provide the equipment model, nameplate photo and a description of the issue. Photos or video help our team identify the configuration and assist with troubleshooting. We can also help identify replacement components and confirm availability and associated costs.

View OEM/ODM & After-Sales Services

Information for Your Baking Oven Enquiry

Purchasing Item

Information to Provide

Models and quantities

Preferred models and quantities, or the configurations you are considering

Baked products

Product types, dimensions and intended baking conditions

Trays and batches

Tray dimensions, trays per batch and production schedule

Proofing requirements

Required proofing capacity and timing, if applicable

Installation and utilities

Available space, delivery access, electrical supply and applicable gas conditions

Destination market

Delivery country and required certification documents

Private-label requirements

Logo, packaging specifications and requested configuration changes

Frequently Asked Questions

Can I Arrange a Sample or Baking Evaluation Before a Bulk Order?

Submit your preferred model, sample quantity and delivery location to confirm availability, cost and preparation time. For a baking evaluation, describe the recipe, trays and test conditions so the available arrangements can be reviewed.

Are Baking Trays and Stands Included?

Included accessories depend on the model and order configuration. Use the quotation and itemized packing list to confirm trays, racks, stands and other supplied components.

Can Deck Ovens Be Stacked?

Stacking suitability depends on the exact models and supporting arrangement. A factory-built multi-deck oven should not be treated as confirmation that separate ovens can be stacked. Submit the proposed combination before planning installation.

Can You Provide Certification Documents for My Market?

Provide the selected model numbers, destination country and required document names. Confirm that the available certificates or test reports cover the exact equipment configuration before ordering.

Request Your Baking Oven Quote

Send VOCOOK your model list, quantities and destination market. If you have not selected a model, include your baked products, tray dimensions, batch requirements and whether proofing equipment is needed.

For distributor and private-label projects, attach your proposed product mix and branding requirements so we can review the configurations and prepare your quotation.
