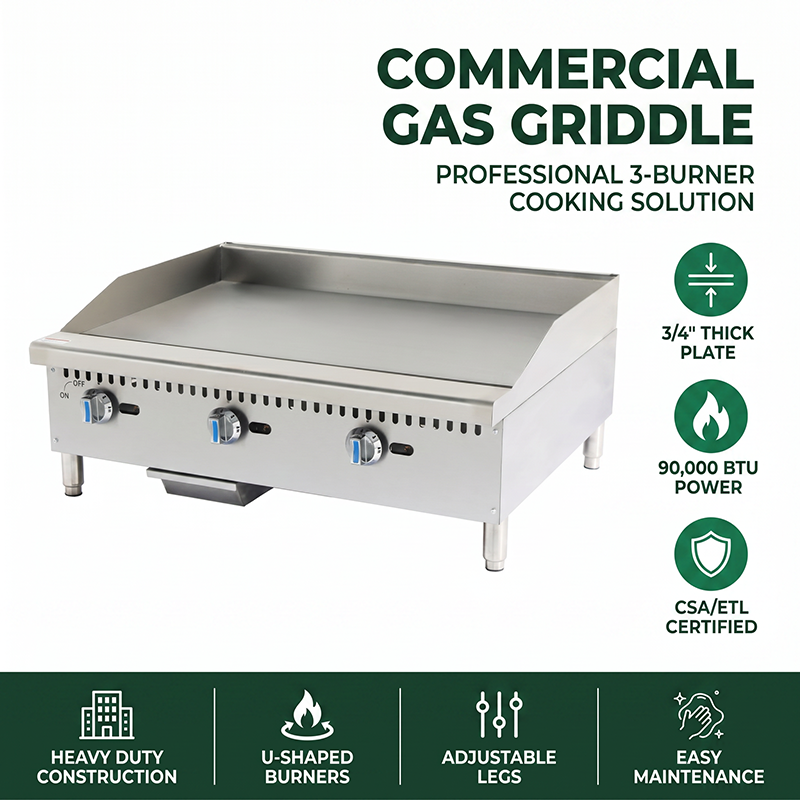

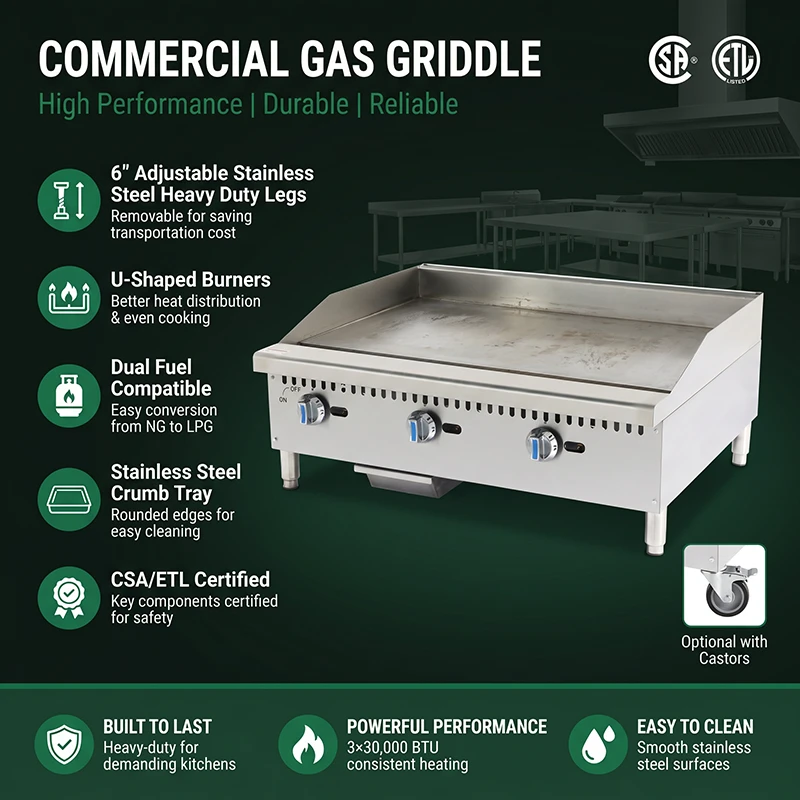

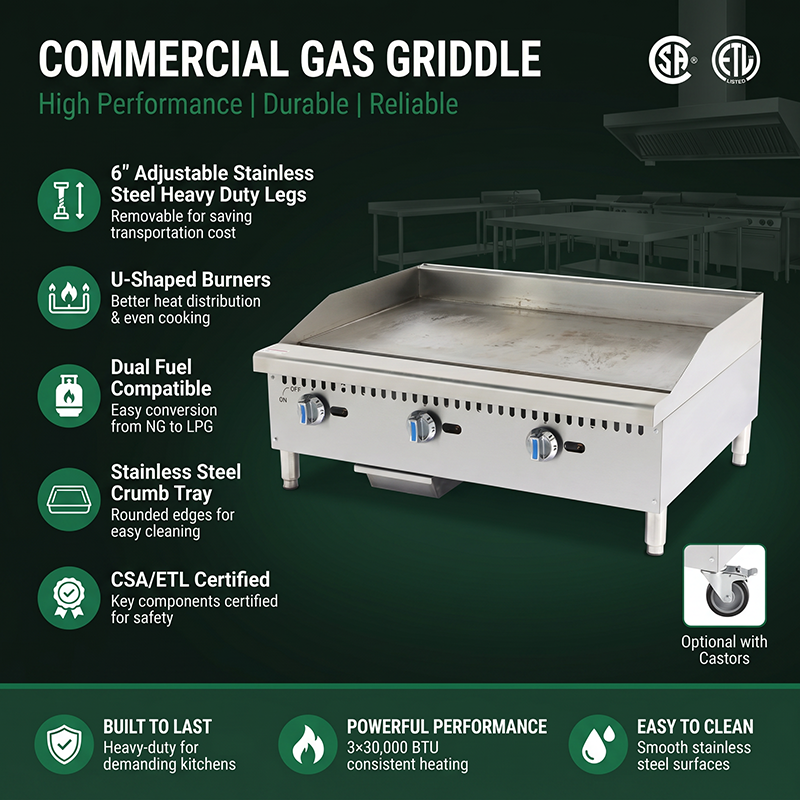

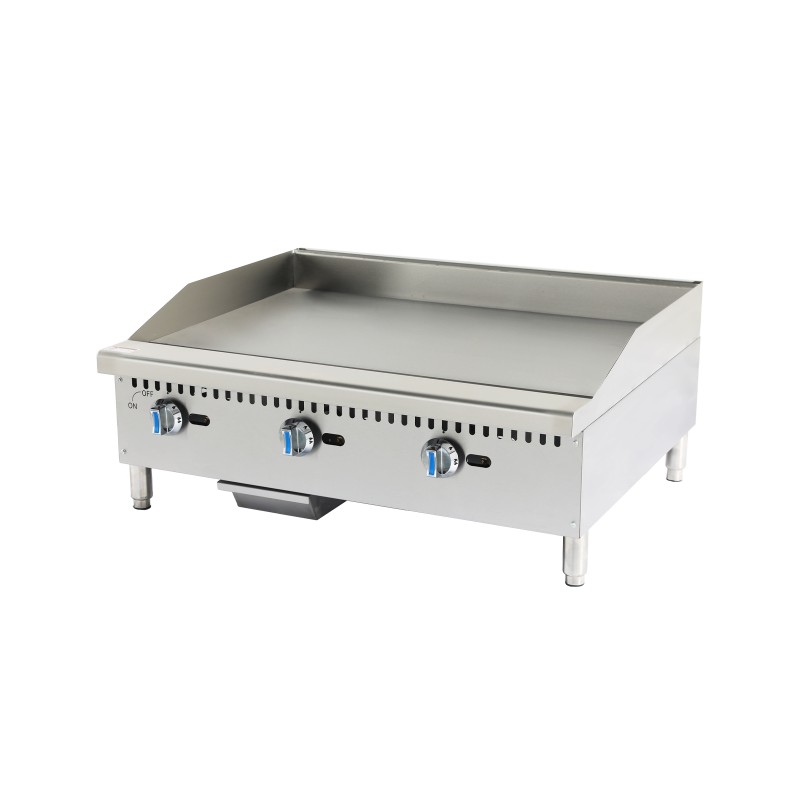

36-inch commercial stainless steel baking pan, 3/4-inch thick, U-shaped burner, adjustable legs, removable rear rack, supports natural gas/LPG conversion, CSA/ETL certified.
Brand: Unique
Model: HSD-PG-36
Number of burners: 3
Power: 90,000 BTU
Dimensions: 915 x 795 x 396 mm — 36" x 31.3" x 15.59"
Fuel type: Natural gas
Specifications
| Specification | Details | Specification | Details |
|
Model |
HSD-PG-36 |
Product Name |
Countertop Gas Griddle |
|
Material |
Stainless steel |
Number of burners |
3 |
|
Number of control knobs |
3 |
Power |
3 x 30,000 BTU |
|
Product dimensions (mm/inches) |
915 x 795 x 396 mm — 36" x 31.3" x 15.59" |
Packaging dimensions (mm/inches) |
975 x 855 x 455 mm — 33.39" x 33.66" x 17.91" |
|
Net weight (kg/lbs) |
125 kg / 275 lbs |
Gross weight (kg/lbs) |
151 kg / 332 lbs |
|
Application |
Grilling steaks |
This 36-inch countertop gas grill pan is designed for busy restaurant kitchens, hotels, and food trucks, providing a reliable high-volume cooking solution for the food service industry. Constructed from 3/4-inch thick heavy-duty stainless steel, the pan features two U-shaped burners with a total output of up to 90,000 BTU, ensuring durability and withstanding heavy daily use. The two burners can operate independently, allowing staff to simultaneously set different heating zones to meet the cooking needs of various dishes.
The pan is shipped with natural gas; LPG can also be supplied upon request. Casters are available as an option for moving the pan within the work area.
.

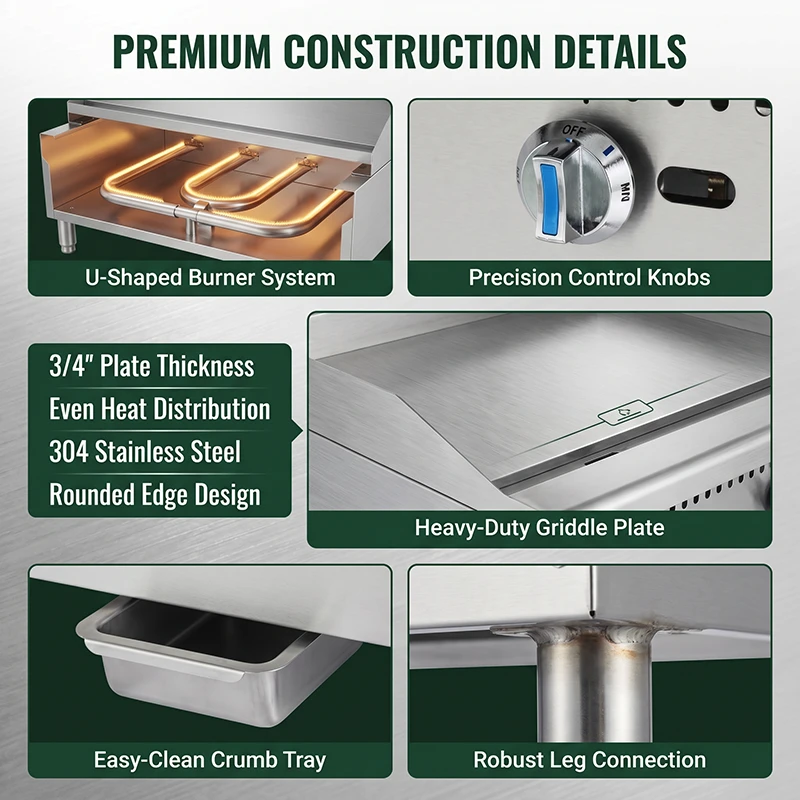

● 3/4" thickness griddle plate, U-shaped burner for better heat distribution.
● 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
●Stainless steel pilot for durability.
●Easy conversion from NG to LPG and vice versa.
●Stainless steel crumb tray with rounded edges.
●Optional with castors.
●Key components have CSA/ETL certificate.
Independent Temperature Control System
Commercial gas grill pans are ideal for busy kitchen environments, combining superior performance with ease of use. The independent temperature control system allows operators to precisely maintain the required cooking temperature, ensuring consistent cooking results.
Crumb Tray/Oil Dish
To improve kitchen efficiency, the HSD-PG-36 is also equipped with a removable crumb tray at the bottom, making cleaning quick and easy, allowing kitchen staff to reduce maintenance time and focus more on cooking.
|
Model |
HSD-PG-24 |
HSD-PG-36 |
HSD-PG-48 |
HSD-PG-60 |
| Burners |
2 |
3 |
4 | 5 |
|
Gas Supply |
60,000 BTU | 90,000 BTU | 120,000 BTU | 150,000 BTU |
| Manifold Pressure (NG/LP) | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C | 4'' W.C/10'' W.C |
| Exterior Dimensions (inch)(W×D×H) | 24"×30.8"×15.6" | 11.9"×30.6"×13. | 48"×30.8"×15.6" |
60"×30.8"×15.6" |
|
N.W.(lbs) |
198 | 275 | 352 |
443 |
|
G.W.(lbs) |
332 | 332 | 418 | 524 |
