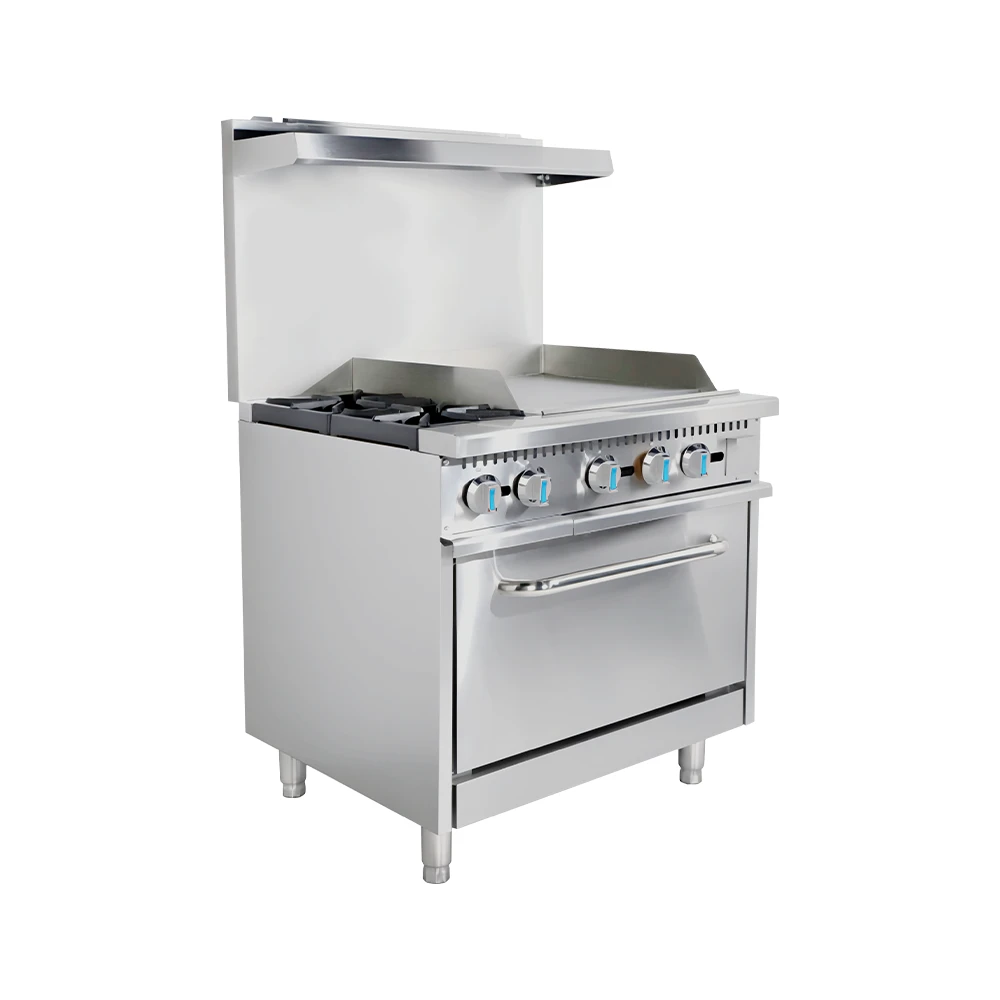

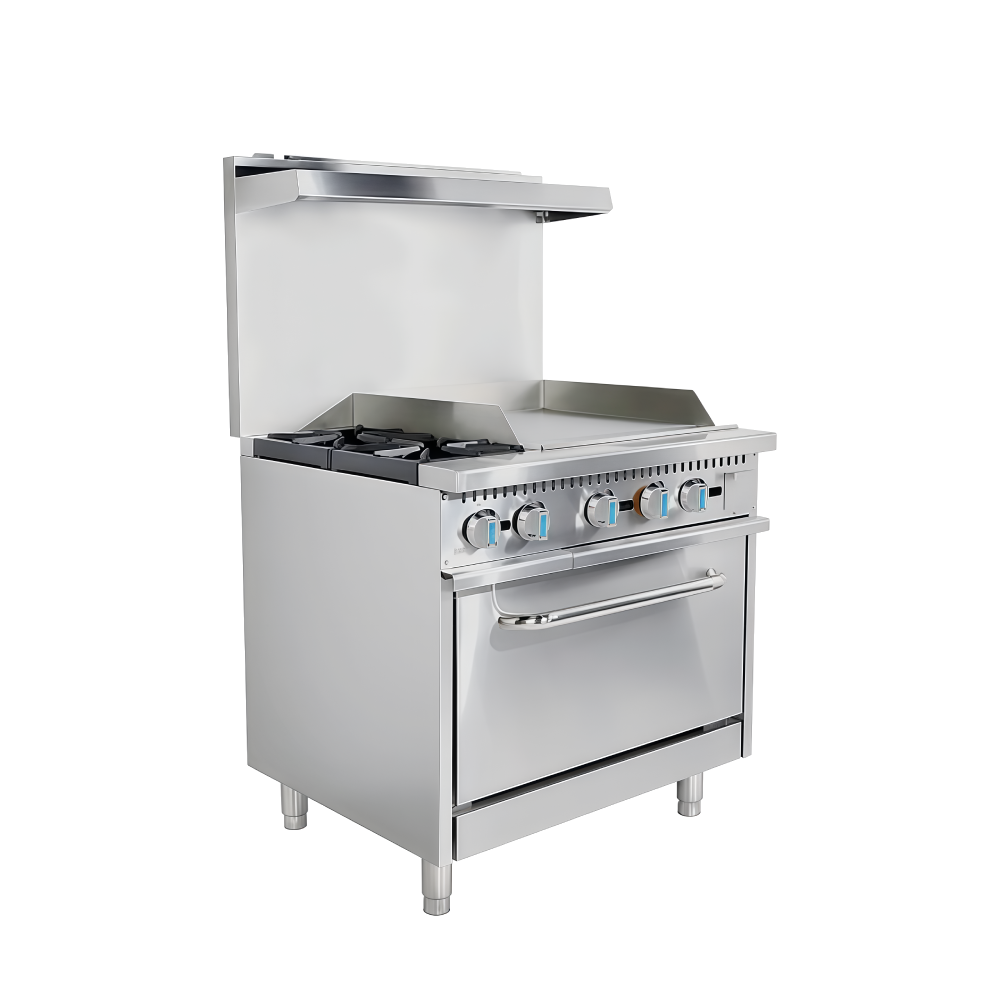

This is a gas-powered combination cooking unit designed for commercial kitchens in restaurants, cafés, and fast-food chains. It simultaneously meets a variety of cooking needs: open-flame cooking—featuring two gas burners suitable for stir-frying, stewing, and deep-frying; griddle cooking—equipped with a griddle on the right side, ideal for searing steaks, making pancakes, and preparing teppanyaki dishes; and baking and warming—featuring a large-capacity oven at the base for baking bread, roasting meat, and keeping food warm.
Brand: Unique
Model: HSD-B36-G24
Number of Burners: 2
Dimensions: 915 x 851 x 1540 mm / 36 x 33.5 x 60.6 inches
Fuel Type: Natural Gas and LPG
Specifications
| Specification | Details | Specification | Details |
|
Model |
HSD-B36-G24 |
Product Name |
2-Burner Gas Range (with 24-inch Griddle and Oven) |
|
Number of Burners |
2 |
Griddle Size |
12 inches |
|
Griddle Power |
2 x 30,000 BTU |
Burner Power (BTU) |
2 × 30,000 BTU |
|
Oven Power (BTU) |
1 × 30,000 BTU |
Material |
Stainless Steel |
|
Total Output Power |
150,000 BTU |
Temperature Range |
250°F - 550°F |
|
Product Dimensions (mm/inch) |
915 × 851 × 1540 mm (36" × 33. 5" × 60. 6") |
Packaging Dimensions (mm/inch) |
975 × 936 × 1145 mm (38. 38" × 36. 85" × 45. 08") |
|
Net Weight |
187 kg |
Applications |
Boiling, stir-frying, stewing, griddling, roasting/baking |

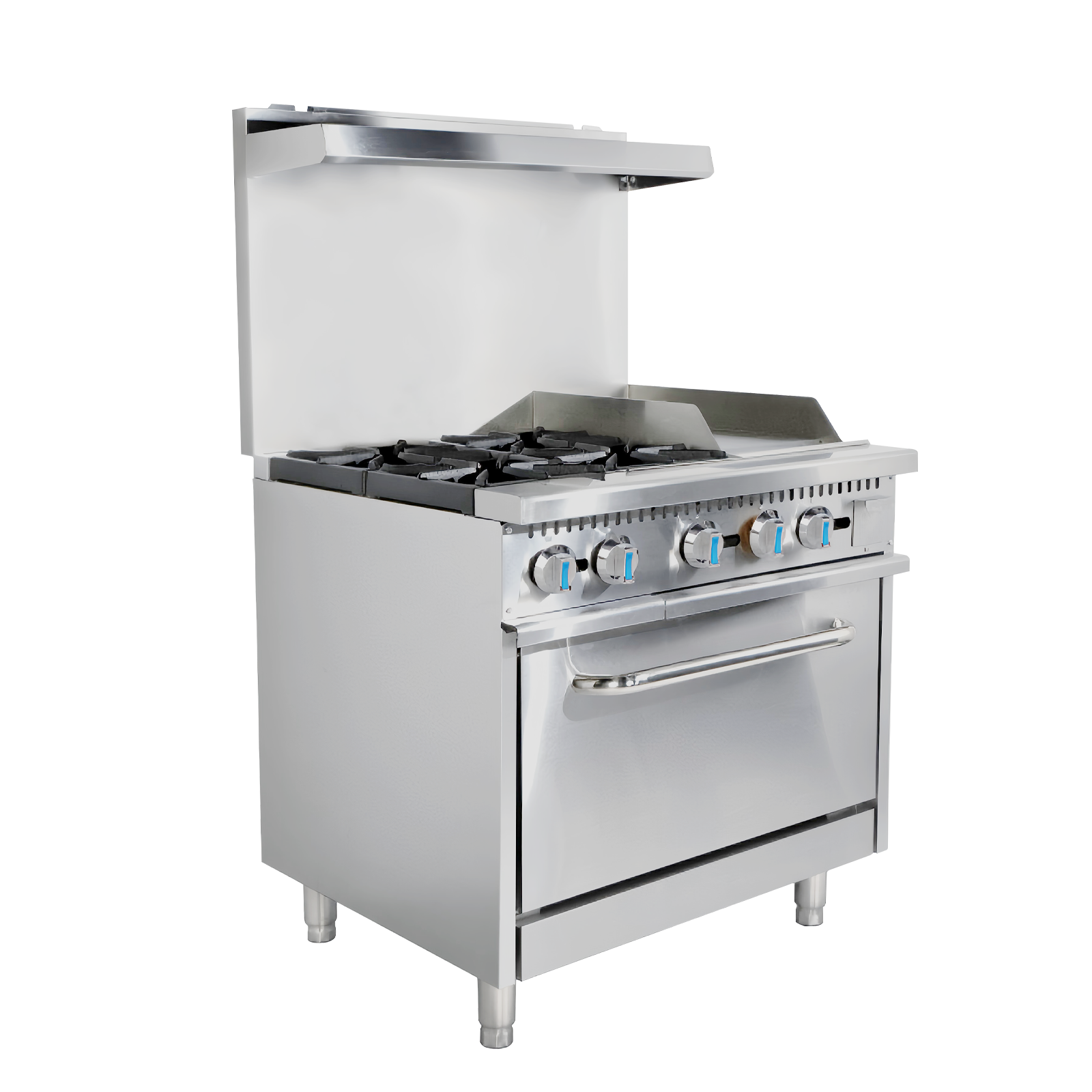

4-Burner Commercial Gas Range with 12-Inch Griddle and Oven
The HSD-B24-G12 is a commercial 4-burner gas cooktop equipped with a 12-inch skillet and a built-in oven. With a power output of up to 180,000 BTU, it is designed for restaurants, hotels, and other food service establishments. It is suitable for a variety of cooking methods including boiling, stir-frying, grilling, baking, and roasting.
● Heavy duty gas burner with individual switch and thermostat.
● Heavy duty removable cast iron grates(12"x12") for easy cleaning.
● Open top burners, each 30,000BTU/Hr
●3/4" thickness griddle plate, U-shaped burner.
●6 6" adjustable stainless steel heavy duty legs and back shelves can be removed for saving transportation cost.
●Stainless steel pilot for durability.
●Temperature range for oven from 250 F -550 F
●Easy conversion from NG to LPG and vice versa,
● Stainless steel crumb tray with rounded edges
●Optional with castors.
Two burners and a 24-inch flat skillet
Two powerful gas burners meet your various cooking needs, including stir-frying, stewing, braising, and boiling; the built-in 24-inch flat skillet is perfect for searing steaks, burgers, pancakes, patties, and other delicious dishes. The burners and skillet can be used simultaneously.

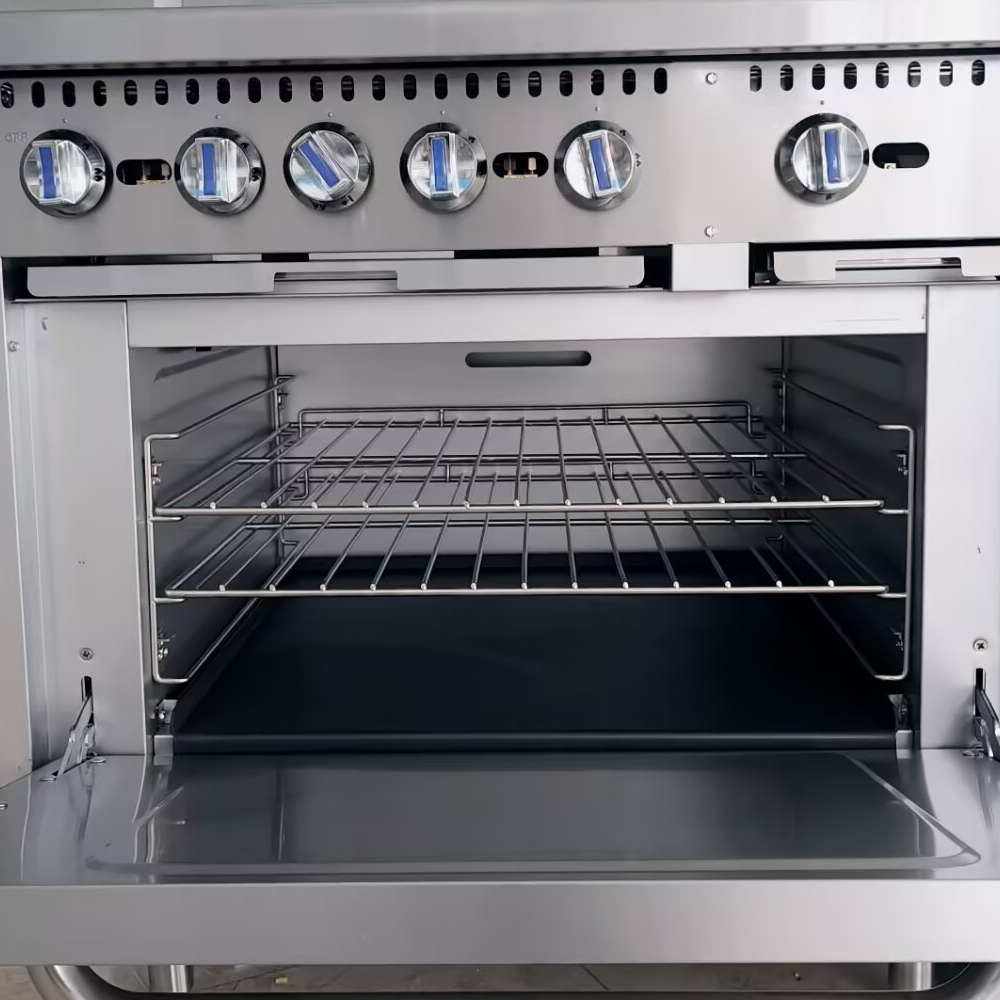

Gas Cooktop with Integrated Oven
The HSD-B36-G24 features a large-capacity gas oven (integrated oven cavity) with a high-efficiency combustion system and precise temperature control technology to ensure rapid and even heating. Whether baking pasta, pizza, or making bread and desserts, it handles it all with ease. The cooktop is made entirely of stainless steel (with adjustable shelves), making it sturdy, durable, and easy to clean, ideal for medium to large-sized restaurants, hotels, and bakeries.
|

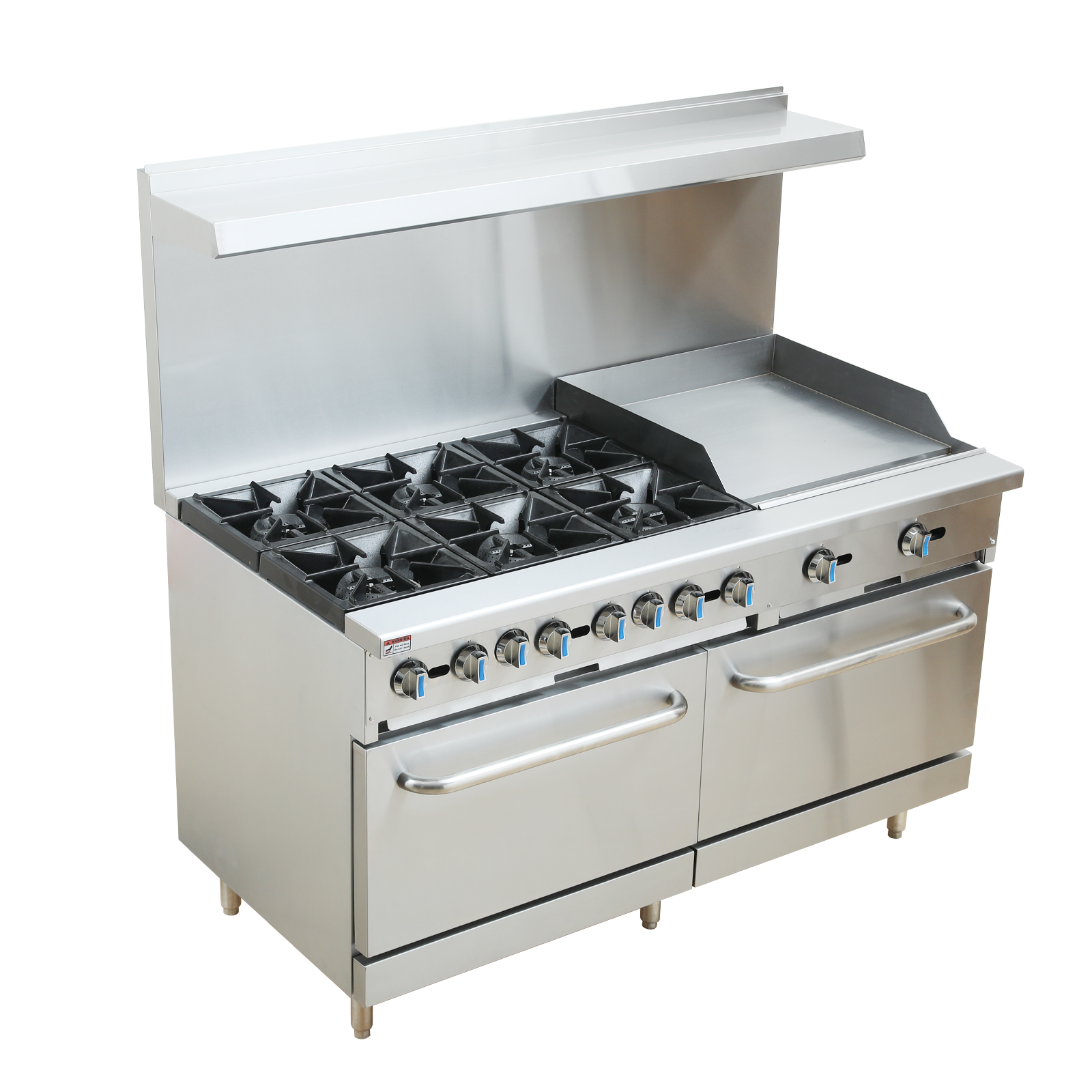

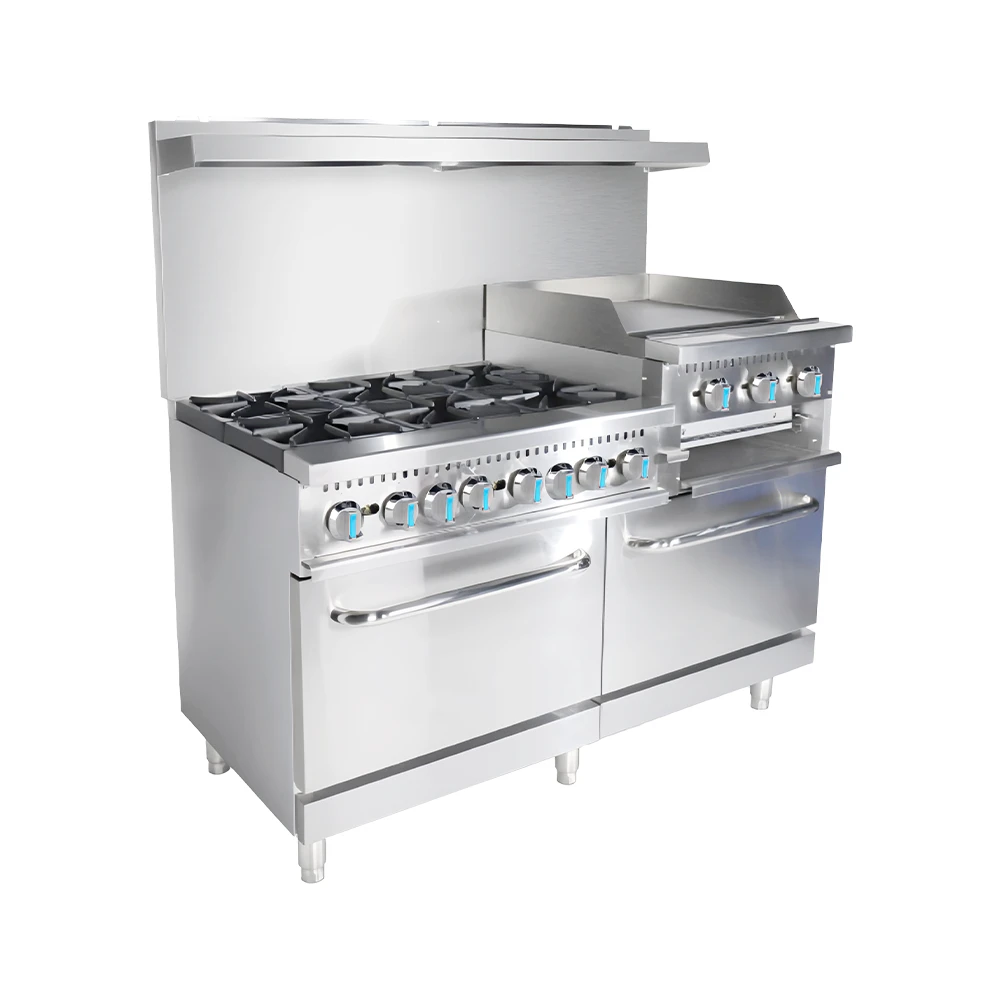

Model |
HSD-B36-G12 |
HSD-B36 G24 |
HSD-B60-G24 |
HSD-B60-G24S |
| TOP Burners |
4 |
2 |
6 |
/ |
|
OVEN BURNERS |
1 | 1 | 2 | / |
|
Power |
30,000 BTU*4 | 30,000 BUT*2 | 30,000 BUT*6 | / |
|
Oven Burner Output |
30,000 BUT | 30,000 BUT | 30,000 BUT*2 | / |
|
Griddle Power |
30,000 BUT | 30,000 BUT*2 | 30,000 BUT*2 | / |
| Gas Supply | Naural Gas(NG) Liquid Propane(LP) |
Naural Gas(NG) Liquid Propane(LP) |
Naural Gas(NG) Liquid Propane(LP) |
/ |
| Hot Plate Orifice Size (NG/LP) | #42(Φ2.40mm) #52(Φ1.68mm) | #42(Φ2.40mm) #52(Φ1.68mm) |
#42(Φ2.40mm) #52(Φ1.68mm) |
/ |
|
Griddle Orifice Size (NG/LP) |
#52(Φ1.68mm) #56(Φ1.12mm) | #52(Φ1.68mm) #56(Φ1.12mm) | #52(Φ1.68mm) #56(Φ1.12mm) | |
| ven Orifice Size (NG/LP) | #33(Φ2.90mm) #52(Φ1.68mm) | #33(Φ2.90mm) #52(Φ1.68mm) | #33(Φ2.90mm) #52(Φ1.68mm) |
/ |
|
Exterior Dimension (W×D×H) |
60'' x 32.5'' x 60.3'' | 60'' x 32.5'' x 60.3'' | 60'' x 32.5'' x 60.3'' | / |
|
N.W.(lbs) |
403 | 412 | 683 | / |
|
G.W.(lbs) |
474 | 487789 | 798 | / |
